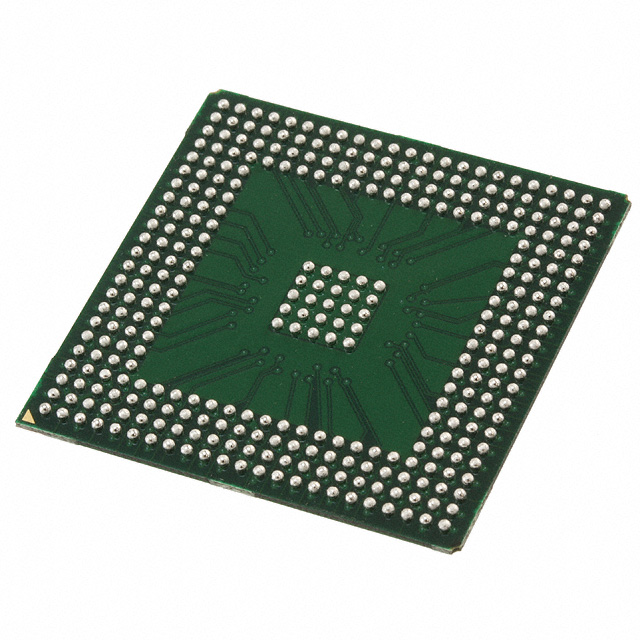

A54SX32A-BGG329I

IC FPGA 249 I/O 329BGA
Part Description

SX-A Field Programmable Gate Array (FPGA) IC 249 329-BBGA

Quantity 507 Available (as of October 8, 2026)
Product CategoryField Programmable Gate Array (FPGA)
ManufacturerMicrochip Technology
Manufacturing StatusActive
Manufacturer Standard Lead Time20 Weeks
Datasheet

Specifications & Environmental

Device Package329-PBGA (31x31)GradeIndustrialOperating Temperature-40°C – 85°C
Package / Case329-BBGANumber of I/O249Voltage2.25 V - 5.25 V
Mounting MethodSurface MountRoHS ComplianceROHS3 CompliantREACH ComplianceREACH Unaffected
Moisture Sensitivity Level3 (168 Hours)Number of LABs/CLBs2880Number of Logic Elements/Cells2880
Number of Gates48000ECCN3A991DHTS Code8542.39.0001
QualificationN/A

Overview of A54SX32A-BGG329I – SX-A Field Programmable Gate Array (FPGA) IC 249 329-BBGA

The A54SX32A-BGG329I is a nonvolatile SX-A family FPGA in a 329-ball BGA package designed for programmable logic implementations requiring a high I/O count and mixed-voltage operation. This device provides 48,000 system gates and 2,880 logic elements with up to 249 user-programmable I/Os, offering deterministic timing and in-system diagnostic capabilities.

Designed for mixed-voltage environments, the device supports a 2.25 V to 5.25 V supply range and an industrial operating temperature range of -40 °C to 85 °C. Family-level performance figures include up to 250 MHz system performance and up to 350 MHz internal performance.

Key Features

  • Core Capacity and Performance 48,000 system gates and 2,880 logic elements provide programmable resources; family-level performance is specified up to 250 MHz system and up to 350 MHz internal operation.
  • I/O and Mixed-Voltage Support Up to 249 user I/Os with configurable I/O support for 3.3 V / 5 V PCI, 5 V TTL, 3.3 V LVTTL and 2.5 V LVCMOS2. Supports 2.5 V, 3.3 V and 5 V mixed-voltage operation with 5 V input tolerance and 5 V drive strength.
  • Nonvolatile Single-Chip Architecture Nonvolatile, single-chip solution eliminates the need for external configuration memory and supports in-system programmability and verification.
  • Power and Hot-Swap Friendly Power-up/power-down friendly operation (no sequencing required) and hot-swap compliant I/Os. Configurable weak pull-up/pull-down options at power-up and individual output slew-rate control.
  • Security and Testability Actel Secure Programming Technology with FuseLock to protect design IP and support for IEEE 1149.1 boundary-scan (JTAG) testing. In-system diagnostic and verification capability with Silicon Explorer II.
  • Package and Environmental 329-ball BGA (supplier package 329-PBGA, 31×31) surface-mount device, RoHS compliant, industrial grade with an operating temperature range of -40 °C to 85 °C.
  • Supply Voltage Range Wide supply tolerance from 2.25 V to 5.25 V for flexible system integration.
  • Embedded Memory Product specification lists no dedicated on-chip RAM bits (Total RAM Bits: 0), enabling deterministic logic resource planning based on logic elements and flip-flop resources.

Typical Applications

  • PCI-based Systems — 66 MHz PCI compliance and configurable 3.3 V/5 V PCI I/O support make the device suitable for PCI add-in logic and bus-bridge functions.
  • Mixed-Voltage Interface and Level Translation — Mixed-voltage I/O support and wide supply range enable bridging and interface logic between 2.5 V, 3.3 V and 5 V domains.
  • Industrial Control and Embedded Logic — Industrial-grade temperature rating (-40 °C to 85 °C) and high I/O density support control, automation and embedded processing tasks requiring reliable field operation.
  • Secure and Testable Programmable Logic — Built-in FuseLock security and IEEE 1149.1 boundary-scan support address requirements for IP protection and board-level testability.

Unique Advantages

  • Nonvolatile, Single-Chip Solution: Eliminates external configuration memory and simplifies system boot sequencing.
  • High I/O Density: Up to 249 user-programmable I/Os in a compact 329-ball BGA package enables dense interface designs.
  • Wide Supply and Mixed-Voltage Operation: 2.25 V to 5.25 V supply range with 5 V-tolerant I/Os for flexible integration across voltage domains.
  • Industrial Temperature Range: Rated for -40 °C to 85 °C to meet industrial deployment requirements.
  • Security and In-System Verification: FuseLock programming technology and Silicon Explorer II support protect IP and enable in-system diagnostics and verification.
  • Deterministic Timing and Resource Utilization: SX-A family features such as user-controllable timing and resource utilization help in predictable design closure and pin locking.

Why Choose A54SX32A-BGG329I?

The A54SX32A-BGG329I delivers a balanced mix of programmable capacity, I/O density and mixed-voltage flexibility in a nonvolatile single-chip FPGA. With 48,000 system gates, 2,880 logic elements and up to 249 I/Os in a 329-ball BGA footprint, it is suited to designs that require deterministic timing, on-board configurability and built-in test and security features.

Its industrial temperature rating, wide supply range and hot-swap/power-sequencing tolerant I/Os make it appropriate for robust embedded and industrial applications. Built-in boundary-scan, in-system diagnostics and secure programming features support long-term maintainability and IP protection throughout the product lifecycle.
