A54SX32A-BGG329M
| Part Description |
SX-A Field Programmable Gate Array (FPGA) IC 249 329-BBGA |
|---|---|
| Quantity | 710 Available (as of October 8, 2026) |
| Product Category | Field Programmable Gate Array (FPGA) |
|---|---|
| Manufacturer | Microchip Technology |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 20 Weeks |
| Datasheet |
Specifications & Environmental
| Device Package | 329-PBGA (31x31) | Grade | Military | Operating Temperature | -55°C – 125°C | ||
|---|---|---|---|---|---|---|---|
| Package / Case | 329-BBGA | Number of I/O | 249 | Voltage | 2.25 V - 5.25 V | ||
| Mounting Method | Surface Mount | RoHS Compliance | ROHS3 Compliant | REACH Compliance | REACH Unaffected | ||
| Moisture Sensitivity Level | 3 (168 Hours) | Number of LABs/CLBs | 2880 | Number of Logic Elements/Cells | 2880 | ||
| Number of Gates | 48000 | ECCN | 3A001A2C | HTS Code | 8542.39.0001 | ||
| Qualification | N/A |
Overview of A54SX32A-BGG329M – SX-A Field Programmable Gate Array (FPGA) IC 249 329-BBGA
The A54SX32A-BGG329M is a military-grade SX-A family FPGA offering deterministic, nonvolatile single-chip programmability for applications that require robust operation across a wide temperature range. Built on the SX-A architecture, it provides a quantified logic fabric with 48,000 system gates and 2,880 logic elements, alongside 249 user I/Os for complex system integration.
Engineered for mixed-voltage environments and reliable deployment in harsh conditions, this device combines family-level performance characteristics with packaging and thermal ratings suited for aerospace, defense, and other mission-critical systems.
Key Features
- Core Logic 48,000 system gates and 2,880 logic elements provide defined capacity for custom digital logic and control functions.
- User I/O and I/O Capabilities 249 user-programmable I/O pins support mixed-voltage operation and flexible interfacing across multiple domains.
- Performance (SX-A family) Family-level performance indicators include up to 250 MHz system performance and up to 350 MHz internal performance.
- Voltage and Mixed-Voltage Support Operates from 2.25 V to 5.25 V and supports mixed-voltage operation with 5 V input tolerance and configurable I/O voltage options.
- Nonvolatile, Single-Chip Solution SX-A family architecture provides nonvolatile configuration in a single-chip FPGA, simplifying system configuration and boot behavior.

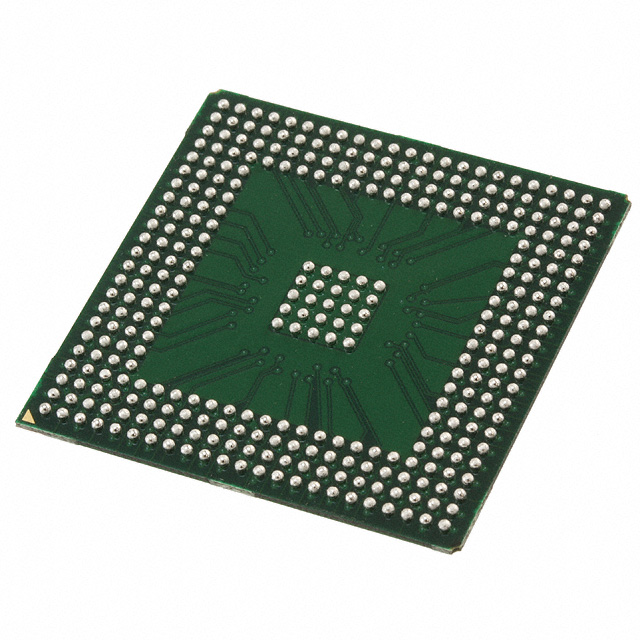

- Packaging and Mounting 329-ball BGA package (supplier package: 329-PBGA, 31×31), surface-mount for compact board-level integration.
- Temperature and Grade Military temperature grade with operating range from −55 °C to 125 °C for deployment in extreme environments.
- Design and Test Features (SX-A family) Includes hot-swap compliant I/Os, power-up/power-down friendly operation, and IEEE 1149.1 (JTAG) boundary-scan testing for in-system verification.
- Security and Programming (SX-A family) Family features include secure programming technology to protect design IP and in-system diagnostic capability.
- Compliance RoHS-compliant packaging (lead-free option indicated by part suffix).
Typical Applications
- Aerospace and Defense Systems High-reliability FPGA logic and military temperature rating make the device suitable for mission-critical control, signal processing, and interface tasks.
- Industrial Controls Mixed-voltage I/O and deterministic timing support control algorithms, motor interfaces, and real-time automation subsystems.
- Embedded System Integration Use as a configurable logic hub for sensor aggregation, protocol bridging, and custom peripheral implementation where board space is constrained.
- Secure and Verified Systems Nonvolatile single-chip configuration and built-in programming protections support secure FPGA deployment and field configurability.
Unique Advantages
- Military-grade thermal endurance: Operates from −55 °C to 125 °C, enabling deployment in extreme environmental conditions.
- Defined logic capacity: 48,000 system gates and 2,880 logic elements give clear resource planning for deterministic designs.
- Flexible I/O and voltage tolerance: 249 user I/Os and 2.25 V–5.25 V supply range support mixed-voltage systems and 5 V-tolerant interfaces.
- Nonvolatile single-chip architecture: Eliminates the need for external configuration memory, simplifying system boot and security design.
- Compact, surface-mount BGA packaging: 329-ball PBGA (31×31) reduces board footprint while providing high I/O density for complex systems.
- Built-in testability and security: JTAG boundary-scan and family-level secure programming features enable in-system verification and IP protection.
Why Choose A54SX32A-BGG329M?
The A54SX32A-BGG329M positions itself as a deterministic, nonvolatile FPGA option for designs requiring clearly defined logic resources, high I/O count, and military temperature capability. Its SX-A family characteristics—combined with flexible voltage support and secure programming—make it well suited to embedded systems that demand robustness, in-field configurability, and compact packaging.
Design teams and procurement groups that need a proven FPGA footprint with specified logic capacity, high I/O density, and MIL-grade thermal performance will find this device aligns with long-term system reliability and deployment requirements.
Request a quote or submit an inquiry to obtain pricing, availability, and additional technical information for the A54SX32A-BGG329M.
