EP20K300EBC652-2

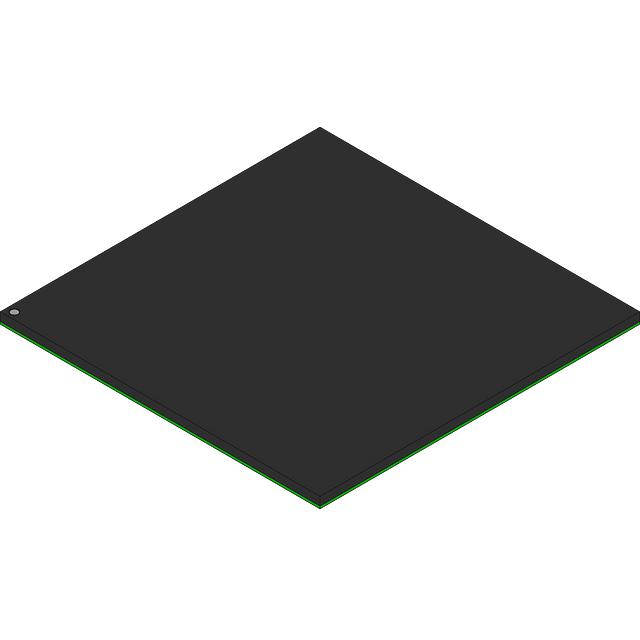

The EP20K300EBC652-2 is an Altera APEX-20KE® field programmable gate array (FPGA) packaged in a 652-ball BGA (45×45) for surface-mount applications. Designed for commercial-grade programmable logic, it provides a balance of logic capacity, on-chip memory, and I/O density suitable for a range of commercial embedded designs.

Key Features

• Core Logic  Approximately 11,520 logic elements providing flexible programmable logic resources for custom digital functions.
• Embedded Memory  Approximately 0.15 Mbits (147,456 bits) of on-chip RAM to support buffering, FIFOs, and small data stores.
• I/O Capacity  408 user I/O pins for interfacing to peripherals, memories, and external logic.
• Gate Count  728,000 gates indicating overall device complexity and integration capability.
• Package  652-BGA (45×45) surface-mount package for compact board-level integration.
• Power  Core voltage supply range of 1.71 V to 1.89 V to match targeted system power rails.
• Operating Temperature  Commercial temperature range of 0 °C to 85 °C for standard commercial applications.
• Compliance  RoHS compliant to meet lead-free assembly requirements.

Typical Applications

• Commercial Embedded Systems  Implements custom digital logic and control functions in commercial electronic products where programmable logic is required.
• Communications Equipment  Provides configurable I/O and logic resources for protocol processing, bridging, and peripheral interfacing in commercial telecom and networking gear.
• Prototyping and Development  Serves as a programmable platform for validating digital architectures and accelerating time-to-market for commercial designs.

Unique Advantages

• High Logic Density: Roughly 11,520 logic elements enable implementation of moderately complex digital designs without external ASICs.
• On-Chip Memory: Approximately 0.15 Mbits of embedded RAM reduces dependence on external memory for small buffering and storage tasks.
• Extensive I/O: 408 I/O pins support multiple interfaces and peripherals, simplifying board-level integration.
• Compact BGA Packaging: The 652-BGA (45×45) package offers a space-efficient footprint for high-density PCB layouts.
• Low-Voltage Operation: Narrow core voltage range (1.71 V–1.89 V) supports designs targeting lower supply rails.
• Commercial Readiness: Commercial temperature rating and RoHS compliance make the device suitable for standard commercial production environments.

Why Choose EP20K300EBC652-2?

The EP20K300EBC652-2 positions itself as a commercial-grade, mid-density FPGA offering a balanced combination of logic, embedded memory, and high I/O count in a compact 652-BGA package. It is well suited for customers building commercial embedded systems or communications equipment that require programmable logic, on-chip RAM, and substantial I/O integration.

With Altera APEX-20KE® architecture characteristics reflected in its logic element count, gate density, and packaging, this device delivers a scalable, verifiable platform for product development and production where commercial-grade performance and RoHS compliance are required.
