EP20K30ETC144-1

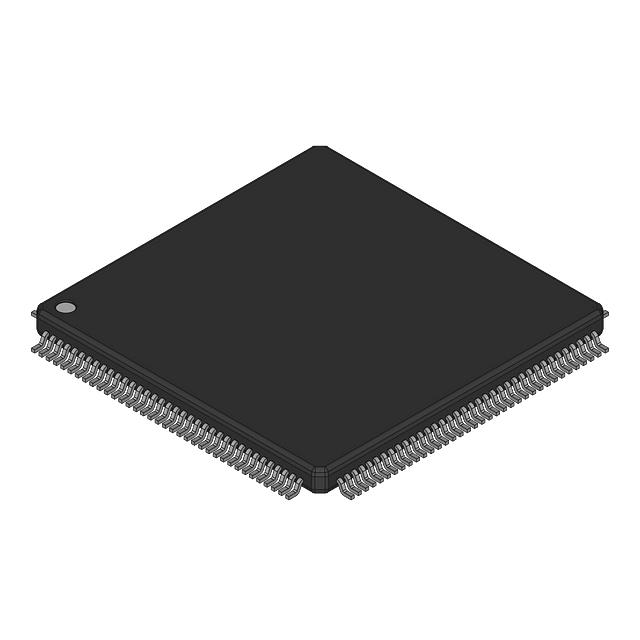

The EP20K30ETC144-1 is an APEX-20KE® family Field Programmable Gate Array (FPGA) from Altera, supplied in a 144-LQFP package. It provides a compact, surface-mount programmable logic device with 1,200 logic elements, 92 user I/Os and on-chip RAM for embedded logic and control functions within commercial-temperature systems.

Key Features

• Core Logic Approximately 1,200 logic elements organized into 120 logic blocks, enabling flexible implementation of custom digital logic and control functions.
• Embedded Memory 24,576 bits of on-chip RAM to support small data buffers, state machines, and temporary storage for logic operations.
• I/O Count 92 general-purpose I/O pins to interface with external peripherals, sensors, and buses in a variety of compact system designs.
• Gate Density 113,000 gates of logic capacity for integrating multiple moderate-complexity functions into a single device.
• Power Low-voltage supply range of 1.71 V to 1.89 V to match modern low-voltage system domains.
• Package & Mounting 144-LQFP surface-mount package (supplier package: 144-TQFP, 20×20 mm) for board-level assembly in space-constrained layouts.
• Operating Range Commercial temperature grade with an operating range of 0 °C to 85 °C to suit standard commercial applications.
• Regulatory RoHS compliant, supporting lead-free manufacturing and environmental requirements.

Typical Applications

• Logic Prototyping and Development Use the device for prototyping custom digital logic, proof-of-concept designs and FPGA-based development platforms where 1,200 logic elements and embedded RAM are sufficient.
• Control and Interface Functions Implement control state machines, protocol bridging, and peripheral interfaces using the available I/Os and on-chip logic resources.
• Compact Embedded Systems Integrate moderate-complexity logic and buffering into space-constrained, surface-mount board designs using the 144-LQFP package.

Unique Advantages

• Balanced Logic and Memory: A combination of ~1,200 logic elements and 24,576 bits of RAM supports a wide range of small to moderate logic tasks without external memory.
• High I/O Count in Small Package: Ninety-two I/Os delivered in a 144-LQFP footprint help minimize board area while preserving connectivity.
• Low-Voltage Operation: 1.71 V to 1.89 V supply compatibility aligns the device with low-voltage digital systems and power-efficient designs.
• Surface-Mount Ready: The 144-LQFP surface-mount package simplifies automated assembly for production volumes.
• Commercial Temperature Suitability: Rated 0 °C to 85 °C for reliable operation in typical commercial applications and environments.
• RoHS Compliance: Meets lead-free manufacturing and environmental compliance requirements.

Why Choose EP20K30ETC144-1?

The EP20K30ETC144-1 is positioned as a compact, commercially graded FPGA solution combining modest logic capacity, embedded RAM and a high I/O count in a 144-LQFP surface-mount package. Its low-voltage supply range and RoHS compliance make it suitable for contemporary embedded and control designs that require on-chip programmable logic without the footprint or power demands of larger devices.

This device is well suited to engineers and procurement teams building prototypes, control modules, and compact embedded systems that need integrated logic, moderate memory, and flexible I/O in a production-ready surface-mount package.

Request a quote or submit an inquiry to discuss availability, lead times and pricing for EP20K30ETC144-1. Sales can provide volume pricing and delivery options to meet your project schedule.
