EP4CE10E22C9LN

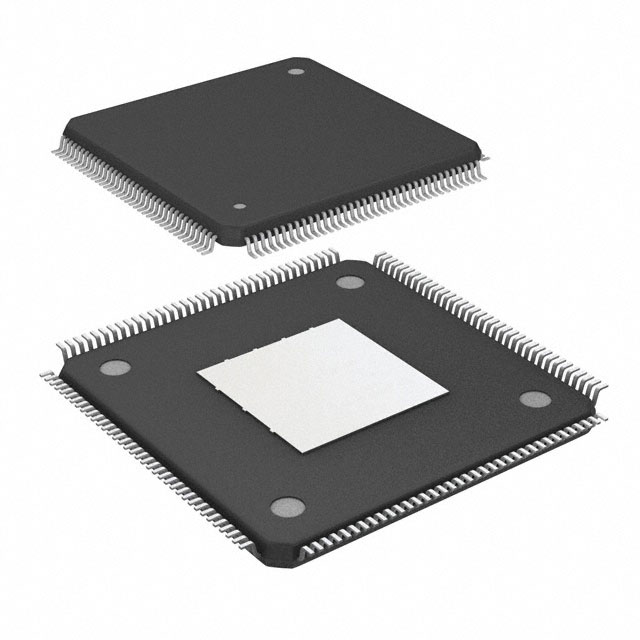

The EP4CE10E22C9LN is a Cyclone® IV E field programmable gate array (FPGA) from Intel, delivered in a 144‑lead LQFP package with an exposed pad. It provides reprogrammable logic resources—10,320 logic elements—and on‑chip embedded memory to support a range of embedded designs that require flexible logic, moderate I/O count, and a low‑voltage core.

With a commercial operating temperature range and RoHS compliance, this device is suited to production systems and development platforms that require a compact surface‑mount programmable logic solution with defined core voltage and I/O capabilities.

Key Features

• Logic Capacity — 10,320 logic elements for implementing medium‑density programmable logic functions and custom digital blocks.
• Embedded Memory — Approximately 0.424 Mbits of on‑chip RAM (423,936 bits) to support FIFOs, buffers, and local storage without external memory for many control and data‑path tasks.
• I/O Count — 91 user I/Os to integrate peripheral interfaces, sensors, and board‑level signals directly with programmable logic.
• Core Voltage — Specified core supply range from 970 mV to 1.03 V to match low‑voltage system power rails and ensure consistent device operation.
• Package & Mounting — 144‑lead LQFP with exposed pad for surface‑mount assembly; supplier package noted as 144‑EQFP (20×20).
• Operating Range & Grade — Commercial grade with operating temperature from 0 °C to 85 °C, suitable for standard commercial electronics applications.
• Environmental Compliance — RoHS compliant for lead‑free manufacturing and regulatory alignment.
• Documentation — Supported by Cyclone IV device documentation covering operating conditions, electrical characteristics, timing, and power consumption for system design and validation.

Typical Applications

• Embedded Control — Implement custom control logic, state machines, and timing-critical glue functions using on‑chip logic and memory.
• Interface Aggregation — Consolidate multiple peripheral interfaces into programmable fabric using the available 91 I/Os.
• Prototyping & Development — Use the reprogrammable Cyclone IV E device for hardware prototyping and iterative firmware/hardware co‑design.

Unique Advantages

• Right‑sized Logic Density: 10,320 logic elements provide a balanced resource set for medium‑complexity designs without excessive board real estate.
• On‑chip Memory Reduces BOM: Approximately 0.424 Mbits of embedded RAM lowers dependence on external memory for many control and buffering tasks.
• Generous I/O Count: Ninety‑one I/Os enable direct connection to multiple peripherals and sensors, minimizing the need for external multiplexers.
• Compact, Manufacturable Package: 144‑lead LQFP with exposed pad supports surface‑mount assembly and thermal return paths in space‑constrained designs.
• Predictable Power Envelope: Defined core supply range (0.97–1.03 V) helps system power planning and regulator selection.
• Commercial Grade Reliability: Rated for 0 °C to 85 °C operation and RoHS compliant for streamlined production deployment.

Why Choose EP4CE10E22C9LN?

The EP4CE10E22C9LN delivers a practical combination of programmable logic, embedded memory, and I/O capacity in a compact surface‑mount LQFP package. Its 10,320 logic elements and ~0.424 Mbits of RAM make it suitable for designs that need reconfigurable logic and local storage without a large footprint or high peripheral count.

Engineers specifying this Cyclone IV E device benefit from a clearly defined electrical and thermal profile—0.97–1.03 V core supply and 0 °C to 85 °C operation—along with RoHS compliance and manufacturer documentation for detailed electrical and timing characteristics. It is a solid choice for commercial embedded systems, interface consolidation, and development platforms that prioritize programmability and compact packaging.

Request a quote or submit an inquiry to obtain pricing, lead times, and availability for the EP4CE10E22C9LN. For complete electrical characteristics and design guidance, refer to the Cyclone IV device documentation provided by the manufacturer.
