EP4CE10E22C8L

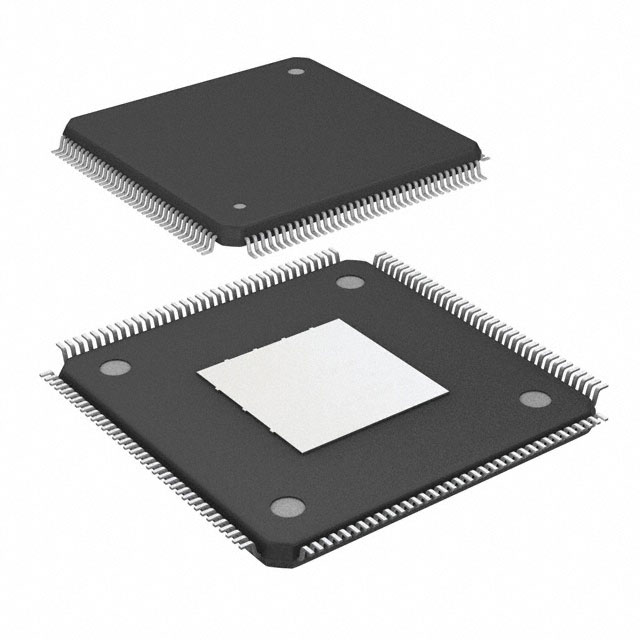

The EP4CE10E22C8L is a Cyclone IV E field-programmable gate array (FPGA) in a 144‑LQFP exposed pad package designed for commercial-grade applications. It delivers 10,320 logic elements, approximately 0.424 Mbits of embedded memory, and 91 dedicated I/Os in a compact surface-mount footprint.

Built for moderate-density programmable logic tasks, this device operates from a core supply range of 0.97 V to 1.03 V and is specified for commercial temperatures (0 °C to 85 °C). Documentation for the Cyclone IV family provides detailed electrical, power, and I/O specifications to support system design and integration.

Key Features

• Core Logic — 10,320 logic elements provide a moderate-density fabric for implementing custom logic, state machines, and glue-logic functions.
• Embedded Memory — Approximately 0.424 Mbits of on-chip RAM for buffering, small FIFOs, and local storage without external memory.
• I/O Density — 91 general-purpose I/Os to support multiple interfaces, peripherals, and external logic connections.
• Power Supply — Core voltage specified from 0.97 V to 1.03 V to match system power-rail planning and decoupling requirements.
• Package and Mounting — 144‑LQFP exposed pad (supplier device package listed as 144‑EQFP 20×20) in a surface-mount form factor for board-level assembly and thermal grounding via the exposed pad.
• Temperature Grade — Commercial operating range of 0 °C to 85 °C suitable for consumer and general-purpose embedded applications.
• Compliance and Documentation — RoHS‑compliant device with Cyclone IV device handbook documentation available covering operating conditions, DC characteristics, I/O standards, power consumption, and switching behavior.

Typical Applications

• Commercial Embedded Systems — Implement custom logic and interface control in consumer and general-purpose embedded products within the commercial temperature range.
• Prototyping and Development — Use as a moderate-density FPGA for validating digital designs and integrating peripheral logic during development cycles.
• I/O Expansion and Interface Bridging — Leverage 91 I/Os to consolidate multiple peripheral interfaces or create protocol bridges on a single device.
• On-Chip Data Buffering — Utilize the embedded memory (approximately 0.424 Mbits) for local buffering, small queues, and temporary storage to reduce external memory dependence.

Unique Advantages

• Moderate-density programmable fabric: 10,320 logic elements enable substantial custom logic integration while keeping board area and BOM complexity in check.
• Balanced I/O and memory: 91 I/Os combined with approximately 0.424 Mbits of embedded RAM support mixed-signal interfacing and modest on-chip data handling.
• Compact package with thermal pad: 144‑LQFP exposed pad provides a space-efficient footprint and an exposed pad for improved PCB thermal management.
• Commercial-grade specification: Specified for 0 °C to 85 °C operation and RoHS compliance for mainstream commercial product designs.
• Vendor documentation: Cyclone IV device handbook provides comprehensive guidance on operating conditions, I/O standards, power consumption, and switching characteristics to assist integration.

Why Choose EP4CE10E22C8L?

The EP4CE10E22C8L positions itself as a practical choice for designers who need a moderate-density FPGA with a balance of logic elements, on-chip memory, and I/O in a compact LQFP package. Its commercial-grade temperature range and RoHS compliance make it suitable for a wide range of consumer and general embedded applications.

With detailed Cyclone IV documentation available for electrical, power, and I/O characteristics, the device supports predictable integration and system-level planning—helpful for teams focused on prototyping, I/O aggregation, and embedded logic functions.

Request a quote or submit an inquiry to obtain pricing, availability, and lead-time information for the EP4CE10E22C8L.
