EP4CE10E22C8LN

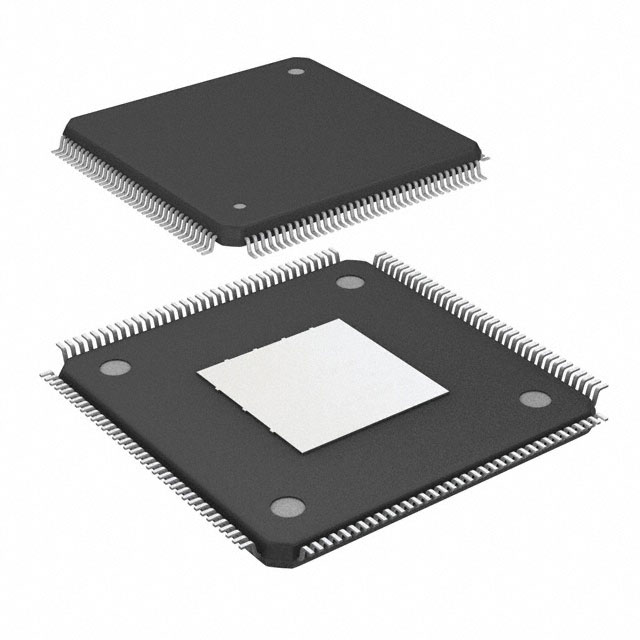

The EP4CE10E22C8LN is a Cyclone® IV E field programmable gate array (FPGA) IC from Intel, provided in a 144-LQFP exposed pad package. This commercial-grade FPGA integrates a mid-range logic capacity with embedded memory and a moderate I/O count for versatile digital design tasks.

Targeted at commercial applications, the device is suitable for system logic integration, on-chip buffering and interfacing, and general-purpose programmable hardware functions where a compact surface-mount package and defined operating conditions are required.

Key Features

• Core Logic Capacity — 10,320 logic elements and 645 logic array blocks (LABs) provide mid-range programmable logic resources for custom digital designs.
• Embedded Memory — Approximately 0.42 Mbits of on-chip RAM (423,936 total RAM bits) for buffering, FIFOs, and small on-chip data storage.
• I/O Count — 91 user I/O pins to support a variety of external interfaces and peripheral connections.
• Power Supply — Core voltage supply range from 970 mV to 1.03 V to match system power rails and enable consistent core operation.
• Package & Mounting — 144-LQFP exposed pad surface-mount package (supplier device package: 144-EQFP (20x20)) optimized for PCB assembly and thermal conduction through the exposed pad.
• Operating Range — Commercial-grade operating temperature range from 0 °C to 85 °C for standard commercial environments.
• Compliance — RoHS-compliant manufacturing status for regulatory and environmental alignment.
• Documentation — Part of the Cyclone IV device family with supporting Cyclone IV device handbook and datasheet materials available for detailed electrical and timing specifications.

Typical Applications

• Embedded Control and Glue Logic — Use the FPGA to implement custom control state machines, protocol bridging, and board-level glue between processors and peripherals.
• Interface and I/O Aggregation — Consolidate multiple I/O functions and bus interfaces onto a single device using the available 91 I/O pins.
• On-Chip Data Buffering — Leverage approximately 0.42 Mbits of embedded RAM for small buffers, FIFOs, and temporary data storage within data-path designs.

Unique Advantages

• Balanced Logic and Memory Mix — A combination of 10,320 logic elements and 423,936 bits of RAM supports a wide range of medium-complexity designs without external memory for small data needs.
• Compact Assembly-Friendly Package — 144-LQFP exposed pad surface-mount package provides a compact footprint and improved thermal path for reliable PCB integration.
• Defined Commercial Operating Range — Rated for 0 °C to 85 °C to match typical commercial product requirements and deployment environments.
• Predictable Power Envelope — Core voltage specified between 970 mV and 1.03 V enables straightforward power-supply planning during system design.
• Regulatory Alignment — RoHS compliance supports environmentally conscious product design and regional regulatory requirements.
• Well-Documented Device Family — Supported by Cyclone IV device handbook content and datasheet documentation for design validation and system integration.

Why Choose EP4CE10E22C8LN?

The EP4CE10E22C8LN positions itself as a practical, commercial-grade Cyclone IV E FPGA option when a mid-density programmable device is required. With over 10k logic elements, substantial embedded RAM, and a moderate I/O count in a standardized 144-LQFP exposed pad package, it is well-suited for designers seeking a compact, documented FPGA platform for control, interfacing, and on-board logic tasks.

Its defined power and temperature ranges, combined with RoHS compliance and available Cyclone IV documentation, make the EP4CE10E22C8LN a reliable choice for commercial product development where predictability, integration, and maintainable BOM complexity are priorities.
