EP4CE10E22I7

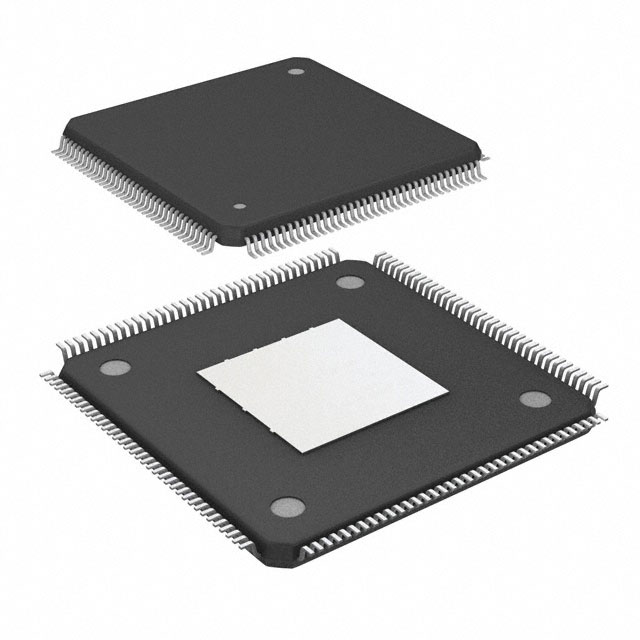

The EP4CE10E22I7 is a Cyclone® IV E Field Programmable Gate Array (FPGA) IC delivering 10,320 logic elements and approximately 0.424 Mbits of embedded memory. Designed for industrial-grade applications, this low-voltage core FPGA provides a compact, surface-mount package with 91 user I/O pins for mid-density custom logic and I/O aggregation.

With a specified supply voltage range of 1.15 V to 1.25 V and an operating temperature range from −40 °C to 100 °C, the device targets applications requiring robust thermal performance and RoHS compliance.

Key Features

• Core Logic  10,320 logic elements for implementing custom digital functions, state machines, and glue-logic in mid-density designs.
• Embedded Memory  Approximately 0.424 Mbits of on-chip RAM to support packet buffers, FIFOs, and small lookup tables without external memory.
• I/O Capability  91 user I/O pins suitable for interfacing with sensors, peripherals, and system buses in compact designs.
• Power and Voltage  Core supply specified between 1.15 V and 1.25 V, enabling designs optimized for the device’s low-voltage core requirements.
• Package & Mounting  144‑LQFP with exposed pad (supplier package: 144‑EQFP, 20×20) in a surface-mount form factor for PCB-level thermal and mechanical integration.
• Industrial Temperature Range  Rated for operation from −40 °C to 100 °C, supporting deployment in temperature-challenging environments.
• Regulatory Compliance  RoHS compliant for lead-free assembly in modern manufacturing processes.

Typical Applications

• Industrial Control and Automation  Implements custom control logic, I/O conditioning, and deterministic state machines within an industrial temperature envelope.
• Embedded System Integration  Acts as a programmable fabric for bridging peripherals, implementing protocol adapters, or offloading deterministic tasks from a host processor.
• Prototyping and Mid‑Density FPGA Designs  Provides a compact platform for developing and validating mid-density digital designs where board space and I/O count are constrained.

Unique Advantages

• Balanced Logic Density: 10,320 logic elements deliver sufficient capacity for complex glue-logic and moderate feature sets without excessive BOM cost.
• On‑Chip Memory for Local Storage: Approximately 0.424 Mbits of embedded RAM reduces reliance on external memory for small buffers and lookup tables.
• Industrial‑Grade Thermal Range: −40 °C to 100 °C rating supports deployment in harsher operating environments common to industrial applications.
• Compact, Thermally Aware Package: 144‑LQFP with exposed pad enables effective PCB-level thermal management while staying compatible with surface-mount assembly.
• Low‑Voltage Core: 1.15 V to 1.25 V supply range aligns system power design with the device’s core requirements for predictable operation.
• RoHS Compliant: Meets lead-free assembly requirements for modern manufacturing processes.

Why Choose EP4CE10E22I7?

The EP4CE10E22I7 positions itself as a practical mid-density Cyclone IV E FPGA tailored for industrial applications that need reliable operation across a wide temperature range, a moderate I/O count, and a compact package. Its blend of logic elements, embedded RAM, and surface-mount 144‑LQFP packaging makes it well suited for customers integrating programmable logic into space-constrained, thermally demanding systems.

This device is a suitable choice for design teams seeking a programmable, industrial‑grade FPGA platform that balances integration, predictable power requirements, and on-chip memory for localized buffering and control tasks.
