EP4CE22E22I8LN

The EP4CE22E22I8LN is a Cyclone® IV E Field Programmable Gate Array (FPGA) IC designed to provide programmable logic resources for industrial embedded applications. It combines 22,320 logic elements with approximately 0.61 Mbits of on-chip RAM and up to 79 I/O pins in a 144-LQFP exposed pad package to support custom digital logic, control and interfacing tasks.

Engineered for surface-mount assembly and industrial operation, this device is specified for a core voltage range of 0.970 V to 1.03 V and an operating temperature range of −40 °C to 100 °C, making it suitable for designs that require stable performance across a wide temperature span.

Key Features

• Programmable Logic Capacity  22,320 logic elements provide ample resources for mid-density FPGA designs and custom hardware implementations.
• Embedded Memory  Approximately 0.61 Mbits of on-chip RAM for buffering, state storage, and small data structures.
• Flexible I/O  Up to 79 general-purpose I/O pins to support interfacing with peripherals, sensors, and external devices.
• Industrial Temperature Grade  Rated for operation from −40 °C to 100 °C to meet demanding environmental conditions.
• Low-Voltage Core Supply  Core supply specified between 0.970 V and 1.03 V for the device core domain.

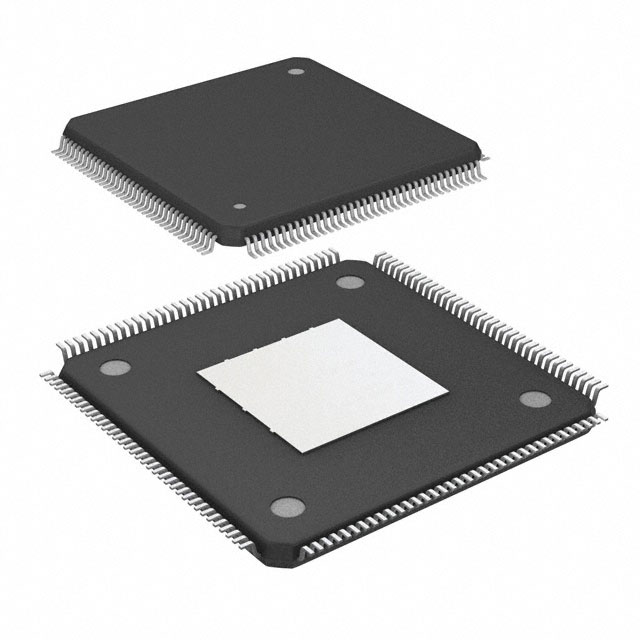

• Package and Mounting  144-LQFP with exposed pad (supplier device package listed as 144-EQFP 20×20) optimized for surface-mount PCB assembly and thermal conduction.
• Regulatory Status  RoHS compliant.
• Comprehensive Documentation  Datasheet and device handbook content cover operating conditions, absolute maximum ratings, DC characteristics, switching characteristics, and power consumption data.

Typical Applications

• Industrial control and automation  Implement custom logic, sequence control, and I/O aggregation within an industrial temperature-rated FPGA platform.
• Embedded systems and prototyping  Deliver custom hardware functions and rapid prototyping using 22,320 logic elements and on-chip RAM.
• Interface bridging and peripheral aggregation  Use the available 79 I/O pins to connect and translate between multiple external devices and buses.
• Hardware offload and acceleration  Offload specific computational or control tasks to programmable logic to optimize system partitioning.

Unique Advantages

• Balanced logic and memory  The combination of 22,320 logic elements and ~0.61 Mbits of RAM supports a wide range of mid-density designs without external memory for small buffers.
• Industrial robustness  Specified for −40 °C to 100 °C operation, enabling deployment in temperature-challenging environments.
• Compact, assembly-ready package  144-LQFP exposed pad with surface-mount mounting simplifies PCB integration and improves thermal performance.
• Low-voltage core operation  Narrow core voltage range (0.970 V–1.03 V) assists in predictable power-domain planning for system design.
• Regulatory compliance  RoHS compliant for use in environments requiring restricted-substance adherence.
• Documented device characteristics  Available datasheet content documents operating conditions, DC and switching characteristics, power consumption, and other design-critical parameters.

Why Choose EP4CE22E22I8LN?

The EP4CE22E22I8LN positions itself as a practical mid-density Cyclone IV E FPGA option for industrial and embedded designs that require a substantial number of logic elements, moderate on-chip memory, and a flexible I/O count in a compact surface-mount package. Its industrial temperature rating and documented electrical characteristics support robust deployment across a range of operational environments.

This device is suitable for engineers and designers seeking a programmable logic solution that balances integration, thermal considerations via an exposed pad package, and clear specification data for system-level planning and verification.

If you would like pricing, availability, or a formal quote for EP4CE22E22I8LN, submit a request for pricing and availability or request a quote through your procurement process.
