EPF10K50SQC240-1X

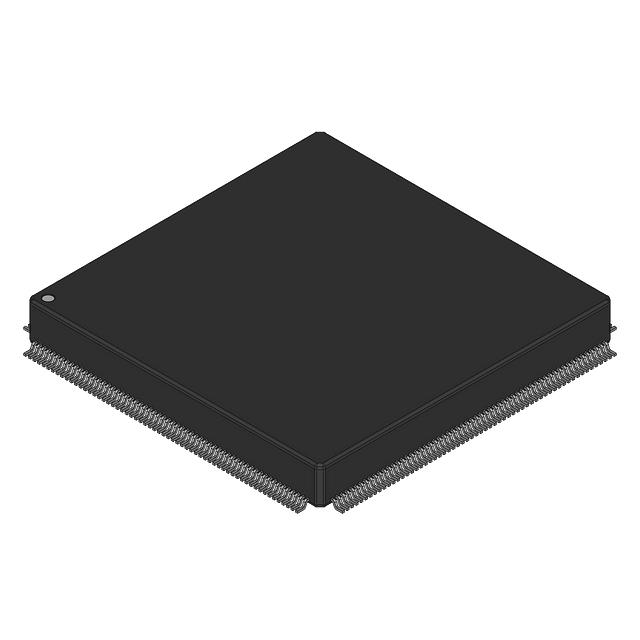

The EPF10K50SQC240-1X is a FLEX-10KS® series Field Programmable Gate Array (FPGA) from Altera, delivered in a 240-pin BFQFP surface-mount package. It provides a mid-range programmable logic resource set suitable for commercial designs that require configurable digital logic, on-chip memory and a high I/O count.

With 2,880 logic elements and approximately 40 kbits of embedded memory, this device targets applications that need moderate logic density and flexible interfacing, while operating at a core supply range of 2.375 V to 2.625 V and a commercial temperature range of 0°C to 70°C.

Key Features

• Core Logic — 2,880 logic elements provide adaptable programmable resources for custom digital functions and glue logic.
• Embedded Memory — Approximately 40 kbits (40,960 bits) of on-chip RAM to support buffering, small LUTs and local data storage.
• I/O Capacity — 189 user I/O pins to support multiple interfaces and peripheral connections in a single device.
• Power — Core supply voltage range of 2.375 V to 2.625 V to match system power rails and power-management strategies.
• Package and Mounting — 240-BFQFP package (supplier designation 240‑PQFP, 32×32) in a surface-mount form factor for compact PCB integration.
• Operating Conditions — Commercial grade device specified for 0°C to 70°C operation.
• Compliance — RoHS compliant for regulatory and environmental alignment.

Typical Applications

• Consumer Electronics — Implement custom control logic, peripheral management and feature expansion in compact consumer devices.
• Communications Equipment — Bridge interfaces and implement protocol-specific logic where flexible I/O and reprogrammability are required.
• Prototyping and Development — Use the device for proof-of-concept designs and iterative hardware development requiring reconfigurable logic resources.
• Test and Measurement — Provide configurable data handling and I/O aggregation in bench instruments and test systems.

Unique Advantages

• Balanced Logic Density: 2,880 logic elements deliver a practical mix of capacity and efficiency for medium-complexity designs.
• Ample I/O Count: 189 I/O pins reduce the need for external multiplexing or additional interface chips, simplifying board-level design.
• On-Chip Memory: Approximately 40 kbits of embedded RAM supports local buffering and small-data storage without external memory.
• Compact, Surface-Mount Package: The 240-BFQFP (240‑PQFP, 32×32) package enables high-density PCB layouts while maintaining straightforward assembly.
• Commercial Temperature Target: Rated for operation from 0°C to 70°C, matching typical requirements for consumer and commercial electronics.
• RoHS Compliant: Meets environmental compliance expectations for modern electronic products.

Why Choose EPF10K50SQC240-1X?

The EPF10K50SQC240-1X combines mid-range programmable logic, a substantial I/O complement and on-chip RAM in a compact surface-mount package, making it well suited for commercial designs that require configurable digital logic without large form-factor penalties. Its specified core voltage range and commercial operating temperature make integration straightforward in standard system environments.

Engineers and procurement teams seeking a FLEX-10KS® FPGA solution for consumer, communications, prototyping or test applications will find this part offers a practical balance of integration, I/O density and on-chip memory to simplify BOM and board layout while enabling reprogrammable logic capability.

Request a quote or submit a purchase inquiry to get pricing and availability for the EPF10K50SQC240-1X.
