XC2S300E-6PQG208I

The XC2S300E-6PQG208I is a Spartan®-IIE field programmable gate array (FPGA) manufactured by AMD. It provides a mid-range fabric with a combination of configurable logic, embedded RAM, and a substantial I/O count suited for industrial applications.

With 1536 configurable logic blocks (CLBs) and 6912 logic elements, the device supports custom digital logic and high-density I/O interfacing within a 208-pin PQFP package while operating over an industrial temperature range.

Key Features

• Logic Capacity — 1536 configurable logic blocks (CLBs) and 6912 logic elements for implementing custom digital designs and moderate-complexity state machines.
• Embedded Memory — Approximately 65 Kbits of on-chip RAM (65,536 bits) to support buffering, small FIFOs, and distributed storage.
• I/O Count — 146 user I/O pins, enabling broad external device connectivity and multiple parallel interfaces.
• Gate Equivalent — Rated at 300,000 gates to indicate overall device scale for integration planning.
• Power — Core voltage supply range of 1.71 V to 1.89 V, allowing integration into low-voltage designs.

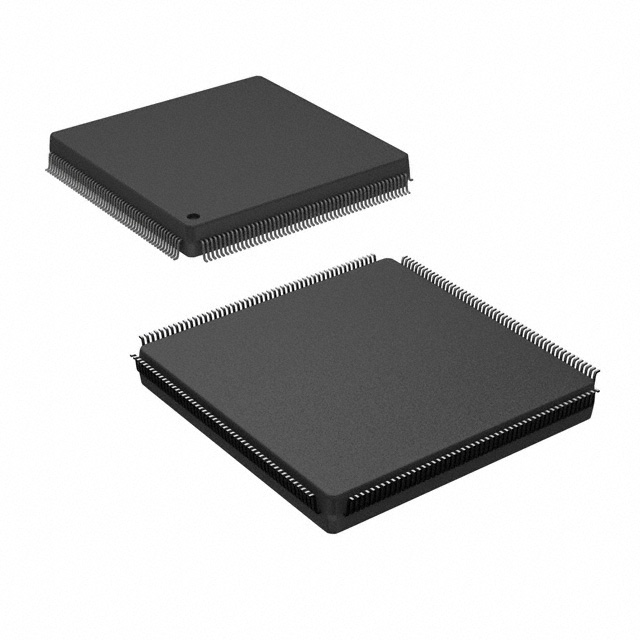

• Package & Mounting — Available in a 208-BFQFP / 208-PQFP (28×28) package with surface-mount mounting for compact PCB implementations.
• Temperature & Grade — Industrial-grade device certified for operation from −40 °C to 100 °C.
• Compliance — RoHS compliant for environmentally responsible manufacturing and disposal.

Typical Applications

• Industrial Control — Implement custom control logic, protocol handling, and I/O interfacing within industrial equipment using the device’s industrial temperature rating and high I/O count.
• Embedded Systems — Integrate moderate-complexity logic and on-chip memory for embedded processing tasks and peripheral aggregation.
• Communication Interfaces — Build custom interface bridging and parallel/serial front-ends leveraging the 146 available I/O pins.

Unique Advantages

• Balanced Logic Density: 1536 CLBs and 6912 logic elements provide a practical balance between capacity and cost for mid-range designs.
• On-Chip Memory Availability: Approximately 65 Kbits of embedded RAM reduces the need for external buffering in many applications.
• High I/O Flexibility: 146 I/O pins enable versatile connectivity options for sensors, peripherals, and external interfaces.
• Industrial Operating Range: Rated from −40 °C to 100 °C to meet extended-temperature deployment requirements.
• Compact Surface-Mount Package: 208-PQFP (28×28) package supports compact PCB layouts while remaining suitable for production assembly.
• Low-Voltage Core: 1.71 V to 1.89 V supply range helps align the FPGA with modern low-voltage system rails.

Why Choose XC2S300E-6PQG208I?

The XC2S300E-6PQG208I positions itself as a mid-range Spartan®-IIE FPGA solution that combines 1536 CLBs, approximately 65 Kbits of embedded memory, and 146 I/O pins in a 208-pin PQFP package. Its industrial temperature rating and RoHS compliance make it well suited for production systems where extended-temperature operation and regulatory compliance matter.

This device is appropriate for design teams and OEMs seeking a programmable, moderately dense logic solution for industrial and embedded applications that require a balance of logic capacity, on-chip RAM, and high I/O count.

Request a quote or submit an inquiry to get pricing and availability for the XC2S300E-6PQG208I and to discuss volume procurement or delivery timing.
