XC3195-3PQ160C

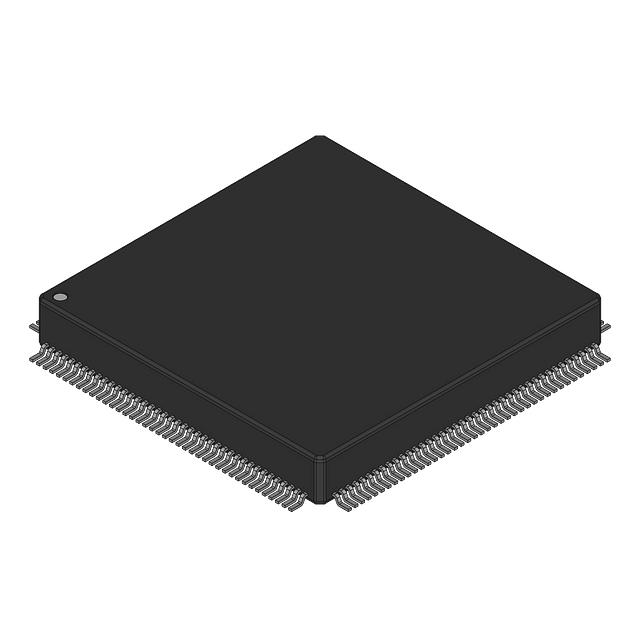

The XC3195-3PQ160C is a field programmable gate array (FPGA) IC provided in a 160-pin quad flat package. It integrates 484 logic elements, approximately 0.095 Mbits of embedded memory, and 138 general-purpose I/Os, delivering a compact, reprogrammable logic solution for commercial-temperature designs.

Designed for surface-mount assembly and operation from a 4.75 V to 5.25 V supply at 0 °C to 70 °C, this RoHS-compliant device is intended for applications that require moderate logic density, significant I/O connectivity, and single-supply 5 V compatibility.

Key Features

• Core Logic 484 logic elements provide configurable combinatorial and sequential resources for implementing custom logic and state machines.
• Embedded Memory Approximately 0.095 Mbits of on-chip RAM for buffering, small lookup tables, and local data storage.
• I/O Capacity 138 I/O pins to support wide peripheral and bus interfacing requirements in a single device.
• Power Single-supply operation from 4.75 V to 5.25 V simplifies integration into 5 V systems.
• Package 160-BQFP package case with supplier device package listed as 160-PQFP (28×28) suitable for surface-mount assembly.
• Commercial Temperature Grade Rated for 0 °C to 70 °C operation for standard commercial applications.
• Compliance RoHS-compliant construction supports regulatory requirements for lead-free assemblies.

Typical Applications

• Embedded Control and Glue Logic Implement custom control paths and glue logic in 5 V-based embedded systems using the device's logic elements and abundant I/Os.
• Prototyping and Development Use as a reprogrammable platform for validating logic functions and small-scale system prototypes requiring on-chip RAM and flexible I/O.
• I/O Expansion and Peripheral Interface Consolidate multiple peripheral interfaces or expand digital I/O in compact designs with the 138 I/O pins.
• Consumer and Commercial Electronics Integrate application-specific logic in commercial-temperature electronics where moderate logic density and 5 V compatibility are required.

Unique Advantages

• Moderate Logic Density: 484 logic elements provide a balance between capacity and footprint for mid-complexity designs.
• On-Chip Memory: Approximately 0.095 Mbits of embedded RAM enables local buffering and small data tables without external memory.
• High I/O Count: 138 I/Os reduce the need for external GPIO expanders and simplify board-level routing for multi-peripheral designs.
• 5 V Supply Compatibility: Operates from 4.75 V to 5.25 V for straightforward integration into legacy and existing 5 V power architectures.
• Surface-Mount 160-Pin Package: 160-BQFP / 160-PQFP (28×28) package supports dense PCB layout and standard assembly processes.
• RoHS Compliant: Meets lead-free assembly requirements for commercial products.

Why Choose XC3195-3PQ160C?

The XC3195-3PQ160C positions itself as a compact, reprogrammable logic device for designers who need moderate logic resources combined with high I/O connectivity in a 160-pin surface-mount package. Its on-chip RAM and 138 I/Os make it well suited for consolidating interface logic and custom control functions within a single component.

With single-supply 5 V operation, commercial-temperature rating, and RoHS compliance, the device offers a practical option for commercial electronics, prototyping, and mid-complexity embedded designs where integration and straightforward power requirements matter.

Request a quote or submit an inquiry to discuss availability, pricing, and lead times for the XC3195-3PQ160C. Our team can provide the information you need to move your design forward.
