XC4VLX100-10FF1513C

The XC4VLX100-10FF1513C is a Virtex‑4 LX field programmable gate array (FPGA) manufactured by AMD. It provides a high density of programmable logic and I/O in a 1513‑FBG A FCBGA package targeted at commercial applications.

With 110,592 logic elements, approximately 4.4 Mbits of embedded memory and 960 I/O pins, this device is suitable for designs that require substantial on‑chip resources and a large external connectivity surface within a surface‑mount FCBGA package.

Key Features

• Logic Capacity  110,592 logic elements and 12,288 CLBs provide substantial programmable resources for complex digital designs.
• Embedded Memory  Approximately 4.4 Mbits of on‑chip RAM to support buffering, state storage, and intermediate data processing without external memory.
• I/O Density  960 user I/O pins enable extensive external interfacing and support for multi‑channel designs.
• Power Supply Range  Operates from a core voltage supply between 1.14 V and 1.26 V, allowing designers to plan power delivery and sequencing accordingly.

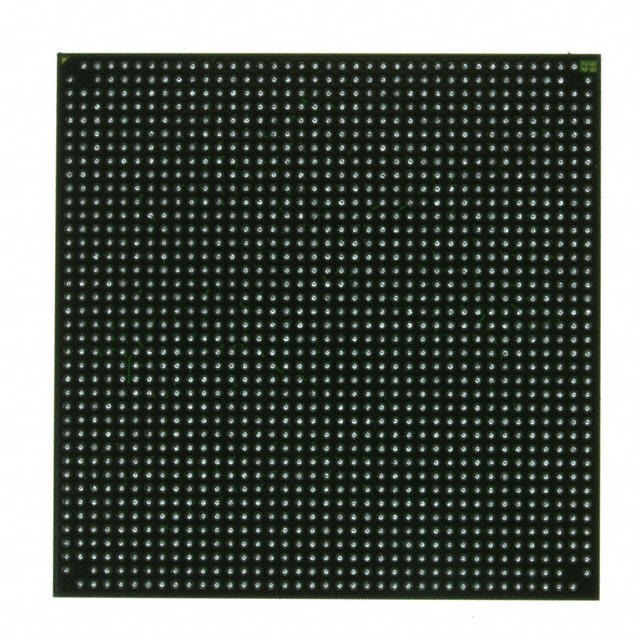

• Package and Mounting  1513‑FCBGA (1513‑BBGA) package, supplier device package 1513‑FCBGA (40×40), designed for surface‑mount assembly.
• Commercial Temperature Grade  Rated for operation from 0 °C to 85 °C for typical commercial environments.
• Environmental Compliance  RoHS compliant to meet common environmental requirements.

Typical Applications

• High‑density digital systems  Use the device where large amounts of programmable logic and embedded memory are required to implement complex state machines, data paths, and custom processing engines.
• Communications and I/O intensive equipment  Leverage 960 I/O pins to interface with multiple lanes, peripherals, or I/O standards in commercial communications hardware.
• Prototype and development platforms  Deploy the FPGA in evaluation or development systems that need substantial on‑chip resources for iterative design and verification.
• Embedded processing and acceleration  Combine logic density and on‑chip RAM to accelerate data handling, buffering, and application‑specific computations.

Unique Advantages

• High on‑chip resource density: 110,592 logic elements and 12,288 CLBs enable integration of complex functions on a single device, reducing board‑level component count.
• Generous embedded memory: Approximately 4.4 Mbits of RAM supports large internal buffers and state storage, minimizing dependency on external memory for many use cases.
• Extensive external connectivity: 960 I/O pins provide flexibility for multi‑channel interfaces, broad peripheral support, and high‑pin‑count systems.
• Compact FCBGA packaging: 1513‑FCBGA (40×40) delivers a compact, surface‑mount package option that preserves board area while offering high pin count.
• Commercial operating range: 0 °C to 85 °C rating suits a wide range of non‑industrial commercial products and development systems.
• RoHS compliant: Conforms to RoHS environmental requirements for ease of regulatory compliance.

Why Choose XC4VLX100-10FF1513C?

The XC4VLX100-10FF1513C balances substantial programmable logic, embedded memory and extensive I/O in a single FCBGA package. Its combination of 110,592 logic elements, approximately 4.4 Mbits of on‑chip RAM and 960 I/O pins makes it well suited to designers who need to consolidate complex digital functions and heavy I/O requirements into a compact surface‑mount form factor.

Targeted at commercial applications, this Virtex‑4 LX FPGA is a practical option for teams building high‑density digital systems, communications hardware, and prototyping platforms that require verified resource counts, a defined voltage supply window, and a commercial temperature rating.

Request a quote or submit a request for pricing and availability to move your design from specification to procurement.
