XC4VLX100-11FF1148C

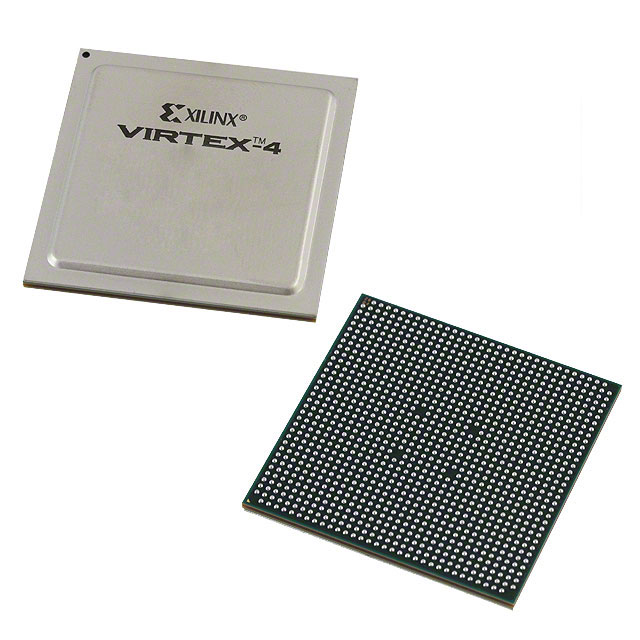

The XC4VLX100-11FF1148C is a Virtex®-4 LX field programmable gate array (FPGA) from AMD, supplied in a 1148-ball FCPBGA package (35×35). It provides high logic capacity, substantial on-chip memory, and a large I/O count for complex, I/O-dense designs.

With 110,592 logic elements, approximately 4.42 Mbits of embedded memory and 768 I/Os, this commercial-grade FPGA targets applications that require significant programmable logic, on-chip RAM and a compact ball-grid package.

Key Features

• Logic Capacity  110,592 logic elements enable large-scale logic integration and complex combinational/sequential designs.
• On-Chip Memory  Approximately 4.42 Mbits of embedded memory (4,423,680 total RAM bits) for data buffering, FIFOs and local storage.
• I/O Density  768 user I/Os provide extensive external connectivity for high-channel-count interfaces and parallel buses.
• Configurable Logic Blocks  12,288 configurable logic blocks support hierarchical design partitioning and resource allocation.
• Package  1148-ball FCBGA (1148-FCPBGA) package with a 35×35 mm footprint for dense board-level integration.
• Power  Core supply range specified from 1.14 V to 1.26 V for the device core domain.
• Mounting & Grade  Surface-mount device, commercial temperature grade with an operating range of 0 °C to 85 °C.
• Environmental Compliance  RoHS compliant.

Typical Applications

• High-density I/O systems  Use the 768 I/Os to support multi-channel interfaces, wide parallel buses and dense peripheral connections.
• Embedded logic acceleration  Leverage 110,592 logic elements and on-chip RAM to implement custom accelerators and data-path processing.
• Prototyping and system integration  The combination of large logic resources and a compact FCBGA package suits board-level integration and functional prototyping.

Unique Advantages

• High logic capacity: 110,592 logic elements support complex designs without immediate partitioning to multiple devices.
• Substantial embedded memory: Approximately 4.42 Mbits of on-chip RAM reduces external memory dependence for many buffering and storage tasks.
• Large I/O complement: 768 I/Os enable extensive system-level interfacing and parallel connectivity.
• Compact BGA package: 1148-ball FCPBGA (35×35) provides a space-efficient form factor for dense PCB layouts.
• Commercial temperature rating: Rated 0 °C to 85 °C for standard commercial applications.
• RoHS compliant: Meets RoHS environmental requirements for lead-free assembly processes.

Why Choose XC4VLX100-11FF1148C?

The XC4VLX100-11FF1148C positions itself as a high-capacity Virtex-4 LX FPGA option for designers requiring a combination of extensive logic resources, significant embedded memory and a high I/O count in a compact FCBGA package. Its commercial temperature rating and RoHS compliance make it suitable for a broad range of standard electronic products.

Engineers and procurement teams looking to implement large-scale programmable logic, dense interfacing, or on-chip data buffering will find the XC4VLX100-11FF1148C provides the core resources needed for complex designs, backed by AMD's Virtex-4 documentation and support materials.

Request a quote or submit an inquiry to check availability and pricing for the XC4VLX100-11FF1148C.
