XC4VLX100-11FF1148I

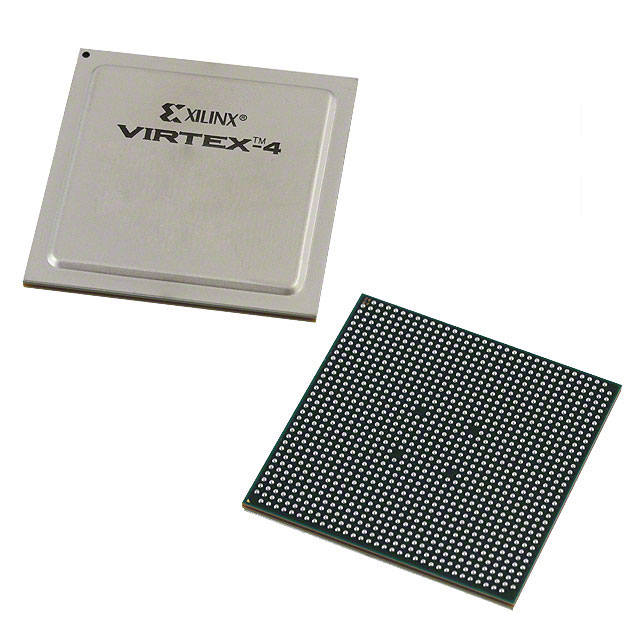

The XC4VLX100-11FF1148I is a Virtex®-4 LX field programmable gate array (FPGA) IC from AMD. It delivers a large programmable fabric with 110,592 logic elements and 12,288 CLBs in a high-density package.

With approximately 4.42 Mbits of on-chip RAM, 768 user I/Os, an industrial operating temperature range (−40 °C to 100 °C), and a compact 1148-BBGA (35×35 mm FCPBGA) package, this device is aimed at designs that require significant logic capacity and high I/O density while meeting industrial temperature and mounting requirements.

Key Features

• Core Architecture  110,592 logic elements across 12,288 CLBs provide substantial programmable logic capacity for complex digital designs.
• Embedded Memory  Approximately 4.42 Mbits of on-chip RAM supports buffering, frame storage, and other memory-intensive functions without external memory for many use cases.
• I/O Density  768 user I/O pins enable wide parallel connectivity to sensors, transceivers, interfaces, and external peripherals.
• Power  Operates from a 1.14 V to 1.26 V core supply range, suitable for the device’s specified operating conditions.
• Package & Mounting  1148-BBGA (1148-FCPBGA, 35×35 mm) surface-mount package optimizes board-level density and thermal performance.
• Temperature & Grade  Industrial grade device rated for −40 °C to 100 °C operation for deployment in temperature-challenged environments.
• Regulatory  RoHS compliant.

Typical Applications

• Industrial Control  Implements real-time logic, control sequencing, and I/O aggregation in industrial automation equipment within an industrial temperature envelope.
• High-Density Digital Processing  Hosts large custom datapaths or parallel processing blocks that leverage the device’s extensive logic elements and embedded RAM.
• I/O-Intensive Systems  Interfaces multiple external devices or high-channel-count subsystems using up to 768 user I/Os for broad connectivity.
• Embedded System Integration  Provides on-chip resources to consolidate functions and reduce external component count in complex embedded designs.

Unique Advantages

• High programmable logic capacity: 110,592 logic elements and 12,288 CLBs accommodate complex custom logic and large state machines.
• Substantial on-chip RAM: Approximately 4.42 Mbits of embedded memory reduces dependence on external memory for many buffering and storage tasks.
• Extensive I/O complement: 768 user I/Os deliver flexibility for parallel interfaces, multi-channel data capture, and comprehensive system integration.
• Industrial temperature rating: Specified −40 °C to 100 °C operation supports deployment in temperature-challenging environments.
• Compact, high-density package: 1148-FCPBGA (35×35 mm) provides a balance of pin count and board space for dense designs.
• RoHS compliant: Meets common lead-free manufacturing requirements.

Why Choose XC4VLX100-11FF1148I?

The XC4VLX100-11FF1148I combines a large logic fabric, significant embedded memory, and a high I/O count in a compact industrial-grade package, making it well suited for designs that require high integration and robust operation across a wide temperature range. As a Virtex®-4 LX device from AMD, it provides the resources needed to consolidate multiple functions into a single programmable device.

This part is appropriate for engineering teams and procurement seeking a high-capacity FPGA in a surface-mount 1148-BBGA package with defined voltage and temperature specifications, offering a balance of performance and integration for demanding embedded and industrial applications.

Request a quote or submit a pricing inquiry to obtain availability and lead-time information for the XC4VLX100-11FF1148I.
