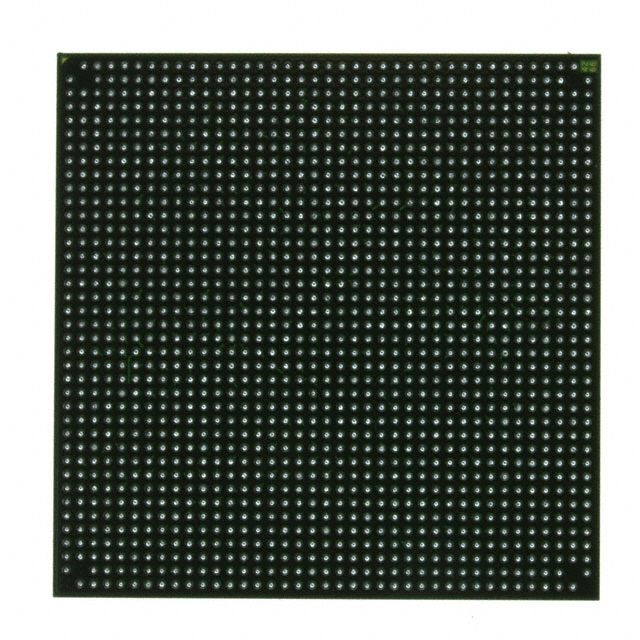

XC4VLX100-11FFG1513C

The XC4VLX100-11FFG1513C is a Virtex®-4 LX Field Programmable Gate Array (FPGA) IC supplied in a 1513-BBGA FCBGA package. It provides a large on-chip logic and memory footprint along with a high I/O count for demanding digital designs.

With 110,592 logic elements, 12,288 CLBs and approximately 4.42 Mbits of embedded memory, this device is suited to designs that require substantial programmable logic capacity and on-chip RAM while operating from a core supply between 1.14 V and 1.26 V.

Key Features

• Logic Capacity — 110,592 logic elements and 12,288 CLBs provide a substantial resource pool for complex logic implementation and custom digital functions.
• Embedded Memory — Approximately 4.42 Mbits of on-chip RAM to support buffering, state storage and memory-intensive logic tasks.
• High I/O Count — 960 user I/O pins to accommodate wide external interfaces and multiple parallel data paths.
• Package — 1513-FCBGA (40×40) ball grid array package, surface-mount compatible for high-density board designs.
• Power — Core voltage supply range of 1.14 V to 1.26 V for defined power planning and supply design.
• Operating Conditions — Commercial grade device specified for 0°C to 85°C operation.
• Compliance — RoHS compliant, meeting standard environmental directives for lead-free assembly.

Typical Applications

• Complex digital logic implementations — Use the large pool of logic elements and CLBs to implement custom state machines, datapaths and protocol engines.
• On-chip buffering and memory-intensive tasks — The approximately 4.42 Mbits of embedded memory supports data buffering, FIFOs and local storage for streaming applications.
• High-pin-count interfacing — 960 I/O pins enable multiple parallel interfaces, external memory connections and wide buses.

Unique Advantages

• Substantial programmable resources: 110,592 logic elements and 12,288 CLBs provide the headroom to implement large, integrated digital systems on a single device.
• Significant on-chip memory: Approximately 4.42 Mbits of embedded RAM reduces dependence on external memory for many buffering and caching needs.
• Extensive I/O availability: 960 I/O pins help minimize the need for external I/O expanders and simplify board-level routing for complex interfaces.
• Compact, surface-mount package: 1513-FCBGA (40×40) supports high-density PCB layouts while maintaining a manageable footprint.
• Clear power and thermal envelope: Defined core voltage range and commercial operating temperature simplify system power design and qualification for commercial products.
• RoHS compliant: Supports lead-free assembly and environmental compliance requirements.

Why Choose XC4VLX100-11FFG1513C?

The XC4VLX100-11FFG1513C positions itself as a high-capacity, commercially graded FPGA option for designs that require a large number of logic elements, substantial embedded memory and extensive I/O. Its 1513-FCBGA package and surface-mount mounting type make it suitable for compact, dense PCB implementations.

This device is ideal for engineering teams building complex programmable logic solutions that need integrated memory and high I/O counts while operating within a defined commercial temperature and supply voltage range. The combination of logic resources, on-chip RAM and package density delivers scalability and integration for medium to large FPGA-based designs.

Request a quote or submit an inquiry to obtain pricing and availability for the XC4VLX100-11FFG1513C. Our team can provide ordering information and assist with volume requests or technical clarifications.
