XC4VLX100-12FF1148C

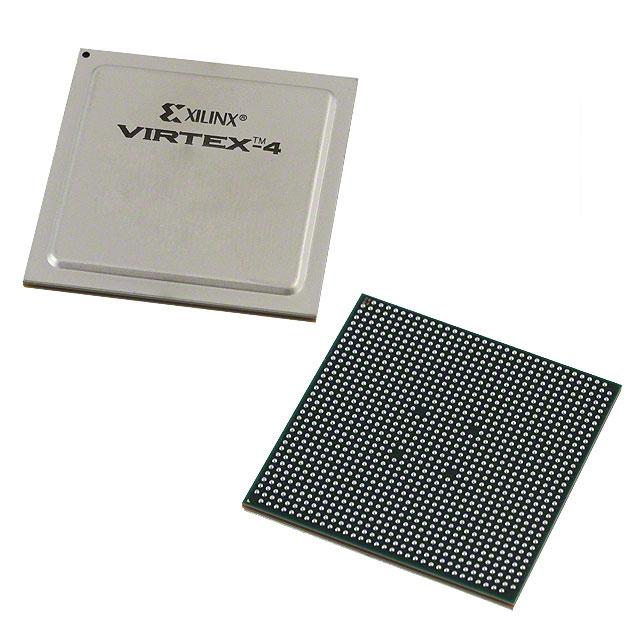

The XC4VLX100-12FF1148C is a Virtex®-4 LX Field Programmable Gate Array (FPGA) IC from AMD designed for commercial embedded applications. It combines a high logic capacity with substantial on-chip memory and large I/O count in a 1148-ball FCBGA package for surface-mount assembly.

This device targets designs requiring significant logic resources, embedded RAM, and high pin count within a compact 35 × 35 mm package, operating on a core voltage between 1.14 V and 1.26 V under commercial temperature conditions.

Key Features

• Logic Capacity  110,592 logic elements for implementing complex digital functions and large-scale logic integration.
• Embedded Memory  Approximately 4.42 Mbits of on-chip RAM to support buffering, state storage, and memory-intensive logic.
• High I/O Density  768 I/O pins to accommodate extensive external connectivity and parallel interfaces.
• Package  1148-BBGA (FCBGA), supplier device package 1148-FCPBGA with 35 × 35 mm footprint for surface-mount applications.
• Power  Core supply range of 1.14 V to 1.26 V to match system power rails and regulator designs.
• Thermal and Grade  Commercial grade with an operating temperature range of 0 °C to 85 °C suitable for standard commercial environments.
• Mounting and Compliance  Surface-mount device with RoHS compliance for environmentally restricted applications.

Typical Applications

• High-density I/O systems  Use the 768 I/O pins for designs that require extensive parallel connections, board-level routing flexibility, and multiple peripheral interfaces.
• Memory-intensive logic  Leverage approximately 4.42 Mbits of embedded RAM for buffering, packet processing, or data staging within real-time pipelines.
• Compact board-level implementations  The 1148-ball FCBGA (35 × 35 mm) package supports surface-mount, space-efficient layouts for densely populated PCBs.
• Commercial embedded applications  Suitable for commercial-grade systems that operate within a 0 °C to 85 °C range and require RoHS-compliant components.

Unique Advantages

• High logic integration: 110,592 logic elements enable consolidation of multiple digital functions into a single device, reducing board-level component count.
• Substantial on-chip RAM: Approximately 4.42 Mbits of embedded memory minimizes external RAM dependence for many buffering and state storage needs.
• Extensive I/O support: 768 I/O pins provide flexibility for interfacing with numerous peripherals or parallel data buses without external expanders.
• Space-efficient package: 1148-BBGA FCBGA in a 35 × 35 mm footprint supports compact PCB designs while maintaining high pin density.
• Controlled supply range: Supported core voltage between 1.14 V and 1.26 V enables straightforward power-supply planning for commercial systems.
• RoHS compliant: Meets environmental restriction requirements for lead-free assembly and regulatory compliance in commercial products.

Why Choose XC4VLX100-12FF1148C?

The XC4VLX100-12FF1148C positions itself as a high-capacity Virtex®-4 LX FPGA option for commercial embedded designs that demand large-scale logic, substantial on-chip memory, and very high I/O counts in a compact FCBGA package. Its combination of 110,592 logic elements, approximately 4.42 Mbits of embedded RAM, and 768 I/Os supports integration of complex subsystems onto a single programmable device.

This device is well suited for engineers and procurement teams specifying commercial-grade FPGA solutions where board space, I/O density, and integrated memory are key design drivers. The RoHS compliance and defined operating voltage and temperature ranges contribute to predictable system integration and lifecycle planning.

Request a quote or submit a purchase inquiry to obtain pricing, availability, and lead-time information for the XC4VLX100-12FF1148C.
