XC5215-6HQ240IO359

The XC5215-6HQ240IO359 is a Field Programmable Gate Array (FPGA) IC in the XC5200 family from AMD. It delivers a balanced combination of programmable logic capacity and high I/O count in a surface-mount 240-BFQFP exposed pad package.

Targeted for industrial embedded designs, this device provides 1,936 logic elements and approximately 23,000 gates, along with 197 I/O lines and an industrial operating temperature range for deployment in demanding environments.

Key Features

• Logic Capacity  Approximately 1,936 logic elements and 23,000 equivalent gates to implement custom digital functions and glue logic.
• I/O Resources  197 general-purpose I/O pins support high pin-count interfaces and extensive peripheral connectivity.
• Power Supply  Single-supply operation from 4.5 V to 5.5 V simplifies integration into 5 V systems.

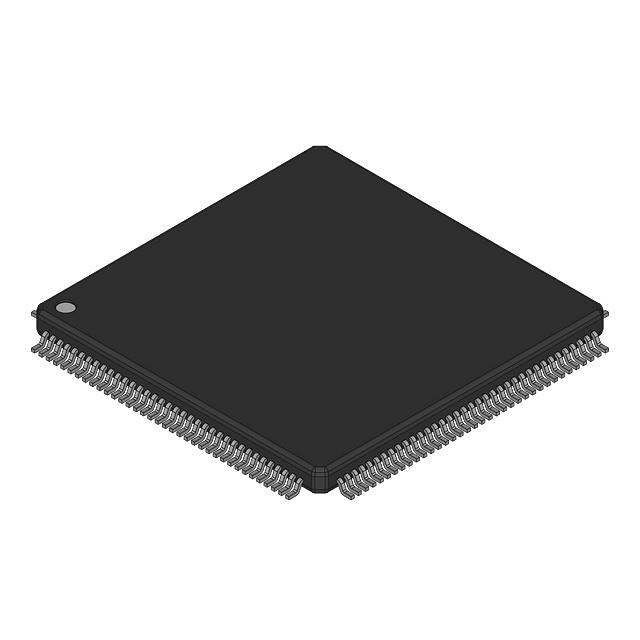

• Package and Mounting  240-BFQFP exposed pad package (supplier device package listed as 240-PQFP 32×32) in a surface-mount format for compact PCB implementations.
• Industrial Rating  Industrial-grade device with an operating temperature range of −40 °C to 100 °C for reliable operation in harsh conditions.
• On‑Chip Memory  Total RAM bits: 0 — this device provides programmable logic and I/O resources without embedded RAM blocks.

Typical Applications

• Industrial Control and Automation  Suitable for control logic and I/O aggregation in industrial systems that require an industrial temperature range and high I/O count.
• I/O-Intensive Interface Modules  Use where many digital lines are needed for protocol bridging, peripheral expansion, or front-end interface functions.
• Embedded Prototyping and Custom Logic  Ideal for prototyping custom peripherals and implementing application-specific digital functions using reconfigurable logic.

Unique Advantages

• Balanced Logic and Gate Density: With about 1,936 logic elements and 23,000 gates, the device supports a wide range of custom digital designs without overspecifying resources.
• High I/O Availability: 197 I/O pins provide flexibility for multi-signal interfaces and dense peripheral connections.
• Industrial Operating Range: Rated from −40 °C to 100 °C and classified as industrial grade for deployment in temperature-challenging environments.
• 5 V Supply Compatibility: 4.5 V to 5.5 V operation facilitates integration with legacy and industrial power systems.
• Compact, High‑Pin Package: 240-BFQFP exposed pad (240-PQFP 32×32) combines high pin count with a surface-mount footprint for efficient PCB use.

Why Choose XC5215-6HQ240IO359?

The XC5215-6HQ240IO359 offers a practical balance of programmable logic capacity, extensive I/O, and industrial-temperature operation for engineers building reconfigurable digital systems. Its specification set makes it well suited for embedded designs that demand moderate logic resources with a high pin count and reliable performance across a wide temperature range.

Backed by the XC5200 family architecture from AMD, this device is a solid option for teams looking to implement custom interfaces, control logic, or prototype application-specific digital functions in industrial environments.

Request a quote or submit a purchasing inquiry to check availability and pricing for the XC5215-6HQ240IO359.
