XC5215-6HQ240CO359

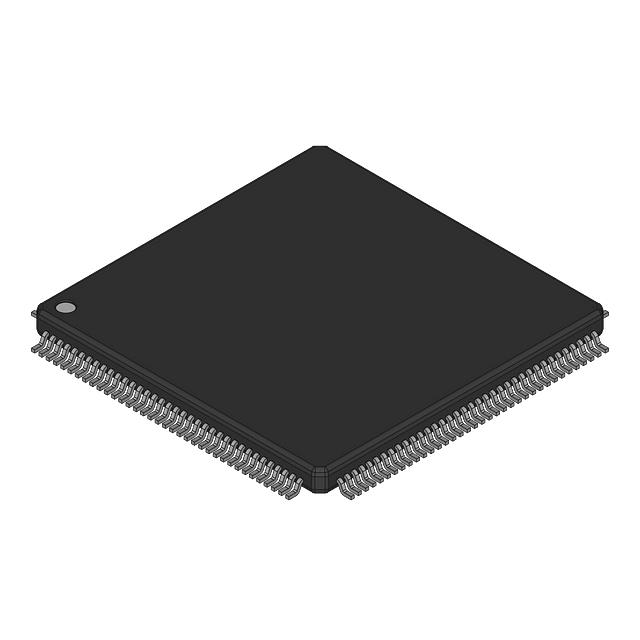

The XC5215-6HQ240CO359 is a Field Programmable Gate Array (FPGA) IC designed for commercial electronic applications that require moderate logic density and a high I/O count. This surface-mount device provides 1,936 logic elements (approximately 23,000 gates) and 197 user I/O, delivered in a 240-BFQFP exposed pad package.

With a 4.75 V to 5.25 V supply range, commercial-grade operating temperature from 0 °C to 85 °C, and RoHS compliance, the device is suited for designs that need a 5 V-compatible programmable logic solution in a compact package footprint.

Key Features

• Logic Capacity – 1,936 logic elements and approximately 23,000 gates provide moderate programmable logic resources for glue logic, control sequencing, and protocol implementation.
• I/O Density – 197 user I/O pins support extensive peripheral and bus interfacing without external I/O expanders.
• Package – 240-BFQFP with exposed pad (supplier device package: 240-PQFP, 32×32) delivers a compact, surface-mount form factor suitable for PCB assemblies.
• Power – Designed for 4.75 V to 5.25 V systems, aligning with common 5 V power rails.
• Mounting and Thermal – Surface-mount package with exposed pad for PCB thermal coupling and reliable assembly.
• Commercial Grade & Compliance – Rated for 0 °C to 85 °C operation and RoHS compliant for commercial electronics manufacturing.
• Logic Structure – Built around a CLB/LUT-based architecture providing 1,936 logic elements for flexible customer-defined functions.

Typical Applications

• Commercial Embedded Systems – Implement custom control logic, protocol bridges, and glue logic in 5 V commercial electronic products.
• I/O-Intensive Control – Drive numerous sensors, switches, and peripherals directly with 197 available I/O pins.
• Prototyping and Development – Use as a development FPGA for evaluating moderate-density logic implementations in a compact PQFP footprint.

Unique Advantages

• High I/O Capacity: 197 I/O pins reduce the need for external I/O expanders and simplify board-level design for peripheral-rich systems.
• Moderate Logic Density: 1,936 logic elements and ~23,000 gates support a wide range of custom logic functions while keeping device complexity manageable.
• 5 V System Compatibility: Native support for 4.75 V to 5.25 V supplies makes integration straightforward in existing 5 V system architectures.
• Compact, Serviceable Package: 240-BFQFP exposed pad with a 32×32 PQFP footprint eases PCB layout and assembly for surface-mount manufacturing.
• Commercial Temperature and RoHS: Commercial operating range (0 °C to 85 °C) and RoHS compliance support standard consumer and commercial product lifecycles.

Why Choose XC5215-6HQ240CO359?

The XC5215-6HQ240CO359 is positioned for commercial designs that need a balance of logic resources and extensive I/O in a 5 V-compatible FPGA. Its combination of 1,936 logic elements, 197 I/O, and a compact 240-BFQFP exposed pad package makes it suitable for embedded control, protocol interfacing, and I/O-rich systems where board space and I/O count are primary concerns.

Choose this part when your design requires a programmable, commercially rated FPGA solution with clear electrical and mechanical specifications that simplify integration, reduce external components, and support standard surface-mount assembly processes.
