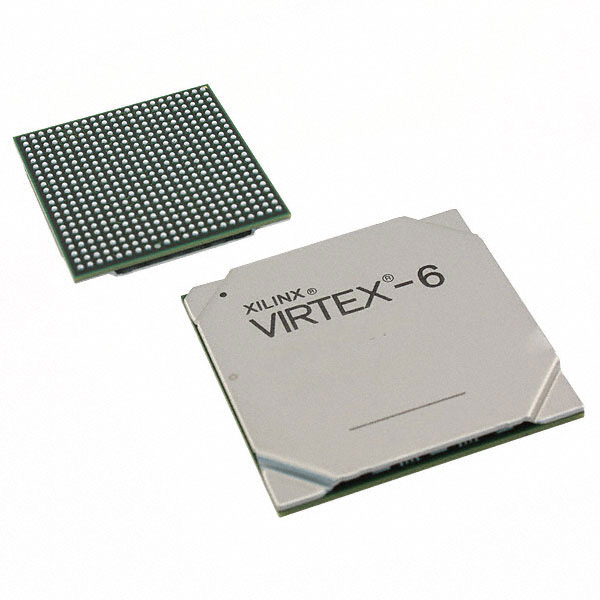

XC6VLX195T-L1FFG784C
| Part Description |
Virtex®-6 LXT Field Programmable Gate Array (FPGA) IC 400 12681216 199680 784-BBGA, FCBGA |
|---|---|
| Quantity | 217 Available (as of October 8, 2026) |
| Product Category | Field Programmable Gate Array (FPGA) |
|---|---|
| Manufacturer | AMD |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 12 Weeks |
| Datasheet |
Specifications & Environmental
| Device Package | 784-FCBGA (29x29) | Grade | Commercial | Operating Temperature | 0°C – 85°C | ||
|---|---|---|---|---|---|---|---|
| Package / Case | 784-BBGA, FCBGA | Number of I/O | 400 | Voltage | 870 mV - 930 mV | ||
| Mounting Method | Surface Mount | RoHS Compliance | ROHS3 Compliant | REACH Compliance | REACH Unaffected | ||
| Moisture Sensitivity Level | 4 (72 Hours) | Number of LABs/CLBs | 15600 | Number of Logic Elements/Cells | 199680 | ||
| Number of Gates | N/A | ECCN | 3A991D | HTS Code | 8542.39.0001 | ||
| Qualification | N/A | Total RAM Bits | 12681216 |
Overview of XC6VLX195T-L1FFG784C – Virtex®-6 LXT Field Programmable Gate Array (FPGA)
The XC6VLX195T-L1FFG784C is a Virtex®-6 LXT Field Programmable Gate Array (FPGA) in a 784-FCBGA package. It provides a high logic element count and substantial embedded RAM in a surface-mount FCBGA footprint suitable for commercial-grade programmable logic designs.
Key on-chip resources include 15,600 CLBs (199,680 logic elements), approximately 12.68 Mbits of embedded memory, and 400 I/O pins, enabling dense digital integration where programmable logic, memory, and I/O capacity are required.
Key Features
- Core Logic — 15,600 CLBs delivering 199,680 logic elements for large-scale programmable logic implementations.
- Embedded Memory — Approximately 12.68 Mbits of on-chip RAM (12,681,216 total RAM bits) to support buffering, state storage, and on-chip data processing.
- I/O Capacity — 400 I/O pins to support multiple interfaces and high pin-count designs.
- Package and Mounting — 784-FCBGA (29 × 29) package case with surface-mount mounting type for compact board-level integration.
- Power Supply — Operating supply range of 870 mV to 930 mV to define power design and sequencing requirements.
- Operating Conditions — Commercial grade with an operating temperature range of 0 °C to 85 °C.
- Compliance — RoHS compliant.
Unique Advantages
- High logic capacity: 199,680 logic elements enable consolidation of complex digital functions into a single device, reducing component count.
- Substantial on-chip memory: Approximately 12.68 Mbits of embedded RAM supports large buffers and local data storage without relying solely on external memory.
- Extensive I/O: 400 I/O pins provide flexibility for multi-protocol interfacing and high-density connectivity on a single package.
- Compact FCBGA package: The 784-FCBGA (29 × 29) surface-mount package helps save board area while supporting a high pin count.
- Defined supply window: The 870–930 mV supply range gives clear parameters for power delivery and sequencing in system design.
- Commercial and RoHS compliant: Designed for commercial applications and compliant with RoHS requirements for lead-free manufacturing processes.
Why Choose XC6VLX195T-L1FFG784C?
The XC6VLX195T-L1FFG784C positions itself as a high-density Virtex®-6 LXT FPGA option for commercial designs that require large logic capacity, significant embedded RAM, and a high number of I/O pins in a compact FCBGA package. Its combination of CLB count, logic elements, on-chip memory, and 400 I/O make it suitable for systems that consolidate multiple digital functions into a single programmable device.
Choose this device when your design priorities include integrating substantial programmable logic and on-chip memory within a defined commercial operating range and compact surface-mount package.
Request a quote or submit an inquiry to receive pricing and availability for the XC6VLX195T-L1FFG784C.
