XC7A12T-1CPG238I

The XC7A12T-1CPG238I is an Artix-7 Field Programmable Gate Array (FPGA) IC manufactured by AMD. It provides a balance of programmable logic capacity, embedded memory, and I/O count in a compact 238‑LFBGA package targeted at designs that require reconfigurable logic with industrial-grade operating range and RoHS compliance.

Key attributes include 12,800 logic elements, approximately 0.74 Mbits of on-chip RAM, 106 user I/O pins, a low-voltage core supply range (0.95 V to 1.05 V), and an industrial operating temperature range of −40 °C to 100 °C.

Key Features

• Core Architecture  Artix-7 FPGA silicon delivered by AMD for programmable logic implementations with 12,800 logic elements to implement custom digital functions.
• Embedded Memory  Approximately 0.74 Mbits of on-chip RAM to support buffering, state storage, and small-scale data processing without external memory.
• User I/O  106 available I/O pins to interface with peripherals, sensors, and external devices in a variety of digital configurations.
• Power  Core supply voltage range of 0.95 V to 1.05 V for low-voltage system integration and power budgeting.

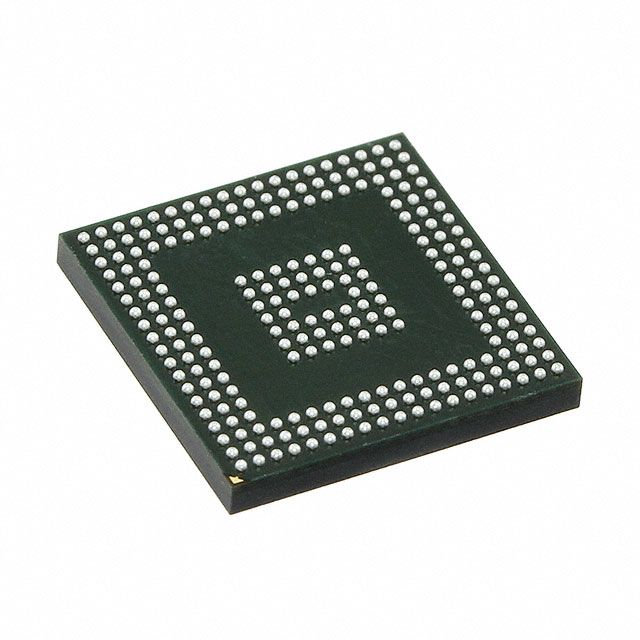

• Package & Mounting  238‑LFBGA (CSPBGA) supplier package (238‑CSBGA, 10×10) in a surface-mount form factor for compact PCB layouts.
• Operating Range & Grade  Industrial grade device rated for operation from −40 °C to 100 °C and supplied as RoHS compliant.

Typical Applications

• Industrial Control  Programmable logic for control systems and automation equipment that require industrial temperature operation and flexible I/O.
• Embedded Processing  On-chip logic and memory enabling custom datapath and control functions in embedded designs.
• I/O Aggregation and Protocol Bridging  Use the 106 I/O pins to consolidate signals and implement protocol translation or interface logic in compact systems.

Unique Advantages

• Moderate Logic Density: 12,800 logic elements provide the capacity for medium-complexity designs without the footprint of larger FPGAs.
• On‑Chip Memory: Approximately 0.74 Mbits of embedded RAM reduces reliance on external memory for buffering and small data stores.
• Wide Operating Temperature: Industrial range (−40 °C to 100 °C) supports deployment in temperature-challenging environments.
• Compact Surface‑Mount Package: 238‑LFBGA (10×10) enables high-density board integration while keeping I/O accessibility.
• Low-Voltage Core: 0.95 V to 1.05 V core supply simplifies power-rail planning for low-voltage systems.
• RoHS Compliant: Environmentally compliant construction for regulatory alignment in many markets.

Why Choose XC7A12T-1CPG238I?

The XC7A12T-1CPG238I is positioned for designers who need programmable logic with a practical blend of logic capacity, embedded memory, and substantial I/O in a compact industrial-grade package. Its specifications support medium-complexity custom logic, interface consolidation, and embedded processing tasks while operating across a broad temperature range.

For projects that require scalable, reconfigurable hardware with AMD Artix-7 silicon qualities—combined with a compact 238‑LFBGA footprint and RoHS compliance—this device offers a reliable platform for industrial and embedded designs.

If you would like pricing, availability, or a quote for XC7A12T-1CPG238I, submit a quote request or contact sales for further assistance.
