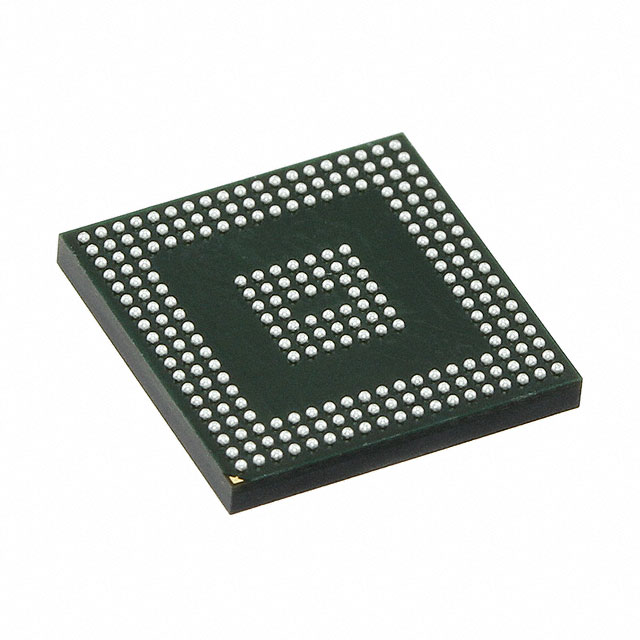

XC7A12T-1CPG236C

The XC7A12T-1CPG236C is an Artix-7 FPGA offered in a 238-pin LFBGA/CSPBGA package for commercial-grade applications. It provides a balance of programmable logic capacity, on-chip memory, and I/O count suitable for embedded designs that require configurable logic, moderate memory, and a compact surface-mount footprint.

Key Features

• Logic Capacity  12,800 logic elements to implement custom digital functions and state machines.
• Embedded Memory  Approximately 0.737 Mbits of on-chip RAM for data buffering, FIFOs, and small on-chip storage.
• I/O Resources  106 general-purpose I/O pins to interface with peripherals, sensors, and other system components.
• Package & Mounting  238-LFBGA / CSPBGA package (supplier package: 238-CSBGA, 10×10) in a surface-mount form factor for space-constrained PCBs.
• Power  Core supply range of 950 mV to 1.05 V to match system power rails and enable predictable power planning.
• Operational Grade & Temperature  Commercial grade with an operating temperature range of 0 °C to 85 °C for standard commercial environments.
• Environmental Compliance  RoHS compliant to meet common regulatory and assembly requirements.

Typical Applications

• Commercial Embedded Systems  Use the FPGA’s 12,800 logic elements and 106 I/Os for custom control, glue logic, and protocol handling in commercial equipment.
• Interface Aggregation  Consolidate multiple peripheral interfaces and perform protocol adaptation using on-chip logic and memory.
• Prototyping and Evaluation  Evaluate and iterate hardware designs where flexible, reprogrammable logic and a compact BGA package are required.

Unique Advantages

• Balanced Logic and Memory: 12,800 logic elements paired with approximately 0.737 Mbits of embedded RAM provide a practical mix for mid-density designs without external memory dependencies.
• Generous I/O Count: 106 I/Os enable direct connections to a wide range of peripherals and sensors, reducing the need for external interface ICs.
• Compact Surface-Mount Package: The 238-LFBGA/CSPBGA (238-CSBGA, 10×10) package supports high-density PCB layouts while remaining surface-mount compatible for standard assembly flows.
• Power Predictability: A defined core voltage range of 950 mV to 1.05 V supports consistent power-supply planning and thermal considerations.
• Commercial Grade Reliability: Rated for 0 °C to 85 °C operation and RoHS compliant, suitable for a broad set of commercial applications.

Why Choose XC7A12T-1CPG236C?

The XC7A12T-1CPG236C positions itself as a commercial-grade, mid-density FPGA option that combines 12,800 logic elements, approximately 0.737 Mbits of embedded RAM, and 106 I/Os in a compact 238-pin BGA package. This combination makes it well-suited for designers needing reprogrammable logic, moderate on-chip memory, and a high I/O count within a constrained PCB footprint.

Choose this Artix-7 device for development and production of commercial embedded systems where predictable power, surface-mount packaging, and RoHS compliance are required. Its specifications support scalable designs and straightforward integration into standard manufacturing flows.

Request a quote or submit a product inquiry to receive pricing, availability, and lead-time information for the XC7A12T-1CPG236C. Our team can assist with volume quotes and technical ordering details.
