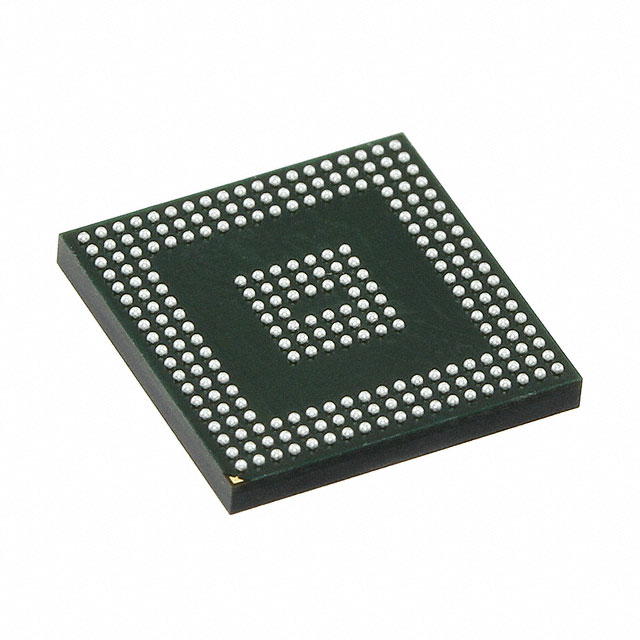

XC7A12T-1CPG238C

The XC7A12T-1CPG238C is an Artix-7 Field Programmable Gate Array (FPGA) IC offering 12,800 logic elements and approximately 0.74 Mbits of embedded memory (737,280 bits). It provides 106 user I/Os in a 238-LFBGA (10×10) surface-mount package and operates from a core voltage supply of 0.95 V to 1.05 V over a commercial temperature range of 0 °C to 85 °C.

Packaged in a compact 238-CSBGA format and compliant with RoHS, this commercial-grade FPGA suits designs that require mid-range logic capacity, on-chip memory, and a substantial I/O count in a space-efficient surface-mount form factor.

Key Features

• Core Logic — 12,800 logic elements provide mid-range programmable capacity for custom digital logic implementations.
• Embedded Memory — Approximately 0.74 Mbits (737,280 bits) of on-chip RAM for local buffering and state storage.
• I/O Resources — 106 user I/Os to support multiple external interfaces and signal connections.
• Power — Core voltage supply range from 0.95 V to 1.05 V for the FPGA core.
• Package & Mounting — 238-LFBGA (CSPBGA) package, supplier device package 238-CSBGA (10×10), surface-mount mounting type.
• Temperature & Grade — Commercial grade operation with an operating temperature range of 0 °C to 85 °C.
• Compliance — RoHS compliant for environmental and manufacturing requirements.

Unique Advantages

• Moderate logic density: 12,800 logic elements provide the capacity to integrate mid-range custom logic without external programmable devices.
• On-chip memory: Approximately 0.74 Mbits of embedded RAM supports local buffering and temporary data storage within the FPGA fabric.
• Substantial I/O count: 106 user I/Os enable flexible external connectivity for diverse digital interfaces and peripherals.
• Compact surface-mount package: 238-LFBGA (10×10) CSPBGA packaging delivers a space-efficient footprint for board-level integration.
• Commercial temperature suitability: Rated 0 °C to 85 °C for deployment in commercial-grade products and environments.
• RoHS compliant: Meets RoHS requirements for environmentally conscious manufacturing and assembly.

Why Choose XC7A12T-1CPG238C?

The XC7A12T-1CPG238C balances logic capacity, embedded memory, and a high I/O count in a compact 238-LFBGA surface-mount package, making it appropriate for commercial-grade designs that require moderate programmable logic integration. Its defined core voltage range and commercial temperature specification provide clear integration parameters for power and thermal planning.

With RoHS compliance and a CSPBGA package footprint, this Artix-7 FPGA offers a pragmatic option for engineers seeking a mid-range, board-mountable FPGA solution that combines programmable logic, on-chip RAM, and flexible I/O resources.

Request a quote or submit an inquiry to receive pricing and availability information for the XC7A12T-1CPG238C.
