XC7S6-1CPGA196I

The XC7S6-1CPGA196I is a Spartan®-7 Field Programmable Gate Array (FPGA) provided in a 196-TFBGA CSBGA package. It delivers 6,000 logic elements, approximately 0.184 Mbits of embedded memory, and 100 user I/O pins in a surface-mount format.

With an industrial-grade operating range and low core-voltage operation, this device is aimed at embedded and industrial applications that require moderate logic density, flexible I/O, and wide operating temperature support.

Key Features

• Logic Capacity  6,000 logic elements for implementing custom logic, control functions, and moderate-complexity digital designs.
• Embedded Memory  Approximately 0.184 Mbits of on-chip RAM to support buffers, FIFOs, and small data stores directly in the FPGA fabric.
• I/O  100 user I/Os provide flexible connectivity options for peripheral interfaces, sensors, and external devices.
• Power  Core voltage supply range of 0.950 V to 1.05 V to match low-voltage system domains.

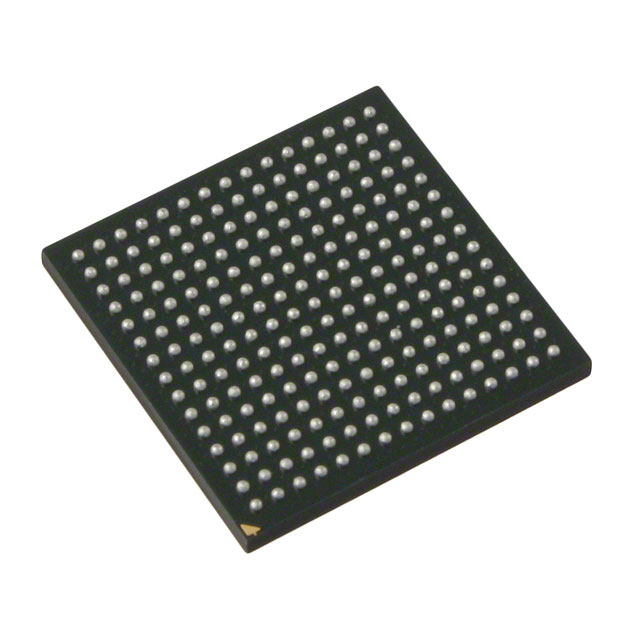

• Package & Mounting  196-TFBGA (CSBGA) package, supplier device package 196-CSPBGA (8×8), designed for surface-mount assembly.
• Temperature & Grade  Industrial-grade device rated for operation from −40 °C to 100 °C.
• Environmental Compliance  RoHS compliant for environmental and regulatory alignment.

Typical Applications

• Industrial control  Use in control and automation systems that require industrial temperature operation and moderate logic resources.
• Embedded processing glue logic  Implement custom interfaces, protocol bridging, and deterministic logic functions with available I/O and on-chip memory.
• Sensor and I/O aggregation  Aggregate signals from multiple sensors or peripherals using the device’s 100 I/Os and on-chip RAM for buffering.

Unique Advantages

• Right-sized logic capacity: 6,000 logic elements provide a balanced option for designs that need more than small microcontroller-based logic but less than large FPGA families.
• Compact BGA package: 196-TFBGA (8×8 CSPBGA) reduces PCB footprint while supporting surface-mount assembly.
• Low-voltage core operation: 0.95–1.05 V core supply aligns with modern low-voltage system rails to simplify power architecture.
• Industrial temperature rating: −40 °C to 100 °C supports deployment in temperature-demanding environments.
• Significant I/O capacity: 100 I/Os allow flexible interfacing to peripherals, sensors, and external devices without external multiplexers.
• RoHS compliant: Meets environmental compliance needs for many commercial and industrial programs.

Why Choose XC7S6-1CPGA196I?

The XC7S6-1CPGA196I positions itself as a compact, industrial-grade Spartan®-7 FPGA option for embedded and industrial designs that require moderate logic density, on-chip memory, and ample I/O in a small BGA package. Its low-voltage core and wide operating temperature make it suitable for products operating across a range of environmental conditions.

This device is appropriate for engineers and procurement teams targeting reliable, RoHS-compliant FPGA integration where board space, I/O count, and temperature resilience are key selection criteria. The specification set supports scalable designs that balance logic capability, memory, and system-level integration.

Request a quote or submit a purchase inquiry to obtain pricing and availability for the XC7S6-1CPGA196I.
