IS45S32200L-6TLA2-TR

The IS45S32200L-6TLA2-TR is a 64 Mbit volatile SDRAM organized as 2M × 32 with a parallel memory interface. It delivers synchronous DRAM performance with a 166 MHz clock rating and a 5.4 ns access time for designs that require deterministic parallel memory access.

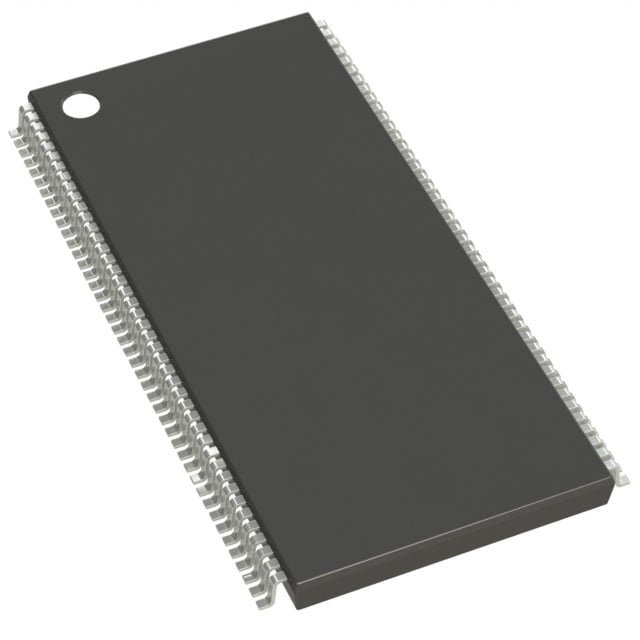

Designed for board-level integration, this device operates from a 3.0 V to 3.6 V supply and is offered in an 86‑TSOP II (86‑TFSOP, 10.16 mm width) package suited for compact system implementations across extended temperature ranges.

Key Features

• Memory Type & Capacity 64 Mbit SDRAM organized as 2M × 32, providing parallel DRAM storage suitable for systems requiring this density and organization.
• Performance 166 MHz clock frequency with a 5.4 ns access time for synchronous, low-latency data access in parallel memory architectures.
• Voltage Operates from 3.0 V to 3.6 V, supporting standard 3 V SDRAM supply domains.
• Package Supplied in an 86‑TSOP II (86‑TFSOP, 0.400" / 10.16 mm width) package for compact board footprint and surface-mount assembly.
• Temperature Range Rated for operation from −40°C to 105°C (TA), enabling use in applications with extended ambient temperature requirements.
• Interface Parallel memory interface suitable for systems that require direct parallel DRAM connections.

Typical Applications

• Parallel memory subsystems — Provides 64 Mbit of SDRAM in a 2M × 32 organization for systems that rely on parallel DRAM for data buffering or working memory.
• Industrial electronics — The −40°C to 105°C operating range and standard 3.0–3.6 V supply make it suitable for industrial environments requiring extended temperature tolerance.
• Board-level memory expansion — 86‑TSOP II package enables compact surface-mount integration for designs needing additional parallel DRAM capacity.

Unique Advantages

• Deterministic parallel access: 2M × 32 organization and parallel interface provide predictable memory behavior for systems designed around parallel SDRAM.
• Measurable performance: 166 MHz clock and 5.4 ns access time offer clear, verifiable timing characteristics for system timing budgets.
• Wide operating temperature: −40°C to 105°C rating supports deployment in thermally demanding environments.
• Standard 3 V supply: 3.0 V to 3.6 V operation aligns with common 3 V SDRAM power domains, simplifying power rail design.
• Compact TSOP II package: 86‑TSOP II (10.16 mm width) provides a small footprint for high-density board layouts.

Why Choose IS45S32200L-6TLA2-TR?

The IS45S32200L-6TLA2-TR positions itself as a straightforward, specification-driven SDRAM device for designs that require a 64 Mbit parallel memory solution with defined timing and voltage characteristics. Its combination of 166 MHz clock capability, 5.4 ns access time, and extended temperature rating makes it appropriate for systems where predictable parallel DRAM performance and environmental robustness are required.

This device is suited to engineers and procurement teams looking for a compact, board-mountable 86‑TSOP II SDRAM option that integrates into existing parallel memory architectures and adheres to clear electrical and thermal parameters.

Request a quote or submit an inquiry to obtain pricing, lead times, and availability for the IS45S32200L-6TLA2-TR.
