MT28F128J3BS-12 MET TR

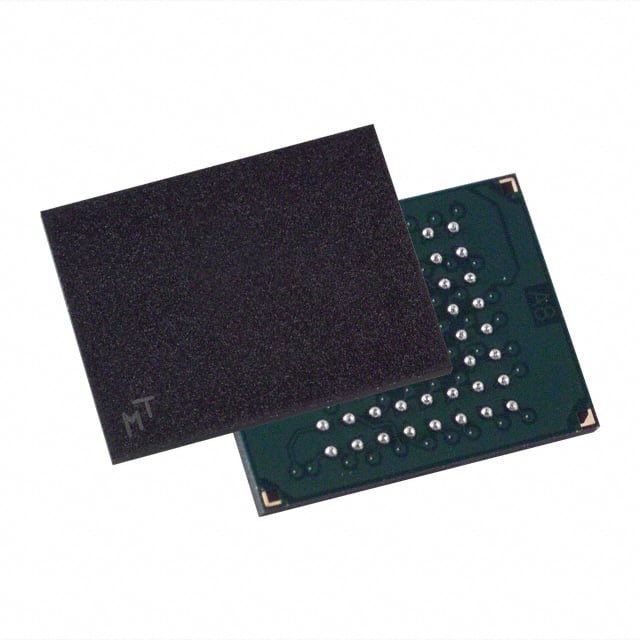

The MT28F128J3BS-12 MET TR is a 128 Mbit non-volatile flash memory device in a parallel interface, provided in a 64-ball FBGA (10×13) package. It is organized as 16M × 8 or 8M × 16 and supports asynchronous page-mode reads with specified 128Mb timing.

Key device attributes include a 2.7 V to 3.6 V supply range for operation and programming, an operating temperature range of −40°C to +85°C (TA), industry-standard pinout, and a suite of protection and suspend features for robust data integrity and system integration.

Key Features

• Memory Capacity & Organization  128 Mbit total capacity; memory organization options of 16M × 8 or 8M × 16 with 128 KB erase blocks (128Mb: one hundred twenty-eight 128KB blocks).
• Interface & Read Performance  Parallel interface with asynchronous page-mode reads; 128Mb read access time listed at 120 ns (with 25 ns page-mode timing noted in datasheet).
• Voltage & Programming  VCC, VCCQ, and VPEN operation and application programming supported from 2.7 V to 3.6 V.
• Package & Mounting  64-FBGA (10×13) supplier device package; 64-ball FBGA option (1.00 mm pitch) is offered for compact board-level mounting.
• Endurance & Reliability  Specified endurance of 100,000 erase cycles per block.
• Protection & Security  128-bit protection register, 64-bit unique device identifier, and 64-bit user-programmable OTP cells; enhanced data protection feature with VPEN = VSS and flexible sector locking options.
• Program/Erase Efficiency  Automatic write and erase algorithm and an effective programming throughput of 5.6 μs-per-byte using the write buffer; supports WRITE-to-BUFFER and byte/word program commands.
• Suspend/Resume Operations  Automatic suspend options including Block Erase Suspend-to-Read, Block Erase Suspend-to-Program, and Program Suspend-to-Read for improved system responsiveness during long operations.
• Standards & Compatibility  Common Flash Interface (CFI) and Scalable Command Set support; inputs and outputs are fully TTL-compatible with an industry-standard pinout.

Unique Advantages

• Deterministic read timing: Asynchronous page-mode read access times (120 ns for 128Mb) support predictable parallel read performance.
• Flexible data widths: Selectable organization as 16M × 8 or 8M × 16 to match system bus width and simplify board-level integration.
• Wide supply range: 2.7 V to 3.6 V operation and programming reduces the need for additional supply rails in 3 V-class systems.
• Extended temperature support: Specified −40°C to +85°C operating range for deployment in extended-temperature environments.
• Comprehensive protection features: Multi-level protection including protection register, unique ID, OTP cells, and sector locking for controlled firmware and data security.
• Compact FBGA footprint: 64-ball FBGA (10×13) package provides a small board area for high-density designs.

Why Choose MT28F128J3BS-12 MET TR?

The MT28F128J3BS-12 MET TR delivers 128 Mbit of parallel flash storage with a combination of predictable read performance, robust endurance, and comprehensive protection features. Its support for CFI and a scalable command set, along with suspend/resume capabilities and automatic program/erase algorithms, makes it suitable for designs that require managed non-volatile storage with deterministic behavior.

Available in a compact 64-FBGA (10×13) package and rated for a 2.7 V to 3.6 V supply and −40°C to +85°C operation, this Micron flash device is positioned for embedded systems that need parallel flash memory with block-level protection and identity features for inventory and security handling.

Request a quote or submit an RFQ to evaluate MT28F128J3BS-12 MET TR for your design needs; refer to the product datasheet for full technical details and command descriptions.
