MT29F32G08AECBBH1-12:B

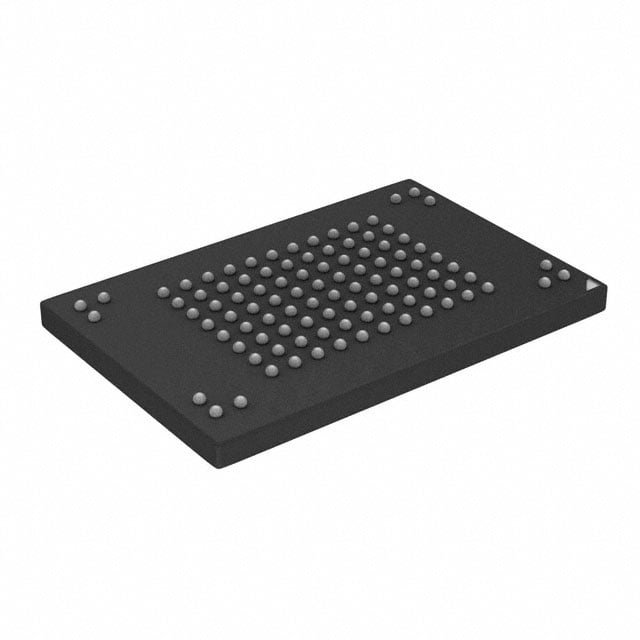

The MT29F32G08AECBBH1-12:B is a 32 Gbit non-volatile NAND flash memory in a 100-ball VBGA (12×18) package. It implements NAND flash architecture with a 4G × 8 memory organization and supports parallel interface operation for embedded storage applications.

This device combines high-density NAND storage with a broad operating voltage range (2.7 V–3.6 V) and a commercial operating temperature range (0°C to +70°C), making it suitable for designs that require compact, on-board non-volatile memory in space-constrained packages.

Key Features

• Memory Type & Density — 32 Gbit NAND flash organized as 4G × 8, providing high-density non-volatile storage in a single device.
• Package — 100-VBGA (12×18) package offers a compact BGA footprint for space-constrained board layouts.
• Interface — Parallel memory interface with support for both asynchronous and synchronous I/O modes; ONFI 2.2-compliant signaling is included in the product family.
• Performance — Synchronous I/O performance up to timing mode 5 with read/write throughput per pin up to 200 MT/s (synchronous) and up to 50 MT/s (asynchronous); product-level clock frequency listed at 83 MHz.
• Memory Organization & Block Structure — Page size (x8) 8,640 bytes (8,192 + 448), block size 128 pages (1,024K + 56K bytes); device contains 4,096 blocks for the 32Gb density.
• Advanced Command Set — Supports program cache, read cache (sequential and random), OTP mode, multi-plane commands, multi-LUN operations, read unique ID, and copyback operations.
• Power — Operating voltage range VCC: 2.7–3.6 V (VCCQ supported ranges noted in datasheet).
• Reliability & Endurance — Endurance specified at 80,000 program/erase cycles and data retention consistent with JESD47G requirements as noted in the datasheet.
• Operating Temperature — Commercial grade operation from 0°C to +70°C (TA).

Typical Applications

• Embedded Storage — On-board non-volatile storage for embedded controllers and systems requiring 32 Gbit of NAND capacity in a compact package.
• Firmware & System Images — Storage of firmware, boot loaders, and system images where program/erase endurance and data retention are important.
• Data Logging — Local non-volatile data capture where a parallel NAND interface and the device’s capacity meet system needs.

Unique Advantages

• High-density in a compact BGA — 32 Gbit capacity in a 100-ball VBGA (12×18) package reduces board area compared with multi-device solutions.
• Flexible I/O modes — Support for asynchronous and synchronous operation (ONFI 2.2 family features) enables designers to choose performance and timing appropriate to system requirements.
• Advanced NAND features — Program/read caches, multi-plane and multi-LUN commands, OTP mode, and copyback capability simplify high-throughput and advanced memory management strategies.
• Industry-standard voltage range — 2.7 V–3.6 V supply compatibility fits common system power rails for straightforward integration.
• Documented endurance and retention — Endurance (80,000 P/E cycles) and JESD47G-aligned retention statements provide measurable reliability characteristics for design validation.

Why Choose MT29F32G08AECBBH1-12:B?

The MT29F32G08AECBBH1-12:B positions itself as a high-density, feature-rich parallel NAND flash device suitable for designs that require compact non-volatile storage with documented endurance and advanced NAND command capabilities. Its 100-VBGA package and 32 Gbit capacity help reduce board complexity while enabling standard-voltage operation.

This part is appropriate for engineers specifying on-board NAND for embedded systems, firmware storage, or data-logging applications that benefit from flexible I/O modes, advanced cache and multi-plane operations, and clearly stated endurance and retention characteristics.

Request a quote or submit a pricing inquiry to receive availability, lead-time, and ordering information for the MT29F32G08AECBBH1-12:B.
