MT29F512G08EBHAFJ4-3T:A

The MT29F512G08EBHAFJ4-3T:A is a 512 Gbit non-volatile NAND flash memory device implemented in TLC technology and organized as 64G × 8. It provides parallel flash memory with a 333 MHz clock frequency and supports a 2.5 V to 3.6 V supply range in a 132-VBGA (12×18) package.

This device is intended for designs requiring high-density parallel NAND flash storage with defined operating conditions including a 0°C to 70°C ambient temperature range.

Key Features

• Memory Type & Technology Non-volatile NAND flash (TLC) offering 512 Gbit of storage capacity, organized as 64G × 8 for byte-oriented access.
• Interface & Performance Parallel memory interface with a specified clock frequency of 333 MHz for integration into parallel flash memory systems.
• Voltage Range Operates across a 2.5 V to 3.6 V supply range to accommodate a variety of system power rails.

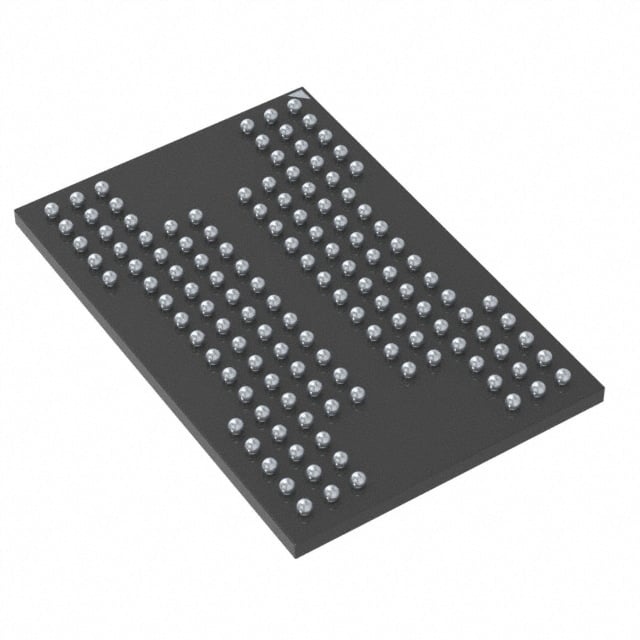

• Package Supplied in a 132-VBGA package (12×18) suitable for space-constrained board designs.
• Operating Temperature Rated for ambient operation from 0°C to 70°C (TA), for standard temperature-range applications.
• Memory Format & Organization Flash memory formatted as parallel NAND with 512 Gbit total capacity and 64G × 8 organization to support byte-wide data paths.

Typical Applications

• Embedded Storage Systems Provides high-density non-volatile storage where parallel NAND is required for bulk data retention.
• Consumer Electronics Suitable for devices that require large-capacity flash in a compact 132-VBGA package and standard temperature operation.
• Industrial and Commercial Equipment Used in systems that need 512 Gbit NAND storage with a wide supply voltage tolerance (2.5 V–3.6 V).

Unique Advantages

• High storage density: 512 Gbit capacity supports large data and firmware storage needs without multiple devices.
• Parallel interface with defined clock: 333 MHz clock frequency enables predictable timing for parallel memory integration.
• Flexible supply range: 2.5 V to 3.6 V operation allows compatibility with a range of system power architectures.
• Compact VBGA package: 132-VBGA (12×18) package reduces PCB area while providing required I/O density.
• Byte-oriented memory organization: 64G × 8 arrangement supports byte-wide access patterns common in parallel flash designs.

Why Choose MT29F512G08EBHAFJ4-3T:A?

The MT29F512G08EBHAFJ4-3T:A is positioned for designs that require a high-density parallel NAND flash device in a compact 132-VBGA footprint, with clearly specified electrical and environmental limits. Its 512 Gbit TLC architecture and 64G × 8 organization provide a straightforward integration path for systems needing substantial non-volatile storage.

This device is suitable for engineers and procurement teams targeting scalable storage capacity within defined operating conditions and voltage ranges, offering a combination of capacity, interface clarity, and package density for long-term deployment in standard-temperature applications.

Request a quote or contact sales to discuss pricing, availability and to obtain ordering information for the MT29F512G08EBHAFJ4-3T:A.
