MT47H32M16HR-25E:G

The MT47H32M16HR-25E:G is a volatile DDR2 SDRAM device providing 512 Mbit of parallel DRAM organized as 32M × 16. It implements DDR2 architecture with a parallel memory interface in an 84-ball FBGA package.

Key electrical and timing characteristics include a 400 MHz clock frequency, 400 ps access time, 15 ns write cycle time for word page operations, and a supply voltage range of 1.7 V to 1.9 V, with an operating temperature range of 0°C to 85°C (TC).

Key Features

• Memory Type and Organization DDR2 SDRAM, volatile memory organized as 32M × 16 delivering a total of 512 Mbit.
• Performance 400 MHz clock frequency with a 400 ps access time and 15 ns write cycle time (word page).
• Power Operates from a 1.7 V to 1.9 V supply voltage range.

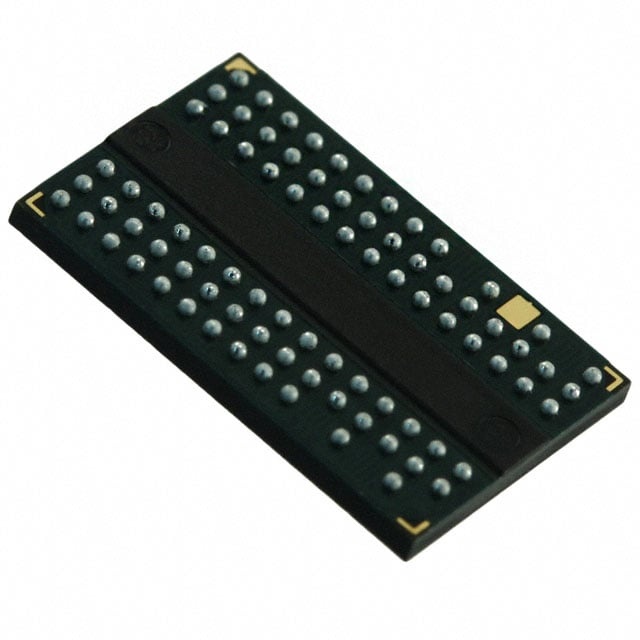

• Package 84-TFBGA / 84-FBGA package with an 8 × 12.5 mm ball array footprint.
• Interface Parallel memory interface for conventional DDR2 system integration.
• Environmental Range Specified operating temperature range: 0°C to 85°C (TC).
• Memory Format DRAM (volatile) device intended for parallel DDR2 memory applications.

Unique Advantages

• Standard DDR2 timing characteristics: 400 MHz clock and 400 ps access time provide clearly defined DDR2 timing for system designers.
• 512 Mbit capacity in 32M × 16 organization: Fixed memory organization simplifies addressing and memory map planning in parallel systems.
• Narrow supply range: 1.7 V to 1.9 V operation aligns with systems designed for DDR2 voltage domains.
• FBGA package footprint: 84-FBGA (8 × 12.5 mm) package provides a defined ball-count and footprint for PCB layout and assembly processes.
• Specified commercial temperature range: 0°C to 85°C (TC) supports a range of temperature environments consistent with commercial-grade designs.

Why Choose IC DRAM 512MBIT PARALLEL 84FBGA?

The MT47H32M16HR-25E:G positions itself as a straightforward 512 Mbit DDR2 parallel DRAM option with explicit electrical and timing specifications—400 MHz clock, 400 ps access time, 15 ns write cycle time, and a 1.7 V–1.9 V supply window—paired with an 84-ball FBGA package (8 × 12.5 mm). Those attributes make it suitable for designs that require a defined DDR2 memory device with standard timing and packaging.

This device is appropriate for engineers and procurement teams specifying a 512 Mbit DDR2 DRAM with a parallel interface and commercial temperature rating, providing a clear set of parameters for system integration and layout planning.

Please request a quote or contact sales to discuss pricing, availability, and ordering for the MT47H32M16HR-25E:G.
