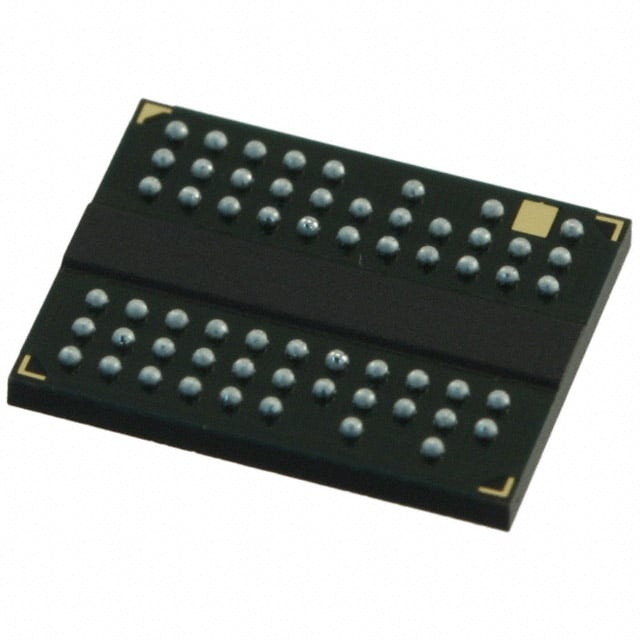

MT47H64M8CF-25E:G

IC DRAM 512MBIT PARALLEL 60FBGA
Part Description

IC DRAM 512MBIT PARALLEL 60FBGA

Quantity 919 Available (as of May 5, 2026)
Product CategoryMemory
ManufacturerMicron Technology Inc.
Manufacturing StatusObsolete
Manufacturer Standard Lead TimeRFQ
Datasheet

Specifications & Environmental

Device Package60-FBGA (8x10)Memory FormatDRAMTechnologySDRAM - DDR2
Memory Size512 MbitAccess Time400 psGradeCommercial (Extended)
Clock Frequency400 MHzVoltage1.7V ~ 1.9VMemory TypeVolatile
Operating Temperature0°C ~ 85°C (TC)Write Cycle Time Word Page15 nsPackaging60-TFBGA
Mounting MethodVolatileMemory InterfaceParallelMemory Organization64M x 8
Moisture Sensitivity Level3 (168 Hours)RoHS ComplianceROHS3 CompliantREACH ComplianceREACH Unaffected
QualificationN/AECCNEAR99HTS Code8542.32.0028

Overview of MT47H64M8CF-25E:G – IC DRAM 512MBIT PARALLEL 60FBGA

The MT47H64M8CF-25E:G is a 512 Mbit DDR2 SDRAM organized as 64M × 8, offered by Micron Technology Inc. It implements DDR2 architecture with a parallel memory interface and is supplied in a 60-ball TFBGA (8 × 10 mm) package.

This device targets designs that require a 512 Mbit volatile DDR2 memory device with JEDEC 1.8 V I/O, programmable timing options, and compact FBGA mounting for board-level integration.

Key Features

  • Core Architecture  DDR2 SDRAM with 4n-bit prefetch architecture and an internal DLL to align DQ and DQS transitions with CK.
  • Memory Organization  512 Mbit total capacity configured as 64M × 8 with four internal banks for concurrent operation.
  • Performance & Timing  Rated with a 400 MHz clock frequency and 400 ps access time. Timing grade -25E corresponds to a 2.5 ns cycle time @ CL = 5 (DDR2-800) per the datasheet options.
  • Interface & Signals  JEDEC-standard 1.8 V I/O (VDD = VDDQ = +1.8 V ±0.1 V), SSTL_18-compatible signaling, differential data strobe (DQS/DQS#) option and duplicate output strobe (RDQS) option for x8.
  • Power & Timing Controls  Voltage supply range specified 1.7 V to 1.9 V; adjustable data-output drive strength and on-die termination (ODT) supported.
  • Memory Operations  Selectable burst lengths (4 or 8), programmable CAS latency and posted CAS additive latency; WRITE latency = READ latency − 1 CK.
  • Refresh & Reliability Features  64 ms / 8192-cycle refresh operation and support for JEDEC clock jitter specifications.
  • Package & Mounting  60-ball FBGA package (8 mm × 10 mm) in a 60-TFBGA configuration for compact board-level mounting.
  • Operating Range  Commercial operating temperature specified as 0°C to 85°C (T_C).
  • Standards & Compliance  Datasheet lists RoHS-compliant options and JEDEC-compliant timing and signaling support.
  • Timing Options  Multiple published speed grades and cycle-time options (examples in datasheet include -25E: 2.5 ns @ CL = 5 / DDR2-800).

Typical Applications

  • Parallel DDR2 memory subsystems  Used where a 512 Mbit DDR2 SDRAM with a parallel interface and x8 organization is required on the board.
  • Board-level memory expansion  Compact 60-ball FBGA mounting provides a space-efficient option for adding DDR2 memory to module or system PCBs.
  • Designs requiring 1.8 V I/O  Suitable for systems using JEDEC-standard 1.8 V signaling (SSTL_18-compatible) and differential DQS timing.

Unique Advantages

  • Standard JEDEC 1.8 V I/O:  VDD and VDDQ = +1.8 V ±0.1 V simplifies integration with 1.8 V memory buses and SSTL_18-compatible systems.
  • Flexible timing grades:  Offered with multiple speed-grade options (including -25E) to match system performance and latency requirements.
  • Signal integrity controls:  On-die termination and adjustable drive strength help optimize signal performance on-board.
  • Compact FBGA package:  60-ball (8 mm × 10 mm) TFBGA package enables high-density board layouts and reliable BGA mounting.
  • DDR2 feature set:  Differential DQS, 4 internal banks, DLL alignment, selectable burst lengths and programmable CAS latency provide predictable DDR2 behavior for system designers.
  • Commercial temperature rating:  Specified for 0°C to 85°C operation for commercial-grade system deployments.

Why Choose IC DRAM 512MBIT PARALLEL 60FBGA?

The MT47H64M8CF-25E:G delivers a Micron 512 Mbit DDR2 SDRAM solution with x8 organization, JEDEC 1.8 V I/O compatibility, and a compact 60-ball FBGA package. Its supported timing grades, on-die termination, and adjustable drive strength provide designers with the control needed to match system timing and signal integrity requirements.

This device is appropriate for designs that need a board-mounted DDR2 memory component with defined commercial temperature operation and published timing options. The combination of DDR2 architecture features and compact FBGA mounting supports integration into space-constrained applications requiring a reliable 512 Mbit volatile memory element.
