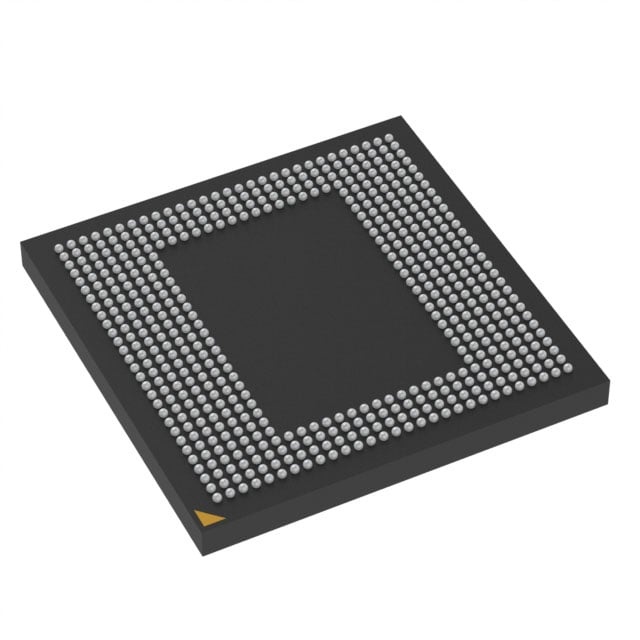

MT53E512M64D2HJ-046 WT:B TR

IC DRAM 32GBIT PAR 556WFBGA
Part Description

IC DRAM 32GBIT PAR 556WFBGA

Quantity 616 Available (as of May 5, 2026)
Product CategoryMemory
ManufacturerMicron Technology Inc.
Manufacturing StatusActive
Manufacturer Standard Lead Time6 Weeks
Datasheet

Specifications & Environmental

Device Package556-WFBGA (12.4x12.4)Memory FormatDRAMTechnologySDRAM - Mobile LPDDR4
Memory Size32 GbitAccess Time3.5 nsGradeIndustrial
Clock Frequency2.133 GHzVoltage1.06V ~ 1.17VMemory TypeVolatile
Operating Temperature-25°C ~ 85°C (TC)Write Cycle Time Word Page18 nsPackaging556-TFBGA
Mounting MethodVolatileMemory InterfaceParallelMemory Organization512M x 64
Moisture Sensitivity LevelN/ARoHS ComplianceROHS3 CompliantREACH ComplianceREACH Unaffected
QualificationN/AECCNN/AHTS CodeN/A

Overview of MT53E512M64D2HJ-046 WT:B TR – IC DRAM 32GBIT PAR 556WFBGA

The MT53E512M64D2HJ-046 WT:B TR is a 32 Gbit volatile DRAM device implemented as LPDDR4/LPDDR4X mobile SDRAM in a 556-ball WFBGA package (12.4 × 12.4 mm). It implements a 512M × 64 memory organization with a parallel memory interface and is specified for mobile LPDDR4 systems requiring high-density memory.

Designed for low-voltage operation and high data throughput, the device provides programmable latencies, banked refresh capabilities and on-die power-management features to support compact, power-conscious system designs that operate across an industrial temperature window.

Key Features

  • Core / Architecture – LPDDR4/LPDDR4X SDRAM architecture with 16n prefetch DDR and multiple internal banks (8 internal banks per channel) to support concurrent operation.
  • Memory Organization – 32 Gbit total capacity arranged as 512M × 64; device configuration reflects multi-die packaging options (D2).
  • Performance – Clock rate 2133 MHz (data rate per pin 4266 Mb/s) with up to 8.5 GB/s per die ×16 channel throughput capability noted in the datasheet.
  • Power – Ultra-low-voltage supplies documented in the datasheet: VDD1 = 1.70–1.95 V (nominal 1.80 V), VDD2 = 1.06–1.17 V (nominal 1.10 V), VDDQ options 0.57–0.65 V or 1.06–1.17 V.
  • Timing and Latency – Write cycle time (word page) 18 ns; programmable READ and WRITE latencies (RL/WL) and selectable burst lengths (BL = 16, 32) for flexible timing trade-offs.
  • Power and Thermal Management – On-chip temperature sensor, partial-array self refresh (PASR) and directed per-bank refresh to optimize refresh and self-refresh behavior.
  • Interface and Signal Features – Parallel memory interface with single-data-rate CMD/ADR entry, bidirectional/differential data strobe per byte lane, and selectable output drive strength (DS).
  • Package & Temperature – 556-ball WFBGA package (12.4 × 12.4 mm); operating temperature range −25 °C to +85 °C (WT option).
  • System Options – Programmable VSS (ODT) termination, programmable and on-the-fly burst lengths, clock-stop capability and DBI/DBI-enabled read/write latency options documented for the -046 speed grade.

Typical Applications

  • Mobile memory subsystems – High-density LPDDR4/LPDDR4X memory for mobile-oriented designs that require parallel LPDDR4 memory integration.
  • Embedded memory in compact systems – Use where a 32 Gbit volatile memory footprint in a 12.4 × 12.4 mm WFBGA package is required.
  • High-throughput data buffers – Applications leveraging the 2133 MHz clock rate and 4266 Mb/s per-pin data rate for sustained data transfer.

Unique Advantages

  • High-density 32 Gbit integration: 512M × 64 organization in a 556-ball WFBGA (12.4 × 12.4 mm) minimizes board area for large volatile memory requirements.
  • Low-voltage operation: Supports VDD2 = 1.06–1.17 V and VDDQ low-voltage options to reduce core and I/O power consumption consistent with mobile LPDDR4 requirements.
  • High data rate capability: 2133 MHz clock (4266 Mb/s per pin) enables high throughput for bandwidth-sensitive designs.
  • Flexible timing and burst control: Programmable RL/WL and selectable burst lengths (BL = 16, 32) allow timing optimization for system trade-offs between latency and throughput.
  • Built-in power and refresh controls: On-chip temperature sensor, partial-array self-refresh and directed per-bank refresh provide finer control of refresh behavior and self-refresh power.
  • Package and thermal rating: Rated for −25 °C to +85 °C operation in a 556-WFBGA package suitable for compact system integration.

Why Choose MT53E512M64D2HJ-046 WT:B TR?

The MT53E512M64D2HJ-046 WT:B TR positions itself as a high-density, mobile LPDDR4/LPDDR4X SDRAM device that combines low-voltage operation, high per-pin data rates and flexible timing features. Its 512M × 64 organization and 32 Gbit capacity in a compact 556-WFBGA package make it suitable for designs that require substantial volatile memory without a large footprint.

With on-die power-management features, programmable latencies and bank-level refresh controls, the device supports designers seeking to balance throughput, latency and power across a variety of compact LPDDR4-based systems operating from −25 °C to +85 °C.

Please request a quote or contact sales to discuss availability, lead times and technical support for the MT53E512M64D2HJ-046 WT:B TR.
