MTFC64GASAONS-AIT ES TR

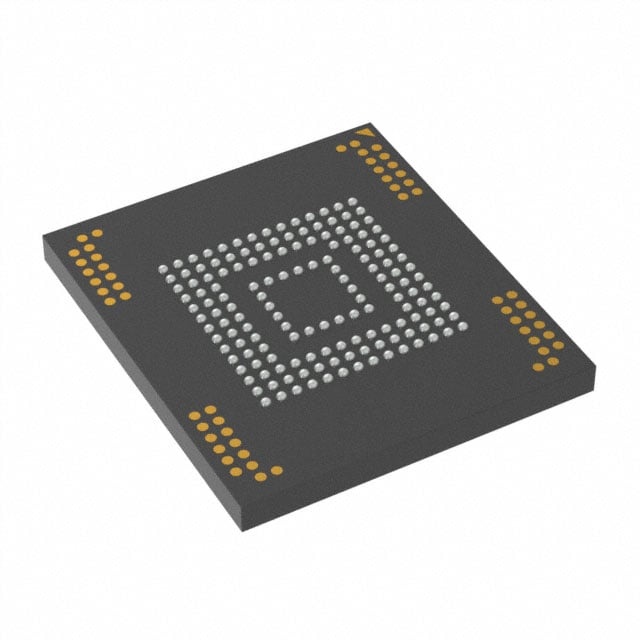

The MTFC64GASAONS-AIT ES TR is a 512 Gbit non-volatile NAND Flash memory device in a 153-ball TFBGA package (11.5 × 13 mm). The device combines NAND Flash memory with an integrated controller according to the supplied product documentation, providing high-density solid-state storage in a compact BGA footprint.

Designed for embedded storage and boot applications, the device offers multi-gigabit capacity, a 64G × 8 organization, MMC interface listing in the product specifications, and a range of system-level features described in the device documentation such as high-speed interfaces, boot operation, and replay-protected memory block support.

Key Features

• Memory Capacity & Organization — 512 Gbit total capacity organized as 64G × 8 for high-density local storage.
• Memory Technology — Non-volatile NAND Flash allowing persistent data retention without power.
• Interface & Controller — Memory interface listed as MMC in the product specifications; datasheet content references an integrated Universal Flash Storage (UFS) controller and related UFS features.
• Performance & Signaling — Datasheet notes advanced multi-signal interface attributes including differential I/O, support for two lanes, and high-speed gears (Gear 1/2/3) described in the device documentation.
• Power — Main supply VCC operating range 2.7 V to 3.6 V; documentation also references VCCQ2 of 1.7 V to 1.95 V for I/O domains.
• Clock — Clock frequency listed at 52 MHz in the product specifications.
• System Features — Datasheet lists boot operation (high-speed boot), permanent and power-on write protection, sleep mode, background operation, command queuing, cache and reliable write/erase/discard operations.
• Security & Protected Storage — Supports a replay-protected memory block (RPMB) as noted in the device documentation for authenticated or protected data storage.
• Package & Handling — 153-ball JEDEC TFBGA (11.5 × 13 mm) package; documentation lists BGA package with MSL3 handling characteristics and RoHS certification.
• Operating Temperature — Specified operating ambient temperature range: −40 °C to 85 °C (TA).
• Reliability Notes — Documentation references retention testing compliant with AEC-Q100-005 for retention characteristics and package compliance statements in the datasheet.

Typical Applications

• Embedded storage and system boot — High-speed boot operation and integrated controller features support on-board boot and local firmware storage.
• Protected data storage — Replay-protected memory block (RPMB) enables authenticated or secure storage regions for keys or secure counters.
• Compact high-density storage — 512 Gbit capacity in a 153-ball TFBGA package is suitable where board space is constrained but large local storage is required.

Unique Advantages

• High-density storage in a compact package: 512 Gbit organized as 64G × 8 in a 153-TFBGA (11.5 × 13 mm) provides significant capacity with a small PCB footprint.
• Flexible power domains: Wide VCC range (2.7–3.6 V) with documented VCCQ2 range (1.7–1.95 V) supports diverse system power architectures.
• Integrated controller and system features: Datasheet-described UFS controller functionality and features such as boot operation, command queuing, cache and background operations simplify system integration.
• Protected storage support: Built-in RPMB provides a hardware-managed region for authenticated or protected data use cases.
• Documented reliability and package handling: Datasheet lists retention compliance to AEC-Q100-005 and package-level RoHS and MSL3 statements, supporting reliability planning and assembly considerations.
• High-speed signaling options: Documentation references differential I/O and multi-gear multi-lane support, enabling higher throughput modes where implemented.

Why Choose MTFC64GASAONS-AIT ES TR?

The MTFC64GASAONS-AIT ES TR delivers large-format non-volatile NAND Flash storage in a compact 153-TFBGA package with an integrated controller and system-level features documented for boot, secure storage, and high-speed operation. Its supply voltage ranges, documented I/O domain voltages, and specified operating temperature range make it suitable for a variety of embedded storage designs requiring high capacity and protected regions.

Engineers specifying high-density onboard storage will benefit from the device’s capacity, package density, and the controller-level features described in the product documentation, while reliability-relevant notes such as AEC-Q100-005 retention compliance, RoHS, and MSL3 package handling information support long-term design planning.

If you would like pricing or availability information, request a quote or submit a quote request and our team will respond with details and lead-time information.
