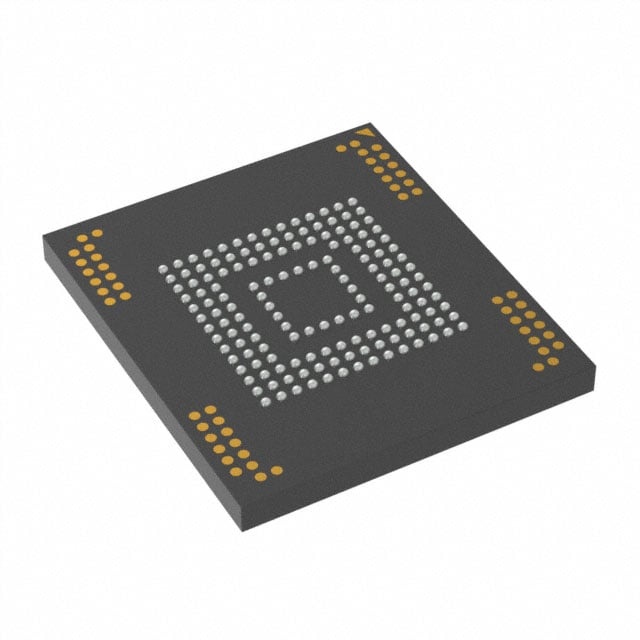

MTFC64GASAONS-IT
| Part Description |
IC FLASH 512GBIT UFS2.1 153TFBGA |
|---|---|
| Quantity | 295 Available (as of May 5, 2026) |
| Product Category | Memory |
|---|---|
| Manufacturer | Micron Technology Inc. |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | RFQ |
| Datasheet |
Specifications & Environmental
| Device Package | 153-TFBGA (11.5x13) | Memory Format | FLASH | Technology | FLASH - NAND | ||
|---|---|---|---|---|---|---|---|
| Memory Size | 512 Gbit | Access Time | N/A | Grade | Automotive | ||
| Clock Frequency | 52 MHz | Voltage | 2.7V ~ 3.6V | Memory Type | Non-Volatile | ||
| Operating Temperature | -40°C ~ 95°C (TC) | Write Cycle Time Word Page | N/A | Packaging | 153-TFBGA | ||
| Mounting Method | Non-Volatile | Memory Interface | UFS2.1 | Memory Organization | 64G x 8 | ||
| Moisture Sensitivity Level | 3 (168 Hours) | RoHS Compliance | ROHS3 Compliant | REACH Compliance | REACH Unaffected | ||
| Qualification | N/A | ECCN | 3A991B1A | HTS Code | 8542.32.0071 |
Overview of MTFC64GASAONS-IT – IC FLASH 512GBIT UFS2.1 153TFBGA
The MTFC64GASAONS-IT is a 512 Gbit non-volatile NAND flash memory module implemented as a UFS v2.1 device in a 153-ball TFBGA package. It integrates a UFS controller with NAND Flash to provide high-density embedded storage for industrial and embedded designs.
Designed for systems requiring compact, high-density storage, the device supports high-speed UFS signaling, secure replay-protected memory (RPMB), and power-on/ permanent write protection, delivering reliable boot and data-storage functions across a wide operating temperature and voltage range.
Key Features
- Core Universal Flash Storage (UFS) controller integrated with NAND Flash; JEDEC/UFS specification version 2.1-compliant with select UFS v3.0 features noted in the datasheet.
- Memory 64G × 8 organization totaling 512 Gbit of NAND flash in a high-density footprint.
- Interface UFS 2.1 interface with an advanced 6-signal implementation, differential I/O pins and support for two lanes and Gear 1/2/3 operation for high-speed transfers.
- Power VCC supply range of 2.7 V to 3.6 V (datasheet also references VCCQ2 1.7 V–1.95 V); designed for typical UFS power domains and low-power states including sleep mode and background operation.
- Security & Data Integrity Replay-Protected Memory Block (RPMB), permanent and power-on write protection, reliable write, discard/erase, and command queuing for managed data integrity and secure storage use cases.
- Boot & Maintenance Supports high-speed boot operation and background/refresh operations to assist system boot and maintenance workflows.
- Package & Temperature 153-TFBGA package (11.5 mm × 13 mm × 1.2 mm); industrial operating case temperature range from –40°C to +95°C.
- Compliance & Handling JEDEC/UFS 2.1 compliance and RoHS package compliance; supplied in tray or tape-and-reel shipping forms with BGA MSL3 handling considerations indicated in the datasheet.
- Clock Specified clock frequency: 52 MHz (device specification list).
Typical Applications
- Industrial Systems High-density embedded storage for industrial equipment that requires wide temperature operation and compact package integration.
- Embedded Boot Storage Use as high-speed boot and system storage leveraging the device’s high-speed boot support and UFS interface.
- Secure Data Storage Storage of authentication, firmware, and secure keys using the RPMB feature and write-protection mechanisms.
- Compact High-Density Storage Modules Designs needing 512 Gbit NAND capacity in a 153-ball TFBGA footprint for space-constrained boards.
Unique Advantages
- Standards-based interface: UFS v2.1 JEDEC compliance provides a common, high-speed interface for system integration.
- High capacity in a small footprint: 512 Gbit (64G × 8) NAND delivered in a 153-TFBGA 11.5 mm × 13 mm package reduces board area for high-density designs.
- Industrial temperature support: –40°C to +95°C operating range supports deployment in harsh or wide-temperature environments.
- Security and protection features: RPMB plus permanent and power-on write protection enable secure storage and controlled write access.
- Flexible performance modes: Two-lane differential signaling and Gear 1/2/3 support enable scalable performance choices for different system requirements.
- Controlled supply domains: Wide VCC range (2.7 V–3.6 V) and documented VCCQ2 support provide compatibility with common system power rails.
Why Choose IC FLASH 512GBIT UFS2.1 153TFBGA?
The MTFC64GASAONS-IT positions as a compact, high-capacity UFS storage solution for industrial and embedded applications that require secure, managed NAND storage with wide temperature tolerance. Its integrated UFS controller and NAND Flash in a 153-ball TFBGA package simplify board-level integration while offering UFS v2.1 feature support and advanced interface options.
This device is suited for designers seeking a scalable, standards-based storage element that combines density, security features (RPMB and write protection), and industrial temperature operation to support robust, long-term deployments and system boot/storage functions.
Request a quote or submit an inquiry for pricing and availability to evaluate the MTFC64GASAONS-IT for your design needs.
