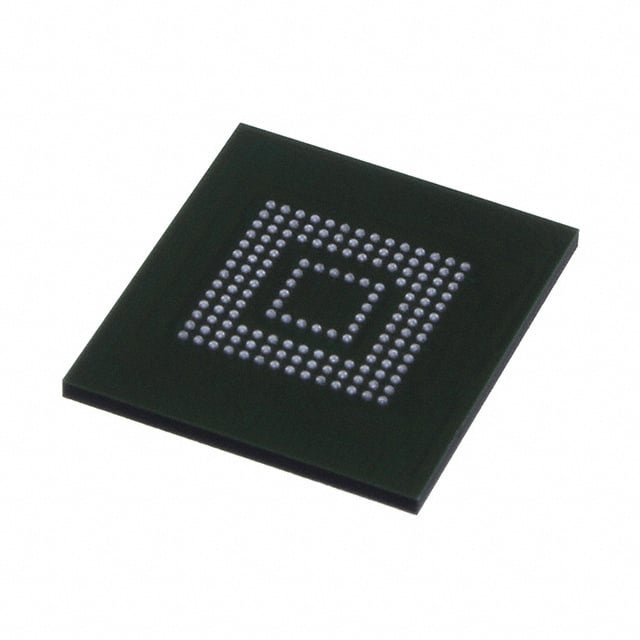

THGBMHG9C8LBAU8

The THGBMHG9C8LBAU8 is a 512 Gbit non-volatile NAND flash memory device with an integrated e·MMC interface and onboard memory management. Engineered as a managed mass-storage solution, it combines NAND flash technology with an integrated controller to provide a standards-based, easy-to-integrate storage element for industrial, consumer electronics, multimedia and smart metering applications.

Key Features

• Memory Core 512 Gbit NAND flash memory organized as 64G × 8 and implemented using MLC technology and 15nm process nodes as described in the product documentation.
• Interface & Performance e·MMC memory interface compliant with JEDEC specifications (as noted in the product literature) and supporting high interface speeds including HS400; internal clock frequency listed at 200 MHz.
• Integrated Memory Management Onboard controller with built-in error correction code (ECC), bad block management, wear-leveling and garbage collection to simplify host integration and improve usable lifetime.
• Power Single-supply operation across a 2.7 V to 3.6 V range.
• Package 153-WFBGA package (11.5 × 13 mm) optimized for high-density board-level integration.
• Temperature Range Rated for operation from –40 °C to +105 °C (TA), supporting extended-temperature applications.

Typical Applications

• Industrial systems — Reliable, standards-based mass storage for embedded controllers, data logging and instrumentation operating across extended temperatures.
• Consumer electronics — Local storage for multimedia content and system firmware in compact consumer devices using an e·MMC interface.
• Multimedia devices — High-density storage for audio/video assets and application data where e·MMC connectivity and managed NAND simplify system design.
• Smart metering & intelligent lighting — Non-volatile storage for configuration, logging and firmware in distributed sensing and control nodes.

Unique Advantages

• Highly integrated, managed storage: Integrated controller and NAND combine to reduce host-side software complexity and streamline BOM.
• Standards-based interface: e·MMC and JEDEC-aligned behavior enable straightforward integration with established host controllers and software stacks.
• On-device reliability features: ECC, bad block management, wear-leveling and garbage collection provide predictable maintenance of stored data without extensive host intervention.
• Wide operating conditions: 2.7–3.6 V supply and –40 °C to +105 °C operating temperature support deployment in temperature-challenged environments.
• Compact package: 153-WFBGA (11.5 × 13 mm) delivers high capacity in a small board footprint suitable for space-constrained designs.
• Cost-effective mass storage: Designed as a managed NAND solution to balance density and system integration costs for volume applications.

Why Choose THGBMHG9C8LBAU8?

The THGBMHG9C8LBAU8 positions itself as a standards-compliant e·MMC storage device that pairs high-density NAND with an integrated controller and on-device management features. Its combination of MLC NAND, JEDEC-aligned e·MMC interface, HS400-capable performance characteristics and extended temperature rating make it suitable for embedded designs that require compact, managed non-volatile storage.

This device is appropriate for engineers and procurement teams specifying cost-efficient, standards-based storage for industrial and consumer applications where simplified integration, on-device reliability mechanisms and a small package footprint are priorities.

Request a quote or submit a pricing and availability inquiry to receive lead-time and ordering information for the THGBMHG9C8LBAU8 e·MMC device.
