W25N512GWEIT

The W25N512GWEIT is a non-volatile 512 Mbit serial SLC NAND flash memory device with support for Standard, Dual and Quad SPI interfaces. It implements buffer read and continuous read modes and provides a SPI‑Quad I/O memory interface for high‑throughput serial access.

Designed for systems requiring 1.7V–1.95V power and industrial temperature range (-40°C to 85°C), the device serves as code or data storage in embedded and connected applications where compact high‑density flash and flexible SPI modes are required.

Key Features

• Memory Type & Organization 512 Mbit SLC NAND flash organized as 64M x 8, delivering non‑volatile storage in a serial flash form factor.
• Serial Interface SPI interface with Standard, Dual and Quad SPI instructions and Quad I/O support for higher serial throughput.
• Read Modes Buffer Read and Continuous Read modes are supported to optimize sequential data transfers and streaming.
• Performance 104 MHz maximum clock frequency and 7 ns access time for fast serial read operations.
• Program / Erase Supports standard program and erase commands including 128 KB block erase and quad load program instructions (quad/random load program opcodes included in instruction set).
• Power Low‑voltage operation across a 1.7V to 1.95V supply range.
• Data Protection & Configuration Multiple protection and configuration registers including volatile/OTP‑lockable bits, write protect and status registers; ECC enable bit and other status indicators are available.
• Write Timing Typical write cycle time for a word/page listed as 700 µs.

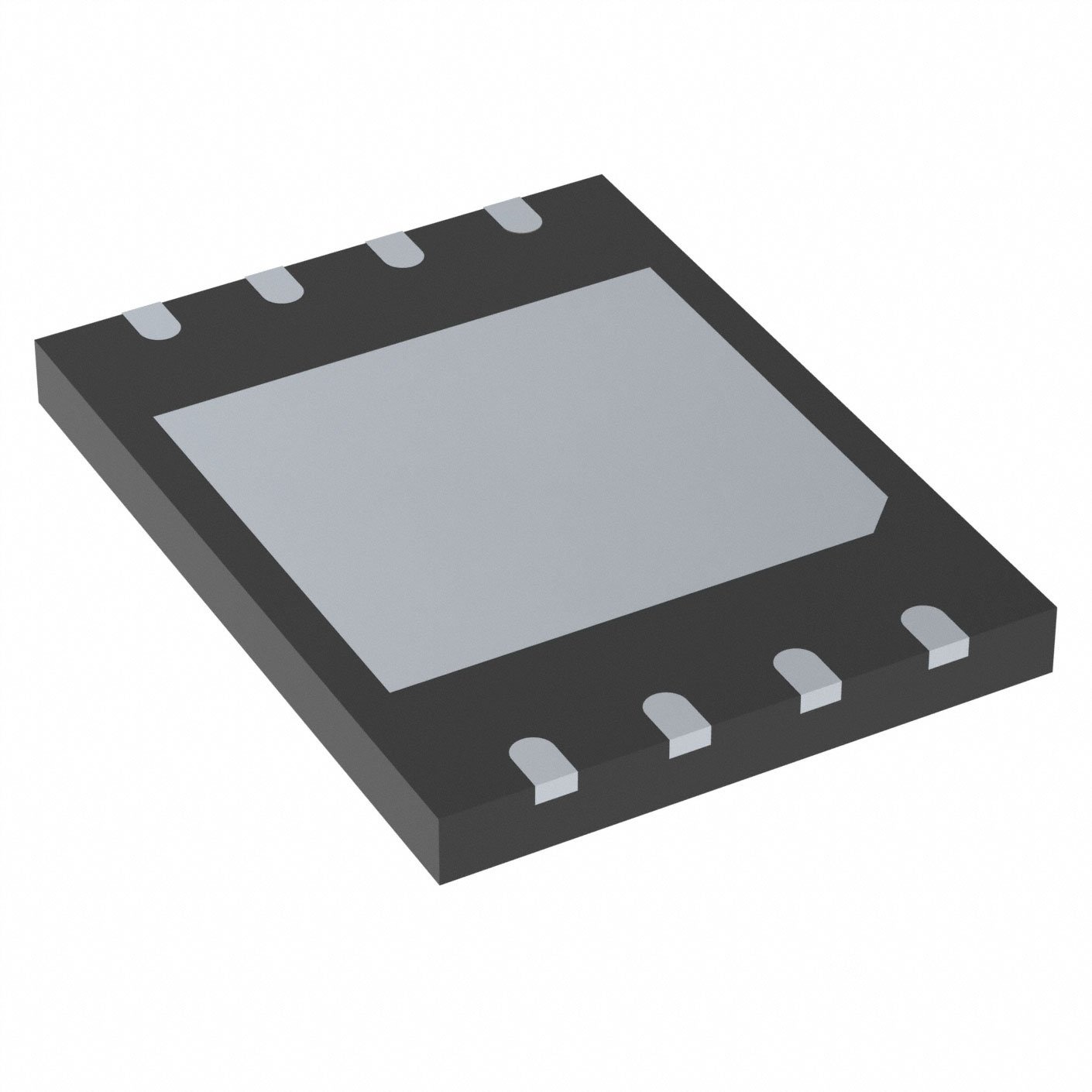

• Package & Temperature Available in an 8‑WDFN exposed pad package (8‑WSON, 8×6 mm) and rated for operation from -40°C to 85°C (TA).

Typical Applications

• Embedded Firmware Storage Compact 512 Mbit SLC NAND storage for system firmware and boot code in low‑voltage embedded platforms.
• Consumer & IoT Devices Serial Quad I/O and buffer/continuous read modes support fast code/data retrieval for connected consumer and IoT products operating within the specified supply and temperature ranges.
• Industrial Control Non‑volatile storage suitable for industrial controllers and equipment that require -40°C to 85°C operation and protected configuration registers.

Unique Advantages

• Flexible SPI Modes: Dual and Quad SPI support allows designers to scale serial throughput without changing the memory family.
• Low‑Voltage Operation: 1.7V–1.95V supply range enables use in low‑power system rails and simplifies power‑domain design.
• Read Performance Options: Buffer Read and Continuous Read modes plus a 104 MHz clock capability help optimize sequential data transfers.
• Robust Configuration Controls: Volatile and OTP‑lockable protection/configuration bits and ECC enable provide implementation choices for data integrity and security.
• Industry‑Class Thermal Range: Rated for -40°C to 85°C operation to support a broad set of embedded and industrial environments.

Why Choose W25N512GWEIT?

The W25N512GWEIT positions itself as a high‑density serial SLC NAND flash option with flexible SPI interface modes and configurable protection features. Its combination of 512 Mbit capacity, Quad I/O support, buffer/continuous read modes and low‑voltage operation makes it suitable for embedded designs that require compact non‑volatile storage with configurable read and protection behaviors.

This device is well matched to designers seeking a 1.8V SLC flash solution with register‑level control over protection and ECC, along with package and temperature specifications that accommodate compact industrial and consumer hardware.

Request a quote or submit an inquiry to discuss pricing, lead times, and availability for the W25N512GWEIT and to obtain technical assistance for integration into your design.
