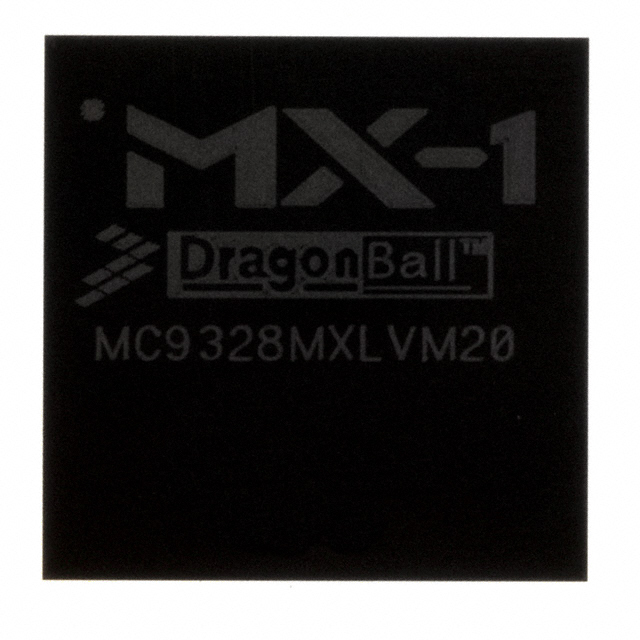

MC9328MXLCVM15

The MC9328MXLCVM15 is an i.MXL family microprocessor from NXP Semiconductors featuring an ARM920T 32-bit core running at 150 MHz. It integrates a broad set of system functions and peripheral controllers to support embedded designs that require mixed multimedia and control capabilities.

Targeted for embedded and industrial applications, the device combines processing, memory interface, display and peripheral connectivity in a 256-contact PBGA surface-mount package with an industrial operating temperature range of −40 °C to 85 °C.

Key Features

• Core ARM920T 32-bit microprocessor core at 150 MHz providing the i.MXL architecture for embedded application processing.
• Memory and Storage Integrated SDRAM controller and external interface module to simplify system memory and external device connections.
• Display and Multimedia On-chip LCD controller and video port functionality to support user interfaces and multimedia displays.
• Connectivity and Peripheral Interfaces Includes USB device (USB 1.x), MMC/SD host controller, Memory Stick host controller, SPI, I2C, UARTs and SSI/I2S for broad peripheral support.
• Timers and System Services Built-in watchdog, real-time clock (RTC), multiple timers, PWM module and DMA controller for real-time control and peripheral offload.
• Power and Clock Management DPLL clock and power control module for integrated clocking and power management; datasheet specifies core and I/O operating voltage ranges.
• Package and Mechanical 256-contact PBGA (14 × 14 mm) surface-mount package for compact board-level integration.
• Industrial Qualification and Temperature Rated for industrial operation with an ambient temperature range of −40 °C to 85 °C.
• Compliance RoHS compliant material status for environmental compliance in manufacturing.

Typical Applications

• Portable multimedia devices — Integrated LCD controller, MMC/SD host and USB device support local storage and user-interface display functionality.
• Human-machine interfaces (HMI) — On-chip display and GPIO interfaces enable touchpanel and control-panel implementations in industrial and consumer equipment.
• Industrial embedded systems — Industrial temperature rating and integrated peripherals suit embedded control, monitoring and data-logging applications.
• Handheld terminals and portable instruments — Compact PBGA package and integrated connectivity simplify designs for battery-powered handheld products.

Unique Advantages

• Highly integrated peripheral set: On-chip LCD, USB device, MMC/SD, serial interfaces and DMA reduce external component count and simplify board design.
• Industrial-grade operating range: −40 °C to 85 °C qualification supports deployment in demanding environments.
• Compact surface-mount package: 256-contact PBGA (14×14 mm) enables space-efficient layouts for compact products.
• Standard serial and storage interfaces: I2C, SPI, UART, SSI/I2S and MMC/SD host support common peripheral ecosystems and storage options.
• Vendor documentation and ecosystem: Supported by NXP Semiconductors product documentation and an i.MX family datasheet outlining system-level features and electrical characteristics.

Why Choose MC9328MXLCVM15?

The MC9328MXLCVM15 positions itself as a versatile, integrated microprocessor solution for embedded and industrial designs that need a 32-bit ARM920T core with a comprehensive peripheral set. Its combination of display, storage, serial connectivity and system services in a single device helps reduce bill-of-materials and design complexity.

This part is well suited for engineers building compact, industrial-grade products that require multimedia-capable interfaces, standard peripheral support and reliable operation across a wide temperature range, backed by NXP Semiconductors documentation for system integration.
