MC9328MXLCVP15R2

The MC9328MXLCVP15R2 is an i.MXL applications microprocessor featuring a single ARM920T 32-bit core running at 150 MHz. It combines a processor core with integrated system functions and peripheral controllers to support compact, portable and embedded designs.

Designed for personal and portable products as well as industrial embedded applications, this device delivers a blend of processing capability, peripheral integration and documented power-management features to streamline system design.

Key Features

• Core & Performance  ARM920T single-core 32-bit processor operating at 150 MHz for control and application processing tasks.
• Memory and Storage Controllers  Integrated SDRAM controller and support for MMC/SD and Memory Stick® host controllers to handle external memory and removable storage interfaces.
• Display and Multimedia  On-chip LCD controller and video port enable direct connection to displays and basic video peripherals for user interfaces.
• Connectivity and Serial Interfaces  Includes USB device functionality (USB 1.x), multiple UARTs, SPI, I2C and SSI/I2S for a wide range of peripheral interconnect options.
• System and Power Management  Integrated DPLL clock and power-control modules plus documented power-management features to aid efficient power use in portable designs.
• Timers, RTC and System Support  Built-in watchdog timer, real-time clock/sampling timer, general-purpose timers, PWM and DMA controller for deterministic control and data movement.

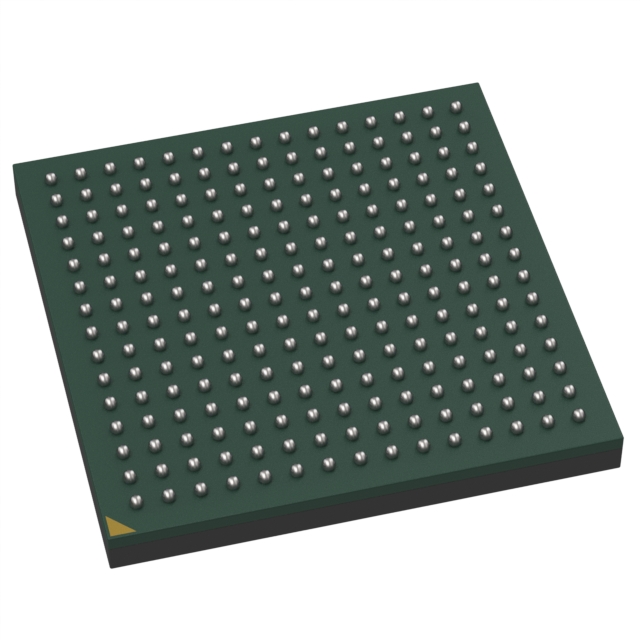

• Package and Mounting  Supplied in a 225-contact MAPBGA (13 × 13 mm) surface-mount package suitable for space-constrained hardware layouts.
• Qualification and Environmental  Industrial qualification with an operating temperature range of −40 °C to 85 °C and RoHS compliance for regulatory and environmental alignment.
• Graphics Acceleration  No dedicated graphics acceleration; functionality focuses on integrated display controller and multimedia peripherals.

Typical Applications

• Portable multimedia devices  Integrated LCD controller, MMC/SD and USB device support make the part suitable for compact multimedia and handheld products.
• Human-machine interfaces (HMI)  The LCD controller, GPIO and serial/peripheral interfaces support display-driven control panels and operator interfaces in embedded systems.
• Industrial embedded controllers  Industrial qualification and extended temperature range suit controllers and instrumentation that require reliable operation in harsh environments.
• Data acquisition and storage gateways  On-chip DMA, SDRAM controller and host controllers (MMC/SD, Memory Stick®) enable systems handling local storage and data transfer tasks.

Unique Advantages

• Highly integrated peripheral set: Reduces BOM and simplifies board-level design by combining LCD, USB device, MMC/SD, UART, SPI, I2C and other controllers on-chip.
• Industrial temperature range: Rated for −40 °C to 85 °C for deployments in temperature-challenging environments.
• Compact MAPBGA package: 225-contact MAPBGA (13×13 mm) minimizes PCB footprint for space-constrained applications.
• Deterministic single-core architecture: ARM920T single 32-bit core provides predictable processing behavior for embedded control and application tasks.
• Power-management features: On-chip clock and power control modules help optimize power consumption in portable and battery-powered systems.
• RoHS compliant: Meets environmental compliance requirements for modern electronics manufacturing.

Why Choose MC9328MXLCVP15R2?

The MC9328MXLCVP15R2 pairs a proven ARM920T core with a broad set of integrated peripherals and system functions, offering a compact, industrially qualified platform for embedded and portable applications. Its on-chip controllers for display, storage and serial connectivity reduce external components and simplify system integration.

This part is well suited to designers building compact multimedia devices, HMIs and industrial embedded systems that require a balance of processing capability, peripheral integration and documented power-management features. Comprehensive product documentation from the manufacturer supports design-in and deployment.

Request a quote or submit an inquiry for the MC9328MXLCVP15R2 by providing the part number to obtain pricing and availability for your project needs.
