MC9328MXLCVP15

The MC9328MXLCVP15 is an i.MXL family microprocessor featuring an ARM920T core configured as a single 32‑bit CPU running at 150 MHz. It combines an ARM9-class core with a set of integrated system functions to address personal and portable embedded applications that require display, storage and peripheral connectivity.

Designed for compact, surface‑mount applications, the device emphasizes integration and power management while supporting industrial temperature operation to meet robust embedded use cases.

Key Features

• Core ARM920T microprocessor core, 1 core, 32‑bit, operating at 150 MHz.
• Memory and DMA Integrated SDRAM controller and direct memory access (DMAC) to support system memory interfaces and efficient data movement.
• Display and Multimedia Integrated LCD controller for display support and multimedia peripherals aimed at portable multimedia applications.
• Peripheral Interfaces On‑chip USB device, I2C, SPI, UARTs and MMC/SD and Memory Stick® host controller support a wide range of external peripherals and storage options.
• Timers and RTC Multiple general‑purpose 32‑bit counters/timers, watchdog timer and real‑time clock provide essential system timing and reliability functions.
• System Control and Power DPLL clock and power control module and power management features to support optimized system power and clocking.

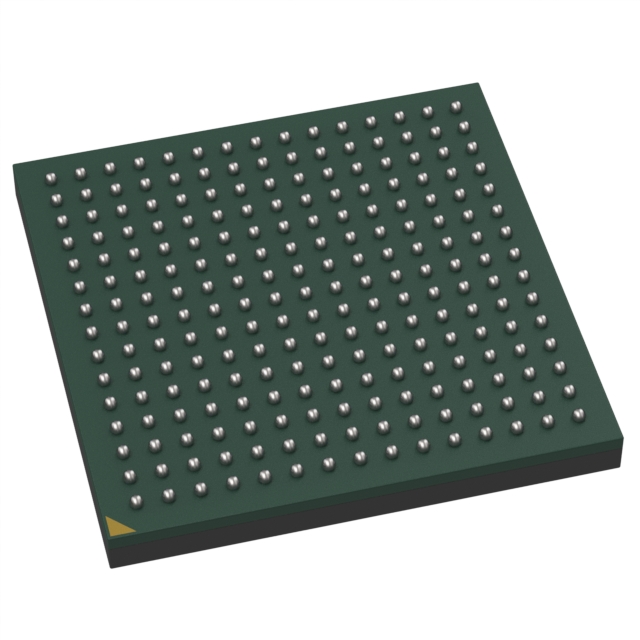

• Package and Mounting Supplied in a 225‑MAPBGA (13×13 mm) surface‑mount package (225‑LFBGA case reference) for compact board designs.
• Operating Range and Qualification Industrial qualification with operating temperature range of −40° C to 85° C for deployment in demanding environments.
• Documentation Part of the i.MX family with accompanying technical data and application information from the manufacturer.

Typical Applications

• Portable multimedia devices — On‑chip LCD controller, MMC/SD host and USB device support user interfaces and local storage for handheld devices.
• Handheld terminals and appliances — ARM920T performance combined with integrated peripherals enables compact, battery‑aware embedded systems.
• Industrial embedded controllers — Industrial temperature qualification and integrated I/O make the device suitable for rugged embedded control and HMI applications.

Unique Advantages

• Highly integrated peripheral set: Reduces BOM and board complexity by combining LCD, USB device, MMC/SD, serial interfaces and more on a single chip.
• Power‑aware ARM920T core: The ARM920T architecture provides a balance of performance and efficiency for portable and embedded tasks.
• Industrial temperature capability: Rated for −40° C to 85° C operation, enabling deployment in temperature‑challenging environments.
• Compact MAPBGA package: 225‑MAPBGA (13×13 mm) surface‑mount package supports small form‑factor designs.
• Comprehensive timing and control: Built‑in timers, watchdog and RTC support reliable, real‑time system operation.
• Manufacturer documentation: Part of the NXP i.MX family with available technical data and package information to support design and qualification.

Why Choose MC9328MXLCVP15?

The MC9328MXLCVP15 delivers a single‑core ARM920T solution that combines essential system peripherals, memory interfaces and power management in a compact MAPBGA footprint. Its integration and industrial temperature rating make it well suited for portable multimedia products, handheld terminals and embedded industrial applications where board space and system simplicity matter.

As a member of the i.MX family from NXP Semiconductors, this device is supported by technical documentation and application details to help accelerate development and integration into robust, long‑lifecycle embedded designs.

Request a quote or submit a purchase inquiry to initiate evaluation and procurement of the MC9328MXLCVP15. Our team can provide pricing and availability details tailored to your project needs.
