MC9328MXLDVM20R2

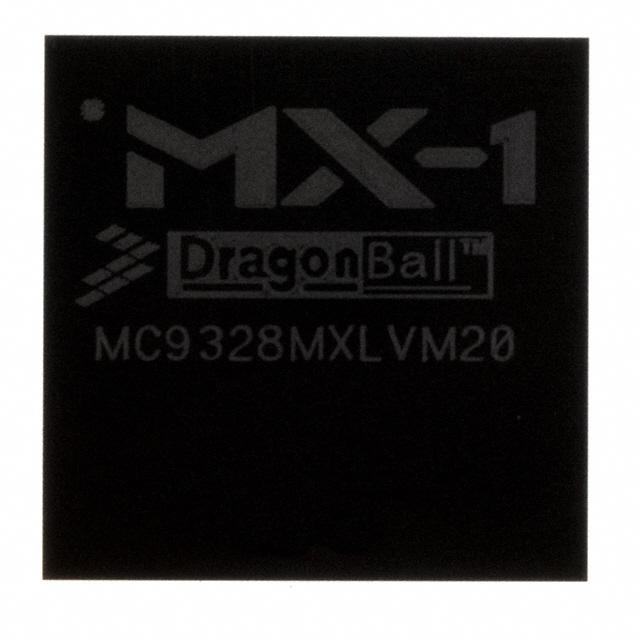

The MC9328MXLDVM20R2 is an i.MXL family microprocessor IC featuring an ARM920T 32‑bit core running at 200 MHz. It integrates a rich set of system functions—memory controllers, display and storage interfaces, USB device support and power management—targeted at personal and portable multimedia products.

Designed for compact, surface-mount implementations, this device provides a balance of processing performance and system integration for handheld and display-driven applications where on-chip peripherals and power control reduce overall system complexity.

Key Features

• Processor Core ARM920T 32‑bit single core running at 200 MHz for deterministic embedded processing.
• Memory and Bus Integrated SDRAM controller and AHB-to-IP bus interfaces to support external memory and system peripherals.
• Display and Multimedia On-chip LCD controller and video port to drive display-based user interfaces and multimedia functions.
• Storage and Host Interfaces MMC/SD host controller and Memory Stick® host controller to interface directly with common removable media.
• Connectivity and Serial Peripherals USB device, two UARTs, SPI, I2C and SSI/I2S modules for broad peripheral and sensor connectivity.
• System and Timing DPLL clock and power control module, real-time clock, watchdog and multiple timers for robust system timing and power management.
• DMA and Acceleration Direct Memory Access Controller (DMAC) and multimedia accelerator support efficient data movement and media tasks.
• Package and Mounting 256‑contact PBGA package (14 × 14 mm) in a surface‑mount form factor suitable for compact board layouts.
• Operating Range and Compliance Rated for operation from −30 °C to 70 °C and RoHS compliant for environmental regulatory adherence.

Typical Applications

• Portable multimedia devices — Integrates display, storage host and USB device support for compact handheld media players and consumer devices.
• Handheld and personal devices — ARM920T performance and on-chip peripherals simplify designs for PDAs, handheld instruments and portable controllers.
• LCD-based user interfaces — Built-in LCD controller and video port enable responsive, integrated user-interface control.
• MMC/SD storage systems — On-chip MMC/SD host controller provides direct support for removable storage in embedded applications.

Unique Advantages

• Highly integrated peripherals: USB device, LCD controller, MMC/SD and Memory Stick host controllers plus serial interfaces reduce external component count and simplify BOM.
• Balanced processing and I/O: ARM920T 200 MHz core with SDRAM controller and AHB interfaces delivers practical compute capability while supporting system memory and peripherals.
• Power and clock control: DPLL clock and power control module and power management features enable efficient power usage in portable designs.
• Compact surface-mount package: 256‑contact PBGA (14 × 14 mm) supports dense board layouts for space-constrained products.
• Wide operating range and compliance: −30 °C to 70 °C rating and RoHS compliance support deployment across a variety of environments with regulatory conformity.
• Comprehensive on-chip system features: Timers, RTC, watchdog and DMA simplify system design and improve reliability by reducing external circuitry.

Why Choose MC9328MXLDVM20R2?

The MC9328MXLDVM20R2 positions itself as a compact, integrated microprocessor solution for designers of portable and display-driven products. With an ARM920T 200 MHz core and a broad set of on-chip peripherals—display controller, storage hosts, USB device and serial interfaces—it reduces external component count and streamlines board design.

Backed by manufacturer documentation and technical data, this device is suited for projects that require a combination of embedded processing, on-chip connectivity and power-management features while maintaining a compact PBGA package and RoHS compliance.
