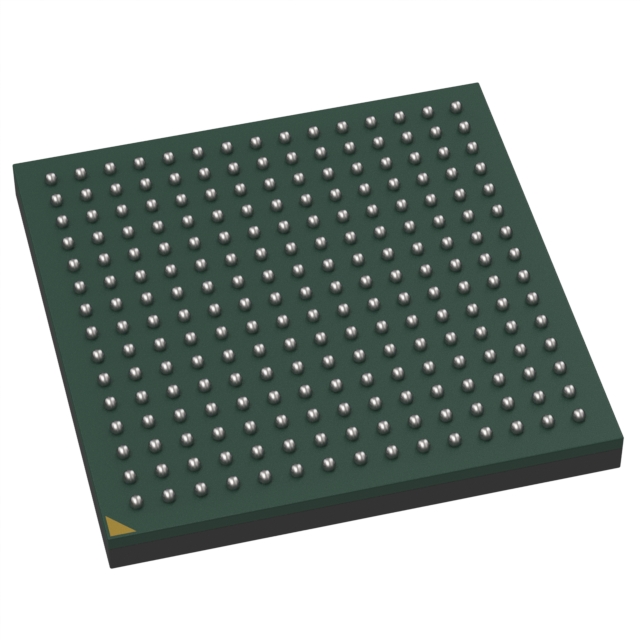

MC9328MXLDVP20R2

The MC9328MXLDVP20R2 is an NXP Semiconductors i.MXL family applications processor based on a single ARM920T core running at 200 MHz. It integrates a broad set of system functions—memory controllers, display support and peripheral interfaces—targeted at personal and portable products that require efficient processing with on-chip peripheral integration.

This device combines a power‑efficient ARM920T core with on‑chip controllers and power/clock management to simplify system design for portable multimedia and embedded applications.

Key Features

• Processor Core: ARM920T single 32‑bit core operating at 200 MHz for processor tasks and control functions.
• Memory and Bus: Integrated SDRAM controller and AHB to IP bus interfaces to support external memory and system interconnect.
• Display Support: On‑chip LCD controller to drive low‑to‑mid complexity display interfaces for portable user interfaces.
• Storage and Multimedia I/O: Integrated MMC/SD host controller and Memory Stick® host controller to support removable media and multimedia workflows.
• USB and Serial Connectivity: USB device (USB 1.x) plus two UARTs, SPI, I2C and SSI/I2S for broad peripheral and sensor connectivity.
• System Timing and Control: Two general‑purpose 32‑bit timers, PWM module, watchdog timer, real‑time clock/sampling timer (RTC) and DPLL clock/power control module for power and timing management.
• DMA and Acceleration: Direct Memory Access Controller (DMAC) and Multimedia Accelerator (MMA) to offload data movement and multimedia tasks from the CPU.
• Package and Mounting: 225‑MAPBGA (13×13) surface‑mount package for compact board integration.
• Operating Conditions: Industrial‑range operation from −30 °C to 70 °C; RoHS compliant.
• Development and Debug: JTAG/ICE support for in‑circuit debugging and development workflows.

Typical Applications

• Portable multimedia devices: Use the integrated LCD controller, MMC/SD host and Memory Stick host for handheld players or multimedia‑enabled portable products.
• Handheld terminals and PDAs: Combine the ARM920T core, SDRAM controller and multiple serial interfaces to support user interfaces, storage and connectivity.
• Embedded user interfaces and HMIs: Drive LCD panels and handle input peripherals while managing real‑time tasks with timers, PWM and RTC.
• Connected devices with removable media: USB device support and host controllers enable data interchange and media handling in compact embedded systems.

Unique Advantages

• Highly integrated peripherals: On‑chip controllers for LCD, MMC/SD, Memory Stick, USB and serial interfaces reduce external components and simplify PCB design.
• Balanced performance and efficiency: ARM920T at 200 MHz provides compute capability while integrated power and clock control enables efficient operation in portable designs.
• Compact packaging: 225‑MAPBGA (13×13) surface‑mount package supports dense board layouts for space‑constrained products.
• Rich connectivity: Multiple UARTs, SPI, I2C, SSI/I2S and USB 1.x make it suitable for diverse sensor, storage and peripheral ecosystems.
• Real‑time and system control: Watchdog, RTC, PWM and multiple timers provide the deterministic control needed for embedded applications.
• Standards‑compliant and documented: RoHS compliance and comprehensive datasheet documentation support regulatory and design verification needs.

Why Choose MC9328MXLDVP20R2?

The MC9328MXLDVP20R2 positions itself as a compact, integrated applications processor that combines an ARM920T core with extensive on‑chip peripherals and power/clock management. Its feature set is well suited to designers creating portable and multimedia‑oriented embedded products that require integrated display, storage and connectivity capabilities in a small surface‑mount package.

Backed by NXP Semiconductors documentation, the device offers a documented hardware foundation for designs that need a balance of processing capability, peripheral integration and board‑level compactness, helping teams reduce BOM complexity and accelerate time to prototype.

Request a quote or submit a product inquiry to receive pricing and availability details for the MC9328MXLDVP20R2. Refer to the MC9328MXL technical datasheet for full electrical and pin‑out information to support your design and validation efforts.
