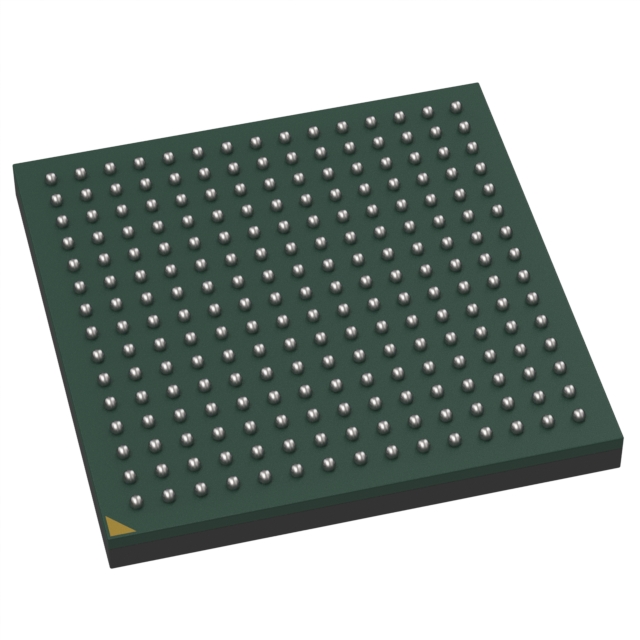

MC9328MXLDVP20

The MC9328MXLDVP20 is an i.MXL series microprocessor featuring an ARM920T 32‑bit core running at 200 MHz. It combines a processor core with integrated system modules to address compact, battery‑powered and portable product designs.

Designed for personal and portable multimedia applications, this device delivers integrated memory and peripheral controllers alongside power management features to simplify system design and improve time to market.

Key Features

• Core  ARM920T single 32‑bit core operating at 200 MHz for general embedded application processing.
• Memory and Memory Controller  Integrated SDRAM controller to streamline external memory interfacing and system memory performance.
• Connectivity and Storage  On‑chip USB device and MMC/SD host controller support common removable storage and host connectivity options; additionally includes Memory Stick® host controller and standard serial interfaces (SPI, UART, I2C).
• Display and Multimedia I/O  Integrated LCD controller and video port provide direct support for display subsystems in portable multimedia products.
• System and Peripheral Integration  Includes DMA controller, timers, PWM, watchdog, RTC and general‑purpose I/O to reduce external component count and simplify board design.
• Power and Clock Management  DPLL clock and power control modules and power management features for optimized performance versus power consumption. Datasheet specifies core operating voltage range of 1.7 V to 1.9 V and I/O range of 1.7 V to 3.3 V.
• Package and Mounting  225‑MAPBGA (13 × 13 mm) surface‑mount package (225‑LFBGA case), suitable for compact PCB layouts.
• Operating Range and Compliance  Rated for operation from −30 °C to 70 °C and RoHS compliant.

Typical Applications

• Portable multimedia devices  Integrated LCD controller, MMC/SD host and USB device support compact multimedia players and handheld viewers.
• Handheld terminals and PDAs  On‑chip SDRAM controller, serial interfaces and power management simplify designs for handheld consumer and enterprise terminals.
• Embedded user interfaces  LCD controller and GPIO, plus timers and PWM, enable responsive and feature‑rich user interface control in compact systems.
• Storage‑enabled embedded products  MMC/SD and Memory Stick® host controllers plus USB device support local storage and data transfer features.

Unique Advantages

• Integrated peripheral set: Reduces BOM and board complexity by combining USB, MMC/SD, LCD controller, serial interfaces and DMA on a single chip.
• Compact package for space‑constrained designs: 225‑MAPBGA (13×13) surface‑mount package enables small form‑factor PCBs.
• Power and clock control: DPLL and on‑chip power management features allow designers to balance performance and power consumption.
• Memory interface integration: Built‑in SDRAM controller streamlines external memory design and improves system integration.
• Ready for portable markets: The device’s documented feature set and operating temperature range support use in personal and portable product segments.
• Environmental compliance: RoHS compliance supports environmental and assembly requirements.

Why Choose MC9328MXLDVP20?

The MC9328MXLDVP20 positions a 200 MHz ARM920T core within a highly integrated i.MXL family device, combining processing capability with a broad set of on‑chip peripherals and power management functions. This integration streamlines hardware design for portable and multimedia‑oriented products where board space, component count and power efficiency are key concerns.

Engineers designing compact embedded systems will find the part suited to applications requiring display support, removable storage interfaces and common serial connectivity, backed by the i.MX family documentation and technical data for design and implementation.
