MC9328MXLDVP15

The MC9328MXLDVP15 is an i.MXL-series microprocessor from NXP Semiconductors based on the ARM920T core. This single‑core, 32‑bit MPU runs at 150 MHz and targets personal and portable embedded applications that require integrated system functions and peripheral support.

With a power‑aware ARM920T core and a rich set of on‑chip controllers, the device is designed for compact multimedia and user‑interface driven designs where integration, power management and peripheral connectivity are priorities.

Key Features

• Processor Core  ARM920T single core, 32‑bit architecture running at 150 MHz for general embedded processing tasks.
• Memory and External Interface  Integrated SDRAM controller and External Interface Module (EIM) to support external memory and system expansion.
• Display and Multimedia Support  On‑chip LCD controller for embedded display solutions and multimedia support as described in the i.MXL family documentation.
• Storage and USB  USB device support (USB 1.x) and host controller functionality for MMC/SD and Memory Stick® (as documented for the i.MXL family) to enable removable storage and peripheral connectivity.
• Serial and Peripheral Interfaces  Includes I2C, SPI, UARTs and SSI/I2S interfaces for sensor, audio and serial communications integration.
• Timers, RTC and System Control  Multiple timers, PWM, watchdog timer and real‑time clock provide system timing, control and reliability features.
• DMA and System Bus  Integrated DMA controller and AHB/IP bus interfaces for efficient data movement and peripheral access.
• Power and Clock Management  DPLL clock and power control module with power management features documented for the series; operating voltage ranges listed in the i.MXL documentation.

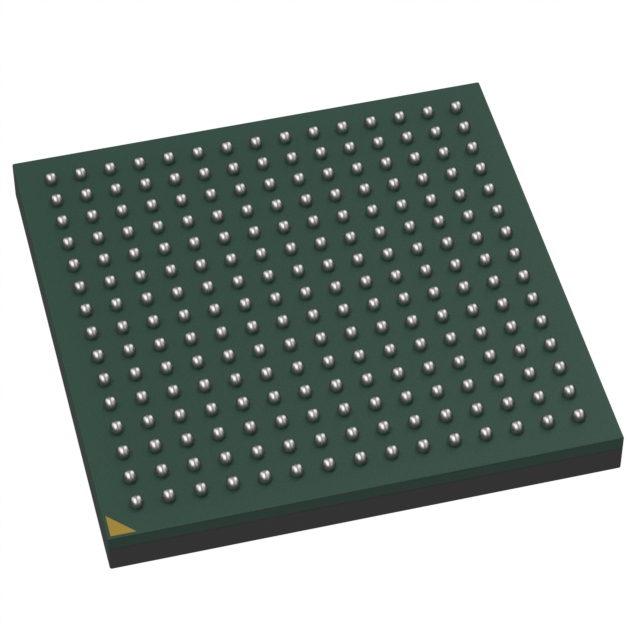

• Package and Mounting  225‑MAPBGA (13 × 13 mm), surface‑mount package for compact board designs.
• Operating Temperature  −30 °C to 70 °C ambient operating range suitable for a broad set of embedded environments.
• Compliance  RoHS compliant.

Typical Applications

• Portable multimedia devices  Integrated LCD controller, USB and removable storage host features support compact multimedia and handheld systems.
• Embedded user interfaces  On‑chip display controller, timers and GPIO make the device well suited for embedded HMI applications.
• Consumer portable products  Single‑chip integration and power management capabilities target battery‑conscious portable designs.
• SD/MMC based storage solutions  MMC/SD host controller functionality supports products requiring removable flash storage.

Unique Advantages

• Highly integrated peripheral set: On‑chip LCD controller, USB device, MMC/SD host and multiple serial interfaces reduce external BOM and board complexity.
• Proven ARM920T core: A single 32‑bit ARM920T core at 150 MHz provides deterministic embedded processing for control and user‑interface tasks.
• Flexible memory interfaces: SDRAM controller and External Interface Module enable straightforward system memory design and expansion.
• Compact surface‑mount package: 225‑MAPBGA (13 × 13 mm) delivers a small footprint for space‑constrained applications.
• Wide operating temperature: −30 °C to 70 °C operation supports a range of environmental conditions for embedded products.
• Standards‑oriented connectivity: Support for I2C, SPI, UART and USB facilitates integration with common sensors, peripherals and accessory devices.

Why Choose MC9328MXLDVP15?

The MC9328MXLDVP15 combines an ARM920T processor core with an extensive set of integrated system controllers to deliver a compact, board‑level solution for portable and embedded multimedia designs. Its integrated memory interface, display controller and peripheral set simplify hardware design and reduce component count.

Backed by NXP Semiconductors and documented in the i.MXL family materials, this device is suited to designers seeking a balanced combination of processing capability, peripheral integration and environmental tolerance for long‑lifecycle embedded products.

Request a quote or submit an inquiry for pricing and availability of the MC9328MXLDVP15 to move your design forward with a compact, integrated i.MXL processor solution.
