MC9328MXLVM20

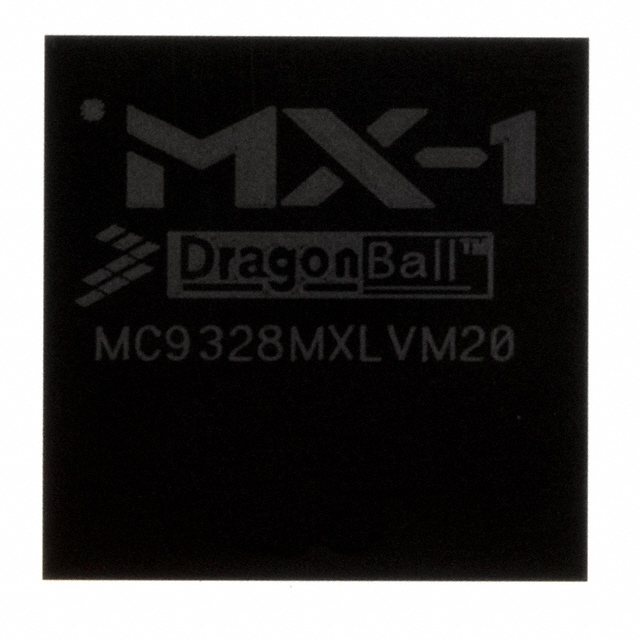

The MC9328MXLVM20 is an NXP Semiconductors i.MXL series microprocessor featuring a single ARM920T 32‑bit core running at 200 MHz. It integrates system functions and peripheral controllers aimed at portable and multimedia-oriented embedded designs.

Designed for applications that require a compact, surface‑mount processor package, the device combines processor performance with on‑chip controllers for memory, display and common serial interfaces to simplify system design and reduce board-level complexity.

Key Features

• Core ARM920T single 32‑bit core operating at 200 MHz for deterministic embedded processing.
• Memory and Bus Integrated SDRAM controller and AHB to IP bus interfaces to manage external memory and system peripherals.
• Display and Media On‑chip LCD controller and multimedia blocks (including a Multimedia Accelerator) for embedded display and media handling.
• Storage and Host MMC/SD host controller and Memory Stick® host controller for removable storage support.
• Connectivity Built‑in serial interfaces including USB Device (USB 1.x), UARTs, SPI, I2C, SSI/I2S and a video port for broad peripheral connectivity.
• System and Timing DPLL clock and power control module, real‑time clock, watchdog timer, and multiple 32‑bit timers for system control and power management.
• DMA and IO Direct Memory Access Controller (DMAC) and General‑Purpose I/O (GPIO) for efficient data movement and flexible interfacing.
• Analog/Control Pulse‑Width Modulation (PWM) module for motor or power control tasks.
• Package and Mounting 256‑PBGA (14×14) surface‑mount package; compact MAPBGA style suitable for space‑constrained boards.
• Operating Conditions Specified operating temperature range 0 °C to 70 °C and core/I‑O operating voltages documented in product datasheet (core and I/O ranges quoted in datasheet).
• Compliance RoHS compliant.

Typical Applications

• Portable Multimedia Devices Integrated LCD controller, multimedia accelerator and storage host controllers enable compact handheld multimedia implementations.
• Consumer Embedded Products On‑chip USB, UARTs, SPI and I2C simplify connectivity for consumer electronics and user‑interface controllers.
• Handheld and Portable Systems Single 32‑bit ARM920T core at 200 MHz with SDRAM controller supports responsive embedded applications in portable form factors.

Unique Advantages

• Highly integrated processor Combines CPU, display, memory and multiple peripheral controllers on a single chip to reduce component count and BOM complexity.
• Broad peripheral set Multiple serial interfaces (USB device, UART, SPI, I2C, SSI/I2S) and host controllers (MMC/SD, Memory Stick®) provide flexible I/O options without external bridges.
• Compact surface‑mount package 256‑PBGA (14×14) package enables dense board layouts for space‑constrained designs.
• System control and power features DPLL clocking, power control module, RTC and watchdog support robust power and time management on portable platforms.
• Developer ecosystem Part of the i.MX family from NXP Semiconductors, with documented datasheet and technical resources for design integration.
• RoHS compliant Meets regulatory requirements for lead‑free assembly processes.

Why Choose MC9328MXLVM20?

The MC9328MXLVM20 positions itself as a compact, integrated application processor for embedded and portable multimedia designs that need a balance of processing capability and peripheral integration. Its ARM920T 200 MHz core combined with on‑chip controllers for display, memory and common I/O reduces system complexity and accelerates time‑to‑market.

This device is suitable for engineers targeting small‑footprint, surface‑mount solutions where integrated storage, display and connectivity controllers are required. Backed by NXP Semiconductors documentation and RoHS compliance, it offers a practical platform for deployed embedded products.

If you would like pricing, availability or a formal quote for MC9328MXLVM20, submit an inquiry or request a quote and our team will respond promptly to assist with your procurement and design requirements.
