MC9328MXLVP20R2

The MC9328MXLVP20R2 is an NXP Semiconductors i.MXL family microprocessor featuring an ARM920T core running at 200 MHz. This single‑core, 32‑bit MPU integrates a range of system peripherals targeted at personal and portable products that require compact, power‑aware processing and on‑board peripherals.

Designed for embedded and multimedia‑oriented applications, the device combines an ARM9‑class core with integrated interfaces and controllers to simplify system design and accelerate time to market.

Key Features

• Core — ARM920T microprocessor core, single 32‑bit core running at 200 MHz.
• Memory and Bus — Integrated SDRAM controller and AHB to IP bus interfaces for system memory and peripheral access.
• Display — Integrated LCD controller to support embedded display interfaces for portable and user‑interface applications.
• Storage and Multimedia I/O — MMC/SD host controller and Memory Stick® host controller support for removable media and multimedia content.
• USB and Serial Connectivity — USB device support (USB 1.x), two UARTs, SPI and I2C for common peripheral and sensor connectivity.
• Audio and Serial Interfaces — SSI/I2S module for serial audio and synchronous serial data paths.
• Timers and System Control — Two general‑purpose 32‑bit timers, watchdog timer, real‑time clock (RTC), PWM and system power control including DPLL clock management.
• DMA and Accelerators — On‑chip DMA controller and multimedia accelerator to offload data movement and multimedia tasks.
• Debug and I/O — JTAG/ICE support and general‑purpose I/O (GPIO) ports for development and system control.

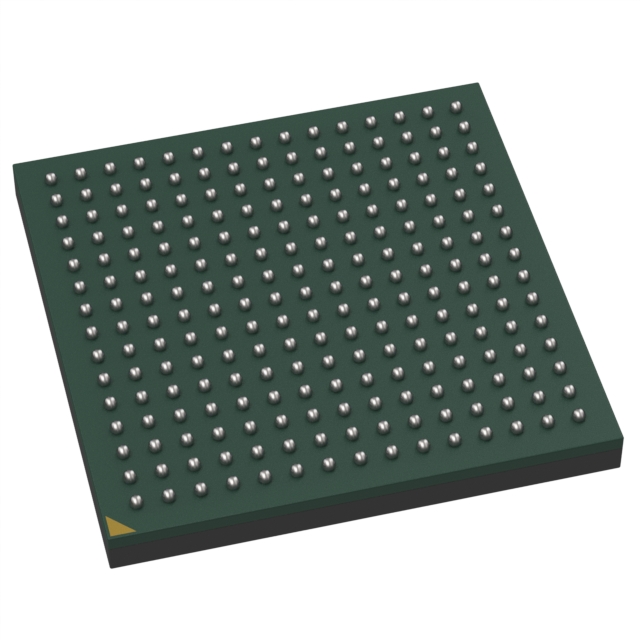

• Package and Mounting — 225‑MAPBGA (13 × 13 mm) supplier device package; surface‑mount assembly.
• Operating Range — Commercial temperature range: 0 °C to 70 °C.
• RoHS Compliance — Device is RoHS compliant.

Typical Applications

• Portable multimedia devices — Integrated LCD controller, MMC/SD and USB device interfaces enable media playback and content management in compact designs.
• Handheld and consumer electronics — ARM920T performance and on‑chip peripherals support user interfaces, data acquisition and peripheral control in handheld products.
• Embedded control with storage — MMC/SD host and memory interfaces make the device suitable for embedded systems that require removable storage and multimedia handling.

Unique Advantages

• Highly integrated peripheral set: On‑chip LCD controller, USB device, MMC/SD and serial interfaces reduce external component count and simplify board design.
• Balanced performance and efficiency: ARM920T core at 200 MHz provides a compact 32‑bit processing engine for control and multimedia tasks without excessive power overhead.
• Memory subsystem support: Integrated SDRAM controller and AHB bus interfaces streamline memory access and system architecture.
• System control and power features: DPLL clock management, power management features and RTC facilitate stable operation in portable designs.
• Compact surface‑mount package: 225‑MAPBGA (13×13 mm) packaging enables small form‑factor assemblies for space‑constrained applications.
• Commercial temperature and RoHS compliance: 0 °C to 70 °C operating range and RoHS compliance support standard commercial product requirements.

Why Choose MC9328MXLVP20R2?

The MC9328MXLVP20R2 positions itself as a compact, integrated microprocessor solution for embedded and portable multimedia applications. With an ARM920T core at 200 MHz and a broad set of on‑chip peripherals—display controller, memory interfaces, USB, MMC/SD, audio and serial interfaces—it reduces BOM complexity while providing the connectivity and control needed in consumer and portable designs.

This part is suited to development teams and product designers seeking a single‑chip foundation for multimedia‑enabled embedded systems where integration, small package size and standard commercial operating range are priorities. Backed by NXP Semiconductors documentation and system features, it supports robust implementation and lifecycle continuity for production designs.

Request a quote or submit a procurement inquiry for MC9328MXLVP20R2 to receive pricing and availability information tailored to your project needs.
