MC9328MXSCVP10

The MC9328MXSCVP10 is an i.MXS applications processor built around a single ARM920T 32-bit core running at up to 100 MHz. It integrates a range of system functions—such as an LCD controller and USB device—into a compact MAPBGA 225 package to address portable and embedded designs.

Designed for industrial use, the device targets medical instrumentation, low-end PDAs, point-of-sale terminals, security systems and other portable products. Its architecture emphasizes integration and power-efficient operation to support battery-powered and space-constrained applications.

Key Features

• Core  ARM920T single 32-bit core, operating at up to 100 MHz, delivering a balance of performance and power efficiency for embedded applications.
• Memory and External Interface  Integrated SDRAM controller and External Interface Module (EIM) for flexible memory and external device interfacing.
• Display and USB  On-chip LCD controller plus a USB device interface (USB 1.x) to support user interfaces and peripheral connectivity.
• Peripherals and Serial Interfaces  Includes two UARTs, SPI, SSI/I2S, I2C bus module, GPIO ports, and a DMA controller to simplify peripheral integration and offload the CPU.
• Timers and System Services  Real-time clock/sampling timer (RTC), watchdog timer, PWM module, and multiple general-purpose 32-bit counters/timers for timing and control tasks.
• Power and Clock  DPLL clock and power control module and power management features enable efficient operation across varying power states.
• Operating Voltage  Core and I/O voltage support documented in product datasheet: core 1.7 V to 1.9 V and I/O 1.7 V to 3.3 V.

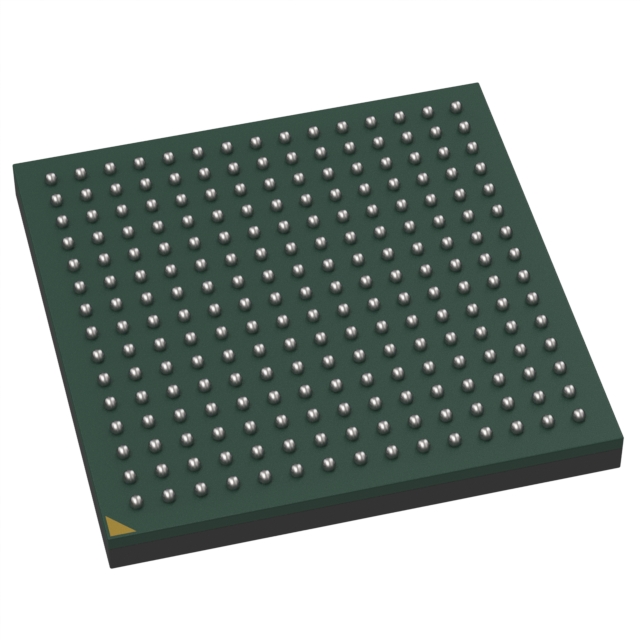

• Package and Mounting  225-contact MAPBGA (13 × 13 mm) surface-mount package (225-LFBGA package case) for compact board-level integration.
• Temperature and Qualification  Industrial qualification with an operating temperature range of −40 °C to 85 °C.
• Environmental Compliance  RoHS compliant.

Typical Applications

• Medical Instrumentation  Integration of display, timing, and serial interfaces makes it suitable for compact medical devices that require reliable control and user interfaces.
• Low-End PDAs and Handhelds  Power-efficient ARM920T core, integrated LCD controller and USB support provide the basic building blocks for portable consumer devices.
• Point-of-Sale Terminals  On-chip peripherals and industrial temperature range support reliable operation in retail and kiosk environments.
• Security Systems  GPIO, serial interfaces and RTC enable sensor interfacing, logging and real-time control in embedded security applications.

Unique Advantages

• Highly integrated peripherals: On-chip LCD controller, USB device, SDRAM controller, DMA and multiple serial interfaces reduce external components and simplify BOM.
• Power-efficient ARM920T core: Designed for low-power operation to extend battery life in portable applications.
• Flexible I/O and memory interfacing: EIM and SDRAM controller provide options for external memory and device connectivity without extensive glue logic.
• Industrial readiness: Rated for −40 °C to 85 °C operation and supplied in a compact MAPBGA 225 package suitable for space-constrained designs.
• Comprehensive on-chip system functions: Timers, RTC, watchdog, PWM and DMA support robust system control and real-time tasks with minimal external components.
• RoHS compliant: Meets environmental compliance requirements for modern electronics manufacturing.

Why Choose MC9328MXSCVP10?

The MC9328MXSCVP10 is positioned as a compact, integrated solution for embedded designs that require a balanced combination of processing capability and system-level peripherals. Its ARM920T core, integrated display and USB interfaces, and a broad set of serial/peripheral modules make it well suited to portable and industrial applications where board space, power efficiency and integration matter.

As a member of the i.MX family of applications processors and backed by detailed technical documentation, the MC9328MXSCVP10 offers designers a clearly specified, industrial-temperature option for projects that need proven processor architecture combined with on-chip system functions.

Request a quote or submit an inquiry for the MC9328MXSCVP10 by providing the part number and required quantity; our team will provide availability and pricing information.
