MC9328MXSVP10R2

The MC9328MXSVP10R2 is an NXP Semiconductors i.MXS family microprocessor built around a single ARM920T core running at up to 100 MHz. It combines an ARM9 class CPU with integrated system peripherals and controllers to support compact, power-conscious embedded designs.

Targeted at portable and low‑power embedded markets, this device provides integrated SDRAM control, an LCD controller and a USB device interface, making it suitable for applications that require a compact, highly integrated processing solution.

Key Features

• Core — ARM920T microprocessor core, single 32‑bit core running up to 100 MHz as specified for the i.MXS family.
• Memory and External Interface — Integrated SDRAM controller and External Interface Module (EIM) for system memory and external device interfacing.
• Display and USB — On‑chip LCD controller and a USB device interface (USB 1.x) for user interface and peripheral connectivity.
• Peripheral Set — Includes UARTs, SPI, I2C, PWM, timers, RTC, watchdog timer, DMAC and SSI/I2S as part of the integrated peripheral suite described for the i.MXS family.
• Power and Clocking — DPLL clock and power control module and power management features described in the i.MXS documentation; core and I/O operating voltage ranges are provided in the series technical data.

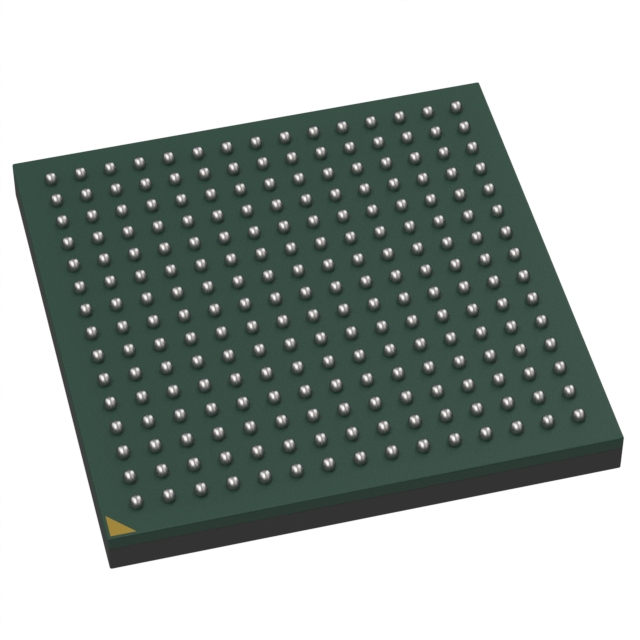

• Package and Mounting — 225‑contact MAPBGA (225‑MAPBGA, 13×13) surface‑mount package (225‑LFBGA case referenced).
• Operating Range — Industrial/consumer operating temperature range of 0 °C to 70 °C as specified.
• RoHS Compliance — Device is RoHS compliant.
• Graphics Acceleration — No dedicated graphics acceleration engine is provided.

Typical Applications

• Medical Instrumentation — Embedded control and user‑interface handling in diagnostic and monitoring equipment where a compact processor and integrated peripherals are required.
• Portable Devices / Low‑end PDAs — Core processing, display control and peripheral connectivity for small handheld systems.
• Point‑of‑Sale Terminals — Transaction controllers and display drivers that benefit from integrated LCD and USB device interfaces.
• Security and Access Systems — Control and I/O processing for access control panels and embedded security devices.

Unique Advantages

• Integrated peripheral suite: On‑chip controllers for SDRAM, LCD and USB plus UART/SPI/I2C reduce external components and simplify board design.
• Proven ARM920T core: A single 32‑bit ARM920T core at 100 MHz provides a familiar architecture for embedded software and operating systems supported by the i.MXS family.
• Compact BGA packaging: 225‑MAPBGA (13×13) package enables high pin count in a small footprint for space‑constrained products.
• Power management and clocking: Integrated DPLL and power control features allow designers to balance performance and power consumption per the i.MXS technical data.
• Design‑ready feature set: Built‑in timers, DMA, RTC and watchdog support common embedded system requirements without extensive external logic.

Why Choose MC9328MXSVP10R2?

The MC9328MXSVP10R2 positions itself as a compact, integrated microprocessor solution for embedded designs that require a capable ARM920T core plus a broad set of on‑chip peripherals. Its combination of SDRAM interface, LCD controller and USB device support makes it well suited for portable and interface‑centric products.

Designers and procurement teams seeking a RoHS‑compliant i.MXS family device will find this part appropriate for applications where a single 32‑bit core, integrated system functions and a compact MAPBGA package deliver practical value in development and BOM simplification.

Request a quote or submit an inquiry to obtain pricing, availability and delivery information for the MC9328MXSVP10R2. Our team can provide lead‑time details and support for your sourcing and design planning needs.
