MC9328MXSVP10

The MC9328MXSVP10 is an NXP i.MXS series applications microprocessor featuring a single ARM920T 32-bit core running at 100 MHz. It combines a CPU core with integrated system functions and peripheral controllers targeted at compact, battery-powered and embedded devices.

Designed for portable and embedded markets, the device delivers integrated memory and peripheral interfaces, USB device support, an LCD controller and power management features to simplify system design while supporting open operating systems and low-power use cases.

Key Features

• Core  ARM920T 32-bit microprocessor core operating up to 100 MHz, providing a compact, power-efficient processing engine.
• Memory and External Interface  Integrated SDRAM controller and External Interface Module (EIM) to manage external memory and peripherals.
• Display  On-chip LCD controller for direct display interfacing in portable GUIs and handheld devices.
• USB and Serial Communication  Single USB device controller (USB 1.x) plus multiple serial interfaces including two UARTs, SPI and SSI/I2S for audio and synchronous serial links.
• Interconnects  Inter-IC (I2C) bus module and general-purpose I/O (GPIO) for sensor and peripheral connectivity.
• Timers and Control  Two 32-bit general-purpose counters/timers, watchdog timer, real-time clock/sampling timer (RTC) and PWM module for control and timing functions.
• DMA and Peripheral Acceleration  Integrated Direct Memory Access Controller (DMAC) to offload data movement from the CPU.
• Power and Clock  DPLL clock and power control module with integrated power management features for low-power operation.

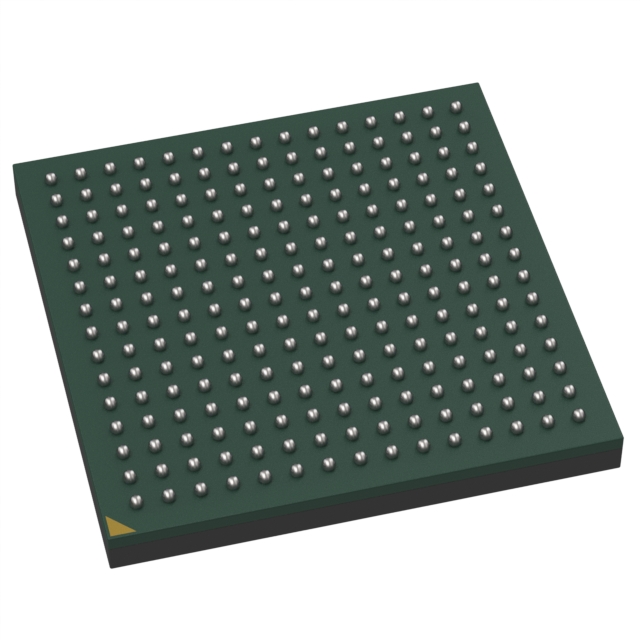

• Package and Mounting  225-contact MAPBGA package (225-MAPBGA, 13×13) in a surface-mount form factor suitable for compact assemblies.
• Operating Range and Compliance  Industrial-oriented operating temperature range of 0°C to 70°C and RoHS-compliant manufacturing.

Typical Applications

• Medical Instrumentation  Embedded control and user-interface management where compact processing and integrated peripherals are required.
• Handheld Devices / Low-end PDAs  Processing and display control for portable devices that benefit from integrated LCD and low-power design.
• Point-of-Sale Terminals  Peripheral-rich embedded control for transaction terminals with serial and USB connectivity.
• Security and Access Systems  System control and I/O interfacing for security devices and access controllers.

Unique Advantages

• Highly integrated peripheral set: On-chip SDRAM controller, LCD controller, USB device, serial ports, I2C and GPIO reduce external components and simplify BOM.
• Power-aware architecture: DPLL clock and power control plus low-power ARM920T core design support energy-efficient operation for battery-powered designs.
• Compact package: 225-contact MAPBGA (13×13) delivers a high pin count in a small footprint for space-constrained products.
• Rich timing and control resources: Timers, PWM, RTC and watchdog are available on-chip for robust system control and real-time tasks.
• Comprehensive I/O mix: Multiple serial interfaces, SPI, SSI/I2S and I2C enable flexible connectivity to sensors, displays and peripherals.
• Standards-aware design: RoHS compliance and documented operating voltage ranges support regulatory and system-level integration requirements.

Why Choose MC9328MXSVP10?

The MC9328MXSVP10 positions itself as an integrated, low-power ARM920T-based processor ideal for compact embedded products that require a balanced set of peripherals, display support and memory interfacing. Its single-core 32-bit architecture, integrated controllers and power management make it suitable for designers seeking to reduce system complexity and component count.

This device is well matched to developers of portable electronics, point-of-sale hardware and instrumentation who need documented technical resources, a comprehensive peripheral set and a surface-mount MAPBGA package for dense board layouts.

Request a quote or submit a purchase inquiry to obtain pricing, availability and lead-time information for the MC9328MXSVP10.
