MC9328MXSCVP10R2

The MC9328MXSCVP10R2 is an i.MXS applications microprocessor featuring a single ARM920T core running at up to 100 MHz. It combines a 32-bit CPU with a range of integrated system functions and peripherals tailored for portable and embedded designs.

Targeted at applications such as medical instrumentation, PDAs, point-of-sale terminals and security systems, the device delivers high integration, power management capability and on-chip interfaces to simplify system design and reduce board-level complexity.

Key Features

• Core & Performance — ARM920T single 32-bit core operating up to 100 MHz for control and application processing.
• Memory & Bus — Integrated SDRAM controller and AHB-to-IP bus interfaces (AIPIs) plus an External Interface Module (EIM) to support external memory and peripherals.
• Display & Graphics — On-chip LCD controller for direct display interfacing in portable devices.
• Connectivity & Serial Interfaces — Built-in USB device, I2C bus, SPI, two UARTs and SSI/I2S for audio and serial peripherals.
• System Controllers & DMA — Direct Memory Access Controller (DMAC), real-time clock (RTC), watchdog timer, and multiple general-purpose 32-bit timers for deterministic system control.
• Timers & PWM — PWM module and multiple timers for motor control, backlight and timing functions.
• Power & Clocking — DPLL clock and power control module; documented operating voltage ranges in the datasheet specify core and I/O domains for efficient power management.

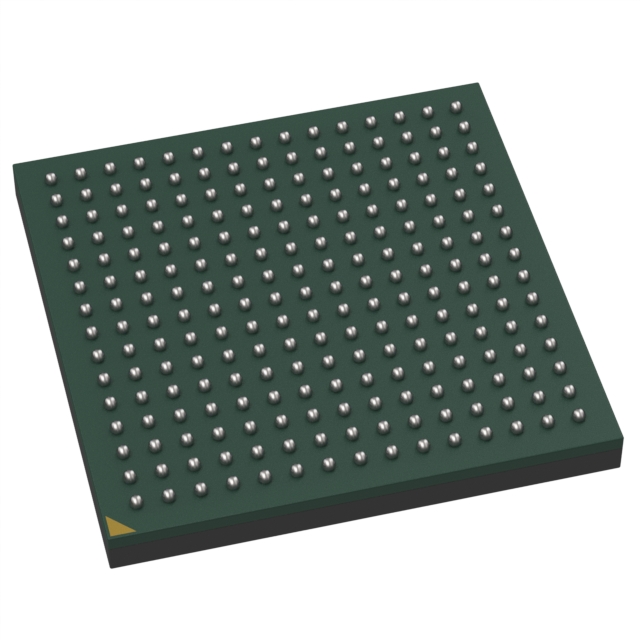

• Package & Mounting — 225-contact MAPBGA (13×13) surface-mount package (225-LFBGA variant information present) to support compact, high-density board designs.
• Operating Range & Qualification — Industrial qualification with an operating temperature range of −40 °C to 85 °C and RoHS compliance.

Typical Applications

• Medical Instrumentation — Embedded control and user-interface processing where reliable operation and peripheral integration reduce system complexity.
• Personal Digital Assistants (PDAs) — Application processing and LCD-driven user interfaces for low-power portable devices.
• Point-of-Sale Terminals — System control, display management and peripheral connectivity for transaction and kiosk systems.
• Security Systems — Embedded control, serial communications and real-time monitoring in access control and surveillance solutions.

Unique Advantages

• Highly integrated peripheral set: On-chip LCD controller, USB device, serial buses and DMA reduce external components and BOM cost.
• Designed for portable embedded products: Power-management and DPLL clocking features help optimize battery life in handheld applications.
• Proven ARM920T core: A well-documented 32-bit core provides established performance and software ecosystem compatibility for embedded developers.
• Robust industrial operation: Industrial qualification and −40 °C to 85 °C operating range support deployment in demanding environments.
• Compact, surface-mount package: 225-contact MAPBGA (13×13) enables compact board layouts and high-density designs.
• Supports open operating systems: Architecture and feature set enable implementation with open OS choices in embedded devices.

Why Choose MC9328MXSCVP10R2?

The MC9328MXSCVP10R2 positions itself as a compact, integrated microprocessor for embedded and portable designs that require a capable ARM920T core plus a broad set of on-chip peripherals. Its combination of SDRAM controller, display support, serial interfaces and power-management functionality simplifies system architecture and reduces external component count.

This device is well suited to engineers designing industrial-temperature embedded products, handhelds and point-of-sale or security equipment who need a single-chip solution with proven architecture and a focused feature set for control, display and connectivity tasks.

Request a quote or submit an inquiry to begin procurement or to discuss volume and lead-time details for the MC9328MXSCVP10R2.
