MC9328MXLVP20

The MC9328MXLVP20 is an i.MXL-series microprocessor from NXP Semiconductors featuring an ARM920T core running at up to 200 MHz. This single‑core, 32‑bit MPU integrates a broad set of system peripherals and memory interfaces targeted at personal and portable embedded products that require a compact, power‑aware platform with on‑chip system functions.

Designed for embedded applications that demand integrated connectivity and display support, the device combines an SDRAM controller, LCD controller and multiple serial interfaces with power management features to simplify system design and reduce component count.

Key Features

• Core & Performance ARM920T single 32‑bit core running at 200 MHz, providing deterministic processing for embedded control and application tasks.
• Memory & External Interface Integrated SDRAM controller and External Interface Module (EIM) to support external memory and peripheral expansion.
• Display & Multimedia On‑chip LCD controller and video port to support embedded display interfaces and user interfaces.
• Connectivity & Peripherals Built‑in USB device (USB 1.x), I2C, SPI, UARTs, MMC/SD and Memory Stick® host controller support a wide range of storage and communication options.
• System & Timing Includes DMA controller (DMAC), two 32‑bit general purpose counters/timers, PWM, watchdog timer and RTC to handle real‑time and background tasks efficiently.
• Power & Clock Management DPLL clock and power control module for integrated power management and clocking control.

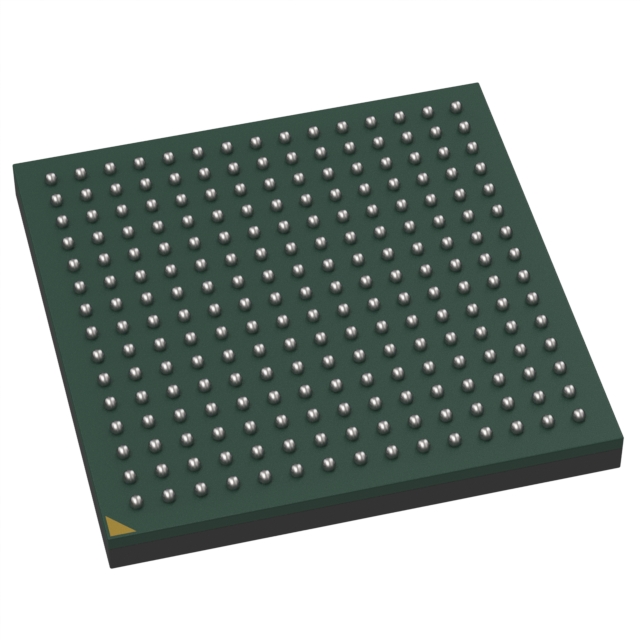

• Package & Mounting 225‑MAPBGA (13 × 13 mm) surface‑mount package (225‑LFBGA) for compact board integration.
• Operating Conditions & Compliance Industry standard operating temperature range of 0 °C to 70 °C and RoHS compliant.

Typical Applications

• Portable Embedded Devices Compact single‑chip solution with SDRAM and storage host controllers for handheld and portable product designs.
• Human‑Machine Interfaces Integrated LCD controller and serial interfaces simplify UI designs for devices requiring display and touch or button control.
• Consumer Multimedia Devices On‑chip USB device and MMC/SD host support local connectivity and removable storage for multimedia content handling.
• General Embedded Control Timers, PWM, watchdog and DMA provide the real‑time control and system reliability needed for a variety of embedded applications.

Unique Advantages

• Highly integrated peripheral set: Reduces bill of materials and PCB complexity by combining memory controllers, display and connectivity modules on‑chip.
• Compact MAPBGA package: 225‑MAPBGA (13×13 mm) footprint enables small form‑factor designs while supporting surface‑mount assembly.
• Power and clock management: Integrated DPLL and power control simplify system power design and clocking requirements.
• Flexible storage and I/O: Native MMC/SD, Memory Stick® host, USB device, SPI, I2C and UART interfaces support a wide range of peripherals and storage options.
• Embedded system reliability: Watchdog, RTC and DMA support robust system operation and deterministic background processing.
• RoHS compliant: Meets environmental compliance requirements for modern electronics manufacturing.

Why Choose MC9328MXLVP20?

The MC9328MXLVP20 positions itself as a compact, integrated microprocessor choice for embedded designers seeking a single‑chip solution with a proven ARM920T core and broad on‑chip peripherals. Its blend of memory controllers, display support and multiple connectivity options makes it well suited to portable and consumer embedded products that benefit from reduced component count and simpler board design.

Manufactured by NXP Semiconductors and supplied in a space‑saving 225‑MAPBGA package, the MC9328MXLVP20 offers a practical balance of performance, integration and system features for teams developing embedded user interfaces, multimedia-enabled devices and general control applications.

Request a quote or submit an inquiry to receive pricing and availability for the MC9328MXLVP20.
