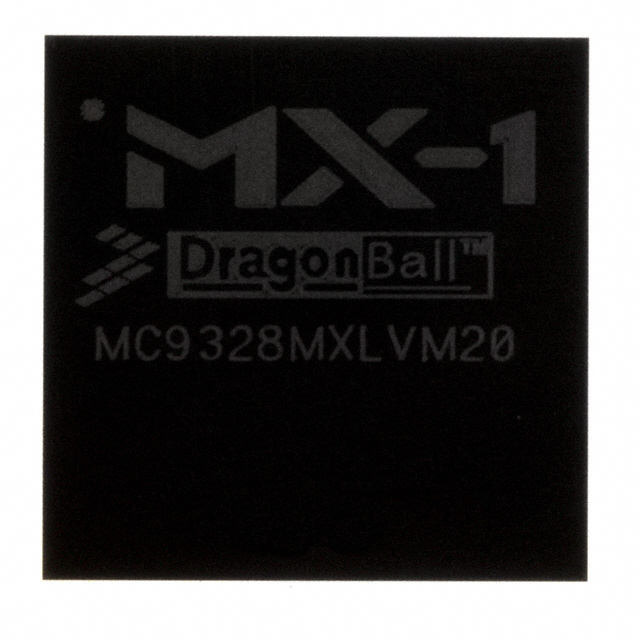

MC9328MXLVM20R2

The MC9328MXLVM20R2 is an NXP Semiconductors i.MXL family microprocessor featuring an ARM920T 32-bit core running at 200 MHz. Designed for personal and portable product markets, the device integrates an ARM9-class CPU with on-chip peripherals to support multimedia and embedded applications.

This single-core processor delivers a balance of processing performance, integrated system functions and power/clock control suitable for designs requiring LCD support, removable storage host interfaces and standard serial connectivity.

Key Features

• Core ARM920T 32-bit processor core operating at 200 MHz, delivering ARM9-class processing for embedded applications.
• Memory and External Interface Integrated SDRAM controller and External Interface Module (EIM) for flexible memory interfacing and system memory designs.
• Display and Multimedia On-chip LCD controller and Multimedia Accelerator (MMA) to support embedded display and media use cases.
• Storage and USB Built-in MMC/SD host controller, Memory Stick® host controller and USB device for removable media and USB connectivity.
• Serial and Peripheral Interfaces Multiple serial interfaces including UARTs, SPI, SSI/I2S and an I2C bus module for peripheral connectivity and audio/serial data streams.
• Timers, RTC and System Control Two general-purpose 32-bit counters/timers, watchdog timer, real-time clock/sampling timer (RTC) and PWM module for system timing and control.
• DMA and Bus Architecture Direct Memory Access Controller (DMAC) and AHB-to-IP bus interfaces (AIPIs) for efficient peripheral-to-memory transfers and system integration.
• Power, Clock and Bootstrap DPLL clock and power control module with power management features and bootstrap mode for flexible system startup and power handling. Operating core voltage range documented in series data.
• Package and Mounting 256-contact PBGA (14 × 14 mm) surface-mount package (256-LFBGA / 256-PBGA) suitable for compact embedded boards.
• Operating Range and Compliance Commercial temperature range of 0 °C to 70 °C and RoHS compliant.

Typical Applications

• Portable multimedia devices — On-chip LCD controller, MMC/SD host and USB device support embedded media playback and user interfaces.
• Handheld and consumer products — ARM920T processing and integrated peripherals enable compact, battery-powered designs for personal devices.
• Embedded HMI controllers — LCD and GPIO support combined with timers and PWM for interactive displays and control panels.
• Removable-storage-enabled systems — MMC/SD and Memory Stick® host controllers simplify designs that require removable media.
• Serial-connectivity devices — UART, SPI, I2C and SSI/I2S interfaces provide flexible connections to sensors, audio codecs and serial peripherals.

Unique Advantages

• Highly integrated peripheral set: Reduces BOM and simplifies board design by combining LCD, USB, MMC/SD, serial buses and DMA on a single chip.
• ARM920T processing at 200 MHz: Provides deterministic 32-bit performance suitable for embedded multimedia and control tasks.
• Flexible memory and external interface support: SDRAM controller and EIM enable straightforward connection to external memories and devices.
• Comprehensive system control features: Timers, watchdog, RTC, PWM and power/clock control aid in robust system management and low-power strategies.
• Compact surface-mount package: 256-PBGA (14×14) package allows dense board layouts for space-constrained products.
• RoHS compliant with commercial temperature range: Meets standard environmental compliance and supports designs targeted at consumer and portable markets.

Why Choose MC9328MXLVM20R2?

The MC9328MXLVM20R2 positions itself as a balanced, integrated solution for designs that require ARM9-class processing alongside a broad set of on-chip peripherals. Its combination of a 200 MHz ARM920T core, display and multimedia interfaces, storage host controllers and multiple serial buses makes it suitable for compact portable and embedded systems where integration and predictable processing are priorities.

Choose this device for projects that benefit from reduced component count, clear memory and peripheral interfaces, and standardized packaging—delivering a focused platform for multimedia-enabled consumer and portable applications backed by NXP’s i.MXL series documentation and feature set.

Request a quote or submit an inquiry to receive pricing and availability information for the MC9328MXLVM20R2 and to discuss how this processor fits your design requirements.
